MOUNTED MEDIA AIR CLEANERS
68-0201—05 2

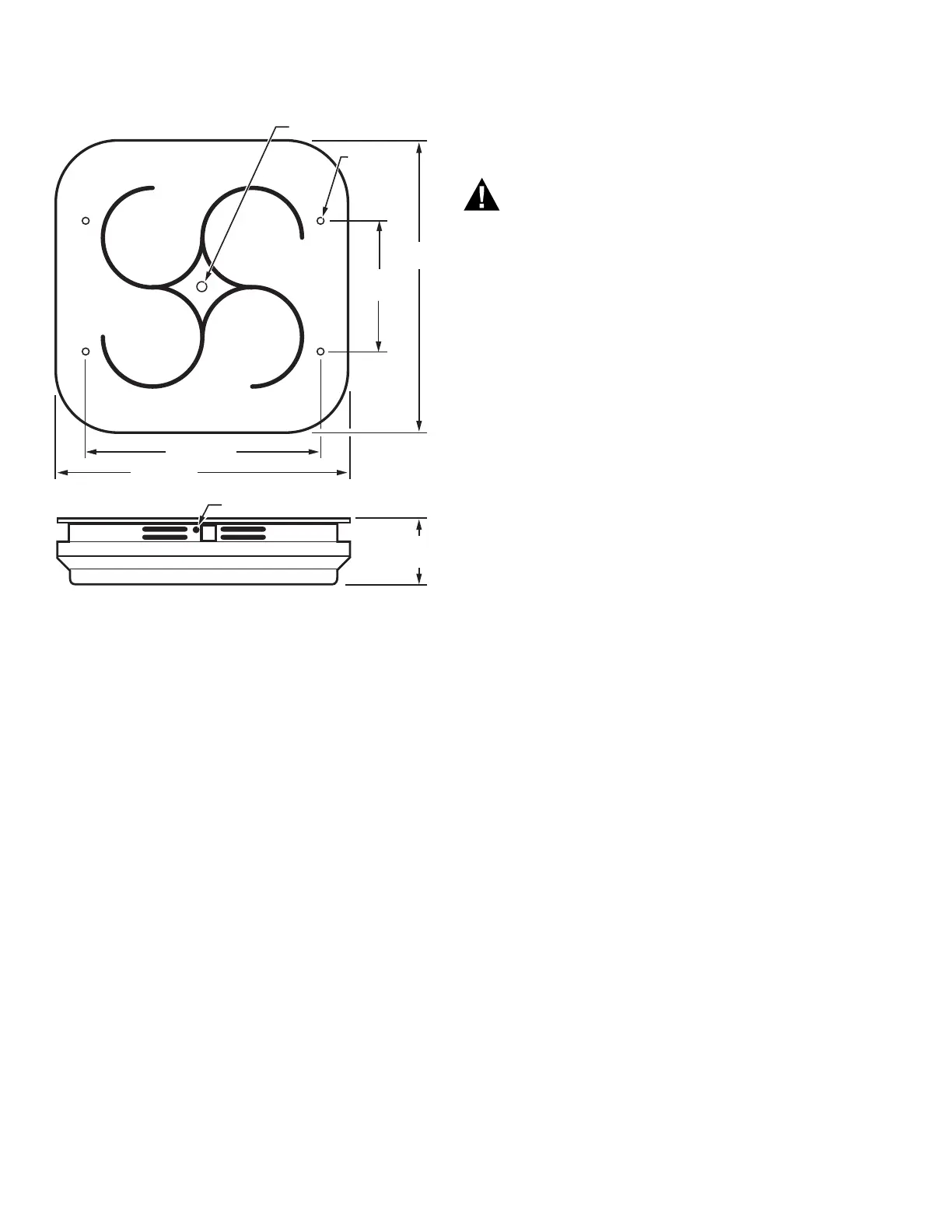

Fig. 1. Approximate dimensions of F115 in in. (mm).
Installation Weight: Approximately 80 lbs (36 kg)
Controls: Direct wired
Sound Level at 3.3 ft (1 m): 52 to 56 dBA
Replacement Parts and Accessories: See Table 2
PLANNING THE
INSTALLATION
Electrical Shock Hazard. Power source can cause
personal injury.
• Do not damage electrical wiring or hidden
utilities when cutting or drilling into the wall or
ceiling.
• Do not install where the media air cleaner can be
reached from a tub or shower.
• Always turn off the power at the service panel.
Lock the panel to prevent the power from being
switched on accidentally when servicing or
cleaning the media air cleaner.
Choose Location
The air cleaner is mounted horizontally and can be used in
almost any air cleaning application. For the most efficient
operation, centrally locate the air cleaner to the area to be
cleaned.
For the best air patterns, avoid discharging the air directly
at an obstruction such as a ceiling beam, decorative
cornice or pillar. The discharge air pattern has a range of
20 to 25 ft (6 to 7.5m) at full speed.
IMPORTANT
Do not install at heights greater than 16 ft (4.8m).
When multiple air cleaners are needed for a large
area, divide the space into equal areas and cen-
trally mount the air cleaners. See Fig. 2.
3/8 IN.
MOUNTING
HOLES (4)
16
(406)
34-3/4
(859)
28-7/8 (724)
34-3/4 (859)
POWER INPUT POINT
9-3/4
(248)
M11688B
POWER INPUT POINT
To Next Page
