F50E DUCT MOUNTED ELECTRONIC AIR CLEANER
68-0072—5
11
1 PROVIDED WITH 136377A REMOTE MOUNT KIT.
QUICK
CONNECT
TERMINAL
SCREW
(1)
SPRING
CLIP
1
1
1
1
1
1
1
CONTACT
TRAY
AIR CLEANER
CABINET (TOP)
CONTACT TRAY
BLACK
LEADWIRE
RED LEADWIRE
WHITE
GROUND
LEADWIRE
CONTACT TRAY
MOUNTING SLOT
CONDUIT
CONNECTOR
FLEXIBLE
CONDUIT
CONTAINING
THREE
SPECIAL
LEADWIRES
RATED
FOR
15KV.
AIR CLEANER
CABINET (FRONT)
SCREWS (2)
M6500
Wiring W8600E
IMPORTANT
Run wires separately from any other current-
carrying wires.
❑ All wiring must comply with local codes and ordinances.
❑ Run 4-wire thermostat cable (up to 18 gauge), independent
of any other current-carrying wires, from the W8600E base
to the terminal strip on the power box of the F50E.

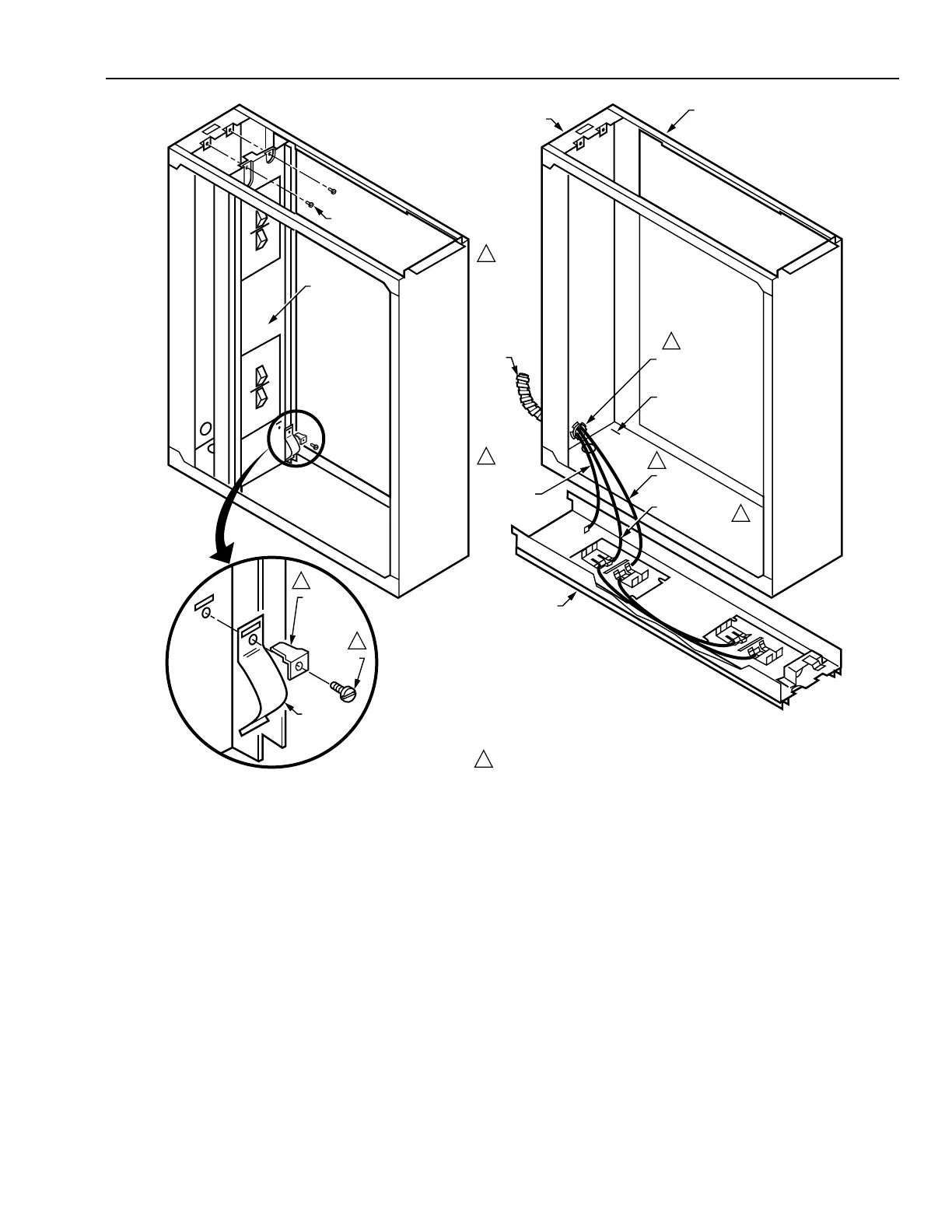

Fig. 18. Install the conduit on the cabinet and make wiring connections to contact tray.
❑ Strip 1/4 in. of insulation from the ends of the wires and
connect them (1 to 1, 2 to 2, 3 to 3, 4 to 4) as shown in
Fig. 22.
❑ Install the W8600E cover and visually check the
installation appearance as shown in Fig. 23.
