68-0137B—2 8
F50F
INSTALLATION

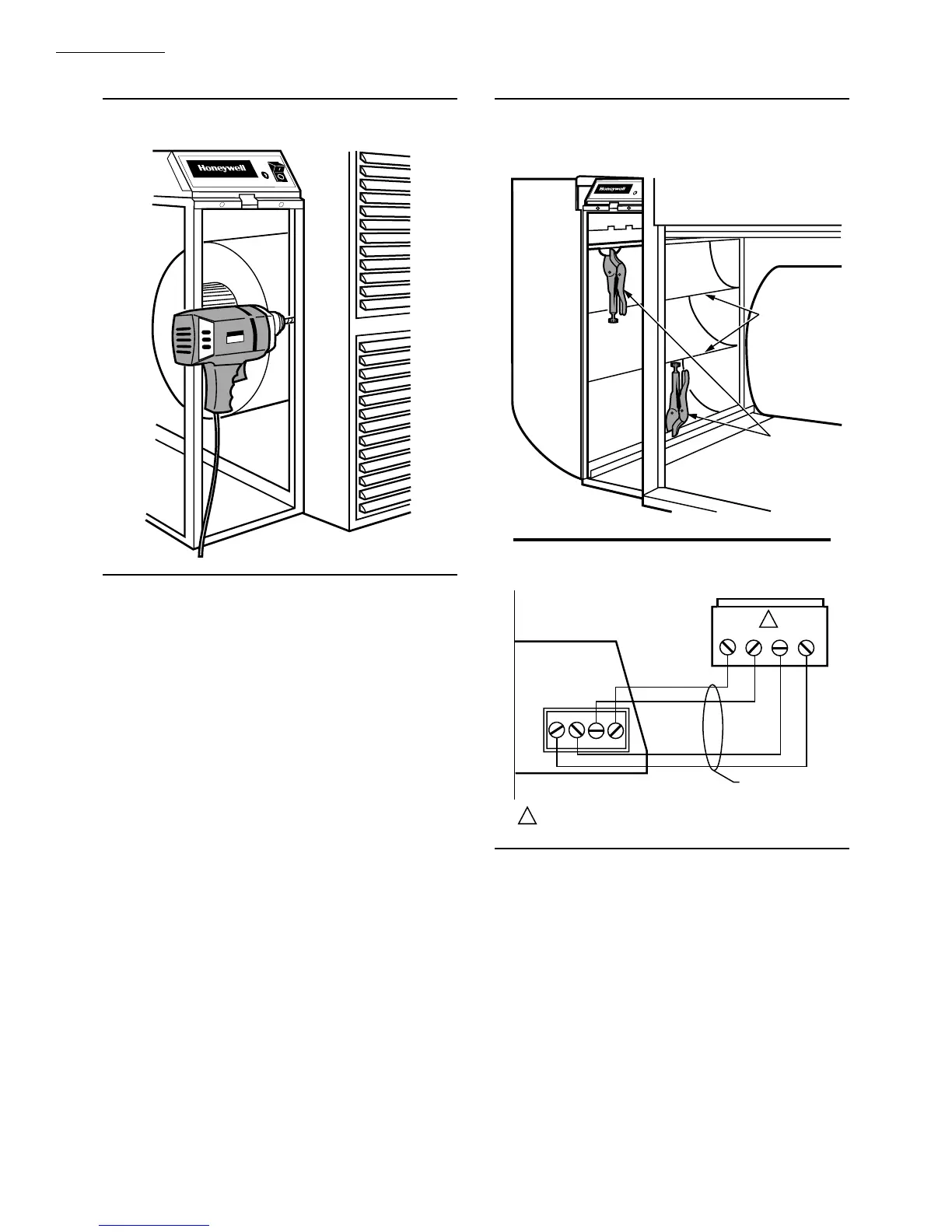

Fig. 6—Fasten cabinet to furnace.
M3678
INSTALL TURNING VANES
■■ Mount turning vanes inside the elbow or angle fitting
that is directly against the air cleaner cabinet.
FASTEN CABINET TO DUCTWORK
■■ Install a transition when the opening in the air cleaner
cabinet and the duct are different sizes. See Fig. 4.
■■ Fasten the other side of the cabinet to the elbow using
sheet metal screws, rivets, or slip joints as appropriate. If
drilling holes, use locking pliers to help hold the unit in
place during drilling. See Fig. 7.
INSTALL OPTIONAL W8600E SOLID STATE
PERFORMANCE INDICATOR
Choose a location for the W8600E when it is part of the
installation. The indicator is designed to mount next to the
thermostat, or in any convenient visible area (such as
utility room) where it can be seen as it monitors the air
cleaner performance. It shares no electrical connections
with the thermostat. To install, see Fig. 8 and refer to the
Installations Instructions, form 69-0410, included with
the indicator.
W8600E Location
The styling of the W8600E is designed to blend with
the T8600 family of microelectronic Chronotherm
®
Thermo-
stats. A special mounting template is included in the bag
assembly for mounting next to the T8600. The W8600E
can be mounted in any other convenient location in the
living area or the furnace room. It shares no electrical
connections with the thermostat.
Fig. 7—Connect ductwork to air cleaner. Note
turning vanes. Locking pliers hold duct to air
cleaner cabinet during installation.
M3677
LOCKING
PLIERS
TURNING
VANES
Fig. 8—Schematic for wiring W8600E to F50F.
M5629A
W8600E
TERMINAL STRIP
ON POWER BOX
FOUR-WIRE
THERMOSTAT CABLE
1
2
3
4
GREEN
YELLOW
RED
BLUE
G
YRB
1
2
3
4
G
Y
R
B
1
1 CONNECT W8600E TERMINALS FIRST.
Make certain the location makes it convenient for the
homeowner to observe the device LEDs.
Mounting W8600E
The following mounting instructions assume that the
W8600E will be mounted next to a T8600 Thermostat. If
installing the wall panel in another location, modify the
procedure to fit the installation.
■■ Remove the cover from the W8600E.
■■ Hold the mounting template (included in the bag as-
sembly) next to the T8600. See Fig. 9.
■■ Hold the base next to the template and mark holes for
screw anchors and access hole for 4-wire thermostat cable
from the terminal strip on the power box to the W8600E
base.
