INSTALLATION
■■ Remove the W8600E base and drill the holes. Install the
anchors and screws so the base is mounted firmly on the
wall at the correct distance from the T8600.

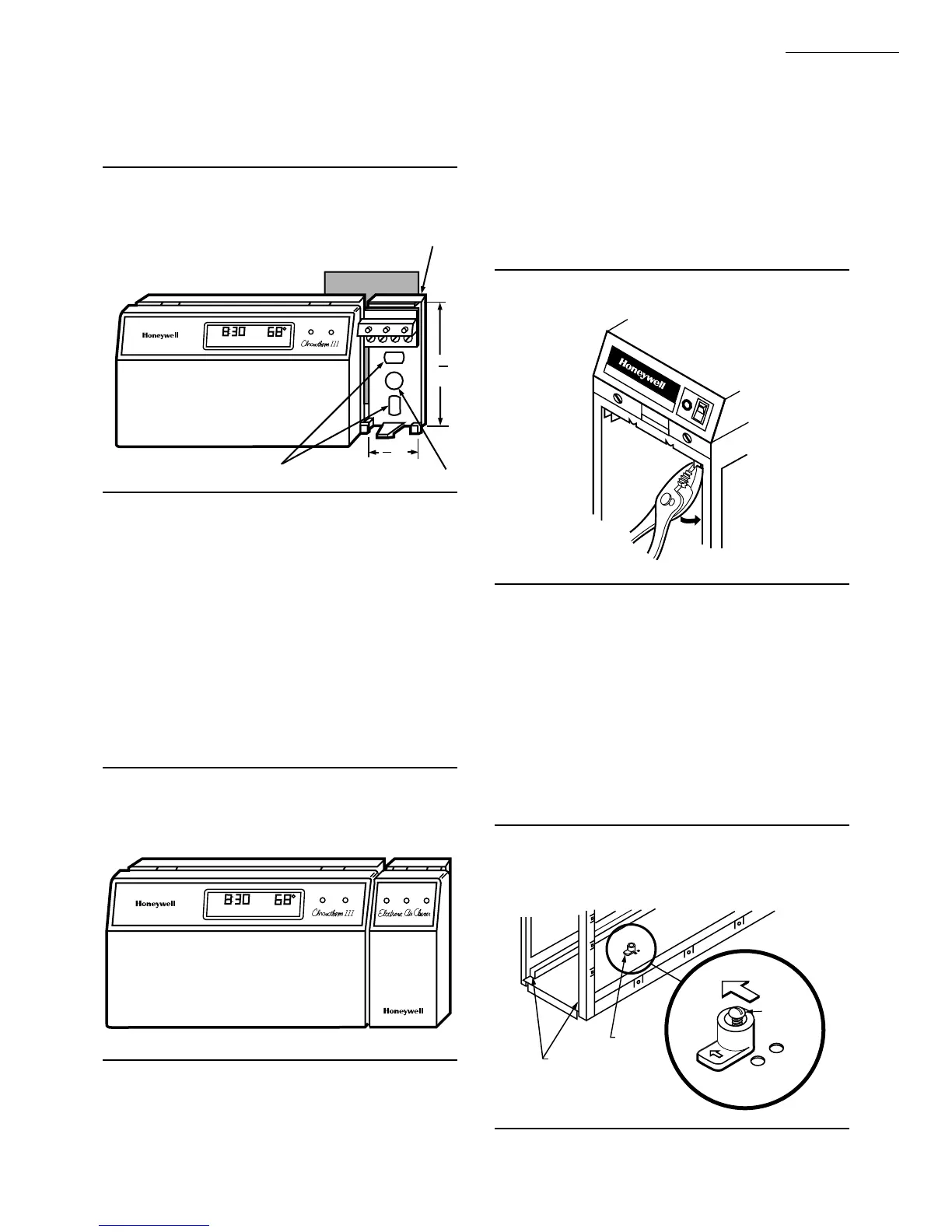

Fig. 9—Mounting W8600E indicator next to
T8600 Thermostat, dimensions in in. [mm].
M6167
ENRG. SAV.
SYSTEM
HEAT ON
MON
WAKE
AM
T8600 THERMOSTAT
MOUNTING
TEMPLATE
W8600E
BASE
MOUNTING HOLES
WIRING HOLE
1
5
8
11
16
3
[94]
[42]
Wiring W8600E
IMPORTANT: Run wires separately from any other cur-
rent-carrying wires.
■■ All wiring must comply with local codes and ordinances.
■■ Run 4-wire thermostat cable (up to 18 gauge), indepen-
dently of any other current-carrying wires, from the W8600E
base to the terminal strip on the power box of the elec-
tronic air cleaner.
■■ Strip 1/4 in. of insulation from the ends of the wires and
connect them (1 to 1, 2 to 2, 3 to 3, 4 to 4) as shown in Fig. 8.
■■ Install the W8600E cover and visually check the instal-
lation as shown in Fig. 10.
Fig. 10—Completed installation of T8600 with
W8600E.
SEAL JOINTS
■■ Seal all joints in the return air system between the air
cleaner and the furnace to prevent dust from entering the
clean airstream.
DISABLE UNUSED PREFILTER GUIDE
■■ Crimp the end of the downstream (closest to the furnace)
prefilter guide to prevent incorrect prefilter installation
following cleaning. See Fig. 11.
Fig. 11—Crimping prefilter guide.
M5640
ELECTRONIC AIR CLEANER
POSITION CELL KEY
The electronic cell must always be installed so the
ionizer section is on the upstream side. A factory-installed
cell key on the bottom of the cabinet allows the cell to be
inserted in only one direction. As long as the arrow molded
into the plastic key points in the same direction as the
airflow, the ionizer will always be on the upstream side.
If the position of the key must be reversed, proceed as
follows:
1. Remove the electronic cell.
2. Remove the screw holding the cell key in place. See
Fig. 12.
Fig. 12—Position of cell key determines orienta-
tion of cell (arrow on key must point down-
stream).
ENRG. SAV.
SYSTEM
ON. WASH
CHECK
HEAT ON
MON
WAKE
AM
M6166
PREFILTER GUIDES
CELL KEY
M5639
CELL
KEY
ALTERNATE
HOLES FOR
KEY
CELL KEY
SCREW
DOWNSTREAM
AIRFLOW
To Next Page
