Honeywell F52F - Removing the electronic cell(s) and prefilter

69-0419—2
Removing the
electronic cell(s)
and prefilter

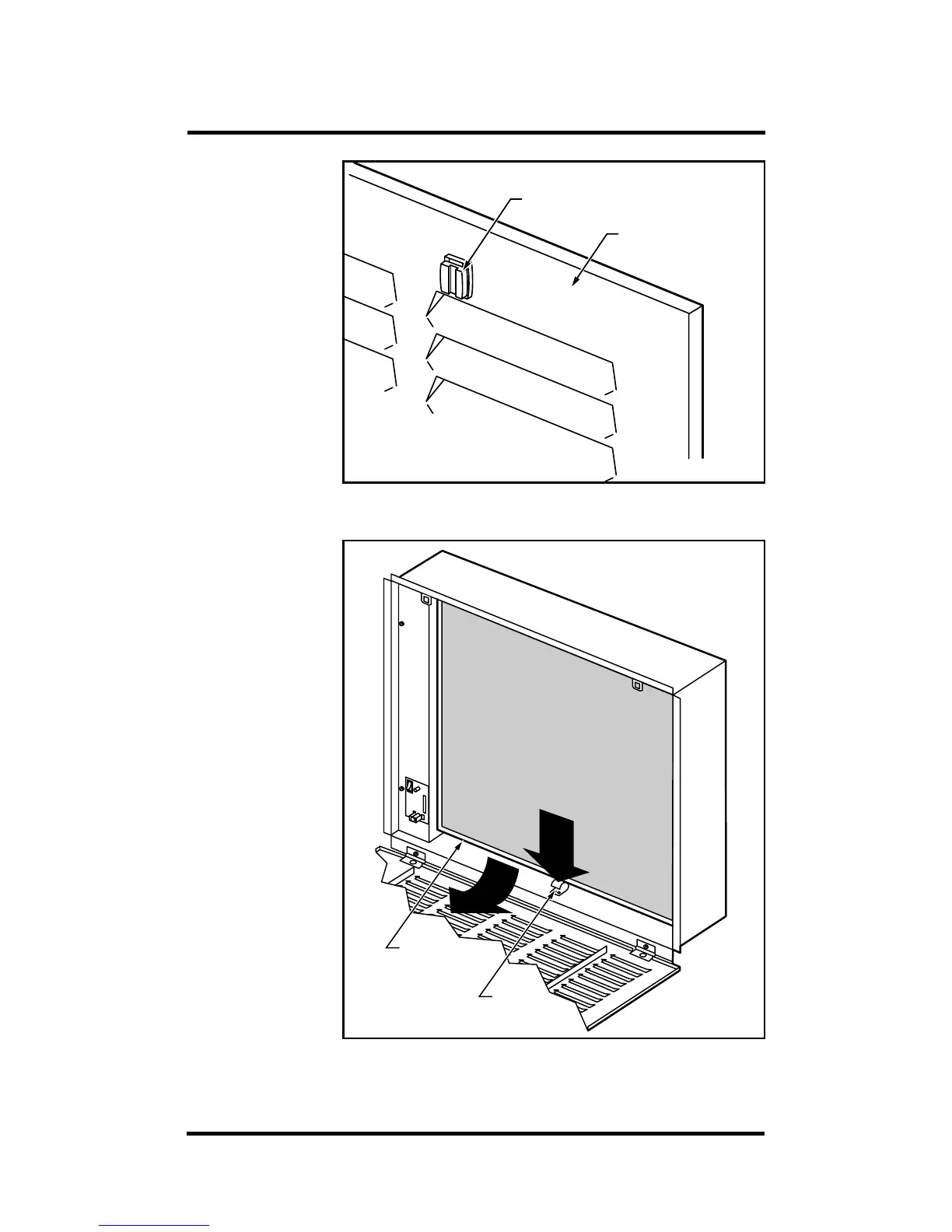

TURN LATCH
M7814
F52 ACCESS
DOOR
STEP 1
Open the door by turning the two door latches.
A
B
SPRING
CLIP
PREFILTER
SCREEN
M7812
STEP 2
The prefilter is held in place by a spring clip and a
U-shaped channel. Lift the prefilter at the spring clip
end and slide it out of the U-shaped channel.
