Honeywell F57A Simple Manual

F57A,B FLUSH-MOUNTED COMMERCIAL ELECTRONIC AIR CLEANER
68-0083-7 Revised 11-07
9
SUSPENDED
CEILING
F57B
BE SURE TO TWIST THE SUPPORT WIRE A MIINIMUM OF FOUR TIMES TO PROPERLY BEAR WEIGHT.
THERE MUST BE 14 IN. (356 MM) BETWEEN SUSPENDED CEILING AND TRUE CEILING.
SUPPORT 
SHOULDER
POSITIONS
REINFORCED
T-BAR
VINYL FLANGE
MOUNTING
SPACER (1 OF 4)
SUPPORT 
SHOULDER
(1 OF 4)
BEND TABS TO 
HOLD MOUNT 
ON AIR CLEANER
PLACE WIRE SUPPORTS AS CLOSE AS POSSIBLE 
TO F57B SUPPORT SHOULDER POSITIONS, 
APPROXIMATELY 1 IN. (25 MM) FROM ENDS.
T-BAR/DROP CEILING SUPPORT SYSTEM
24 IN.
(610 MM)
24 IN.
(610 MM)
M5675
SUSPENDED
CEILING
TRUE CEILING
1
1
1
1
2
1
2
IF NEEDED, REMOVE T-BAR 
TO CREATE 24 X 24 IN.
(610 X 610 MM) SPACE.
F57B

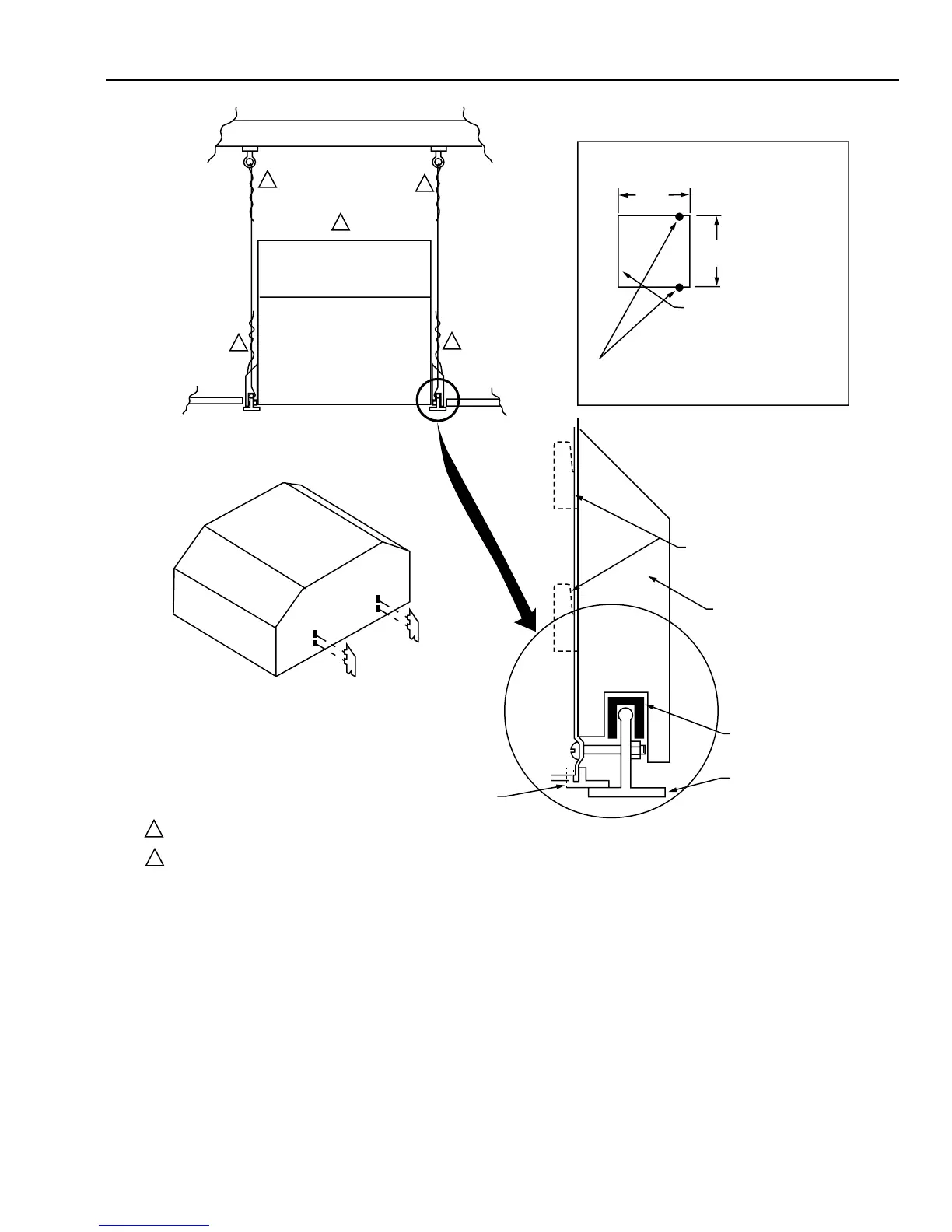

Fig. 6. Typical F57B mounting procedures.
• Reinforce the suspended ceiling T-bars with the wire,
placing the wires to evenly distribute the F57 weight.
Securely attach wires to both the suspended ceiling and
the true ceiling, and to the T-bars. Twist the wire at least
four times.
• Place F57 into cleared area with grille side facing the
floor. Lift F57 into space until grille side is above
suspended ceiling level. Reach in and attach the rubber
mounting spacers to the T-bars at the mounting shoulder
locations.
• Attach four support shoulders to the F57. Bend the tab on
the mounting shoulders to secure them to the F57.
• Attach vinyl flanges to the bottom of the F57 frame to
cover any space that appears between the F57 and the
suspended ceiling.
• Settle the F57 on the mounting spacers on the reinforced
T-bars.
• Locate the holes just above the four vinyl flanges. Drill
1/4-in. (6.4 mm) holes through the T-bars at these
locations. Slip a panhead bolt through each hole, and
fasten with a self-locking nut.
