MOUNTING
Before proceeding to the next step:
I secured the humidifier to the duct as instructed.
Bypass mounting is complete. Go to page 11.
Bypass Model Installation
Humidifier 69-2413EF—01
9

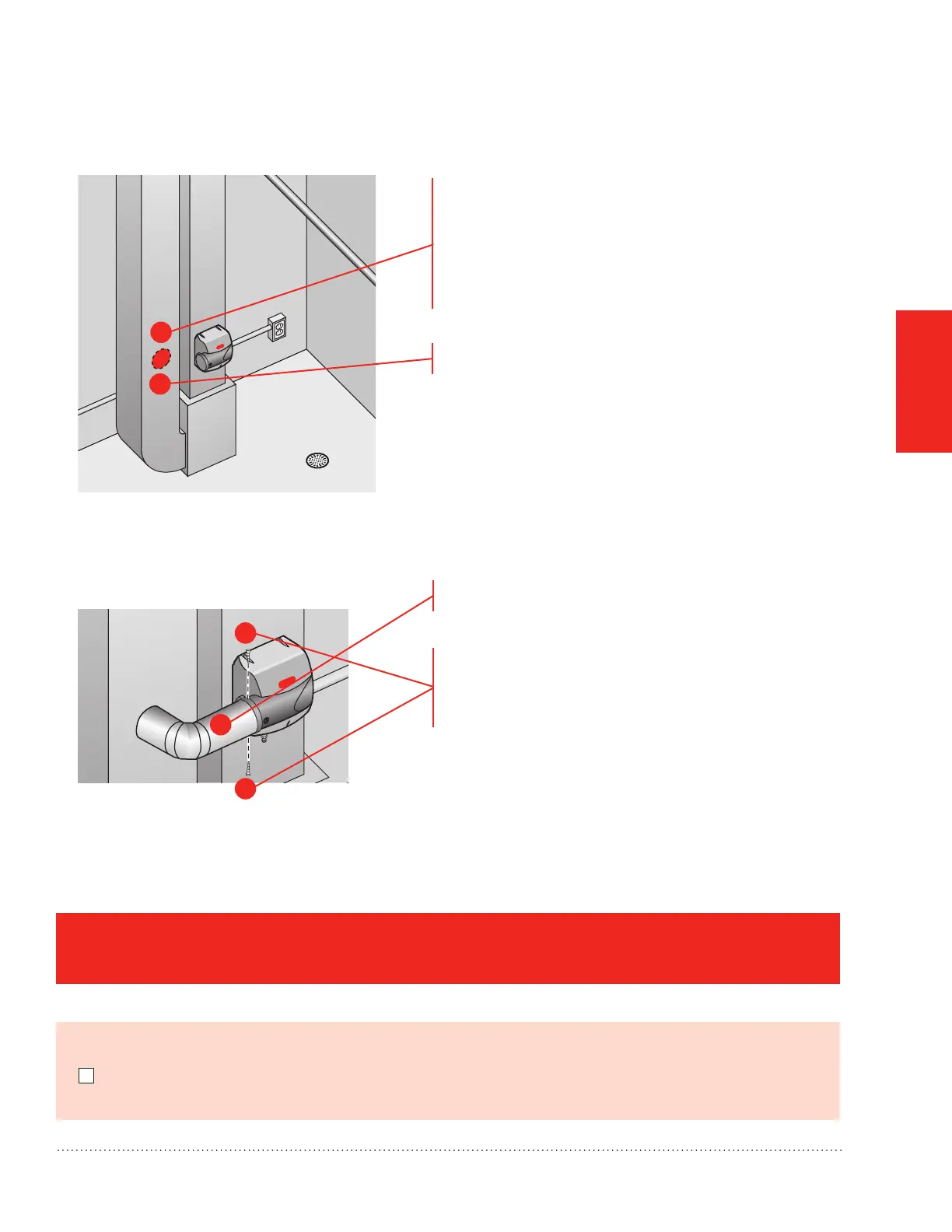

STEP FIVE: Bypass Duct Installation
On the duct opposite the humidifier Bypass install, cut
a 6-in. diameter duct hole.
If the humidifier is on the supply duct, the 6-in. s
diameter hole should be on the return.
If the humidifier is on the return duct, the 6-in. s
diameter hole should be on the supply.
Secure a 6-in. round duct starter collar into the 6-in.
duct hole.
Use rigid or aluminized flexible 6-in. duct to connect
the starter collar to the humidifier bypass port.
Secure the duct to the humidifier port with self-drilling
sheet metal screws using the pre-drilled holes on the
bypass port. For added seal, wrap sheet metal tape
around the duct to port connection point.
MCR29933
MCR29878
2
2
2
1
1
