Honeywell HE120 Installation Instructions

HE120 BY-PASS DRUM HUMIDIFIER
69-1860EF—01 10

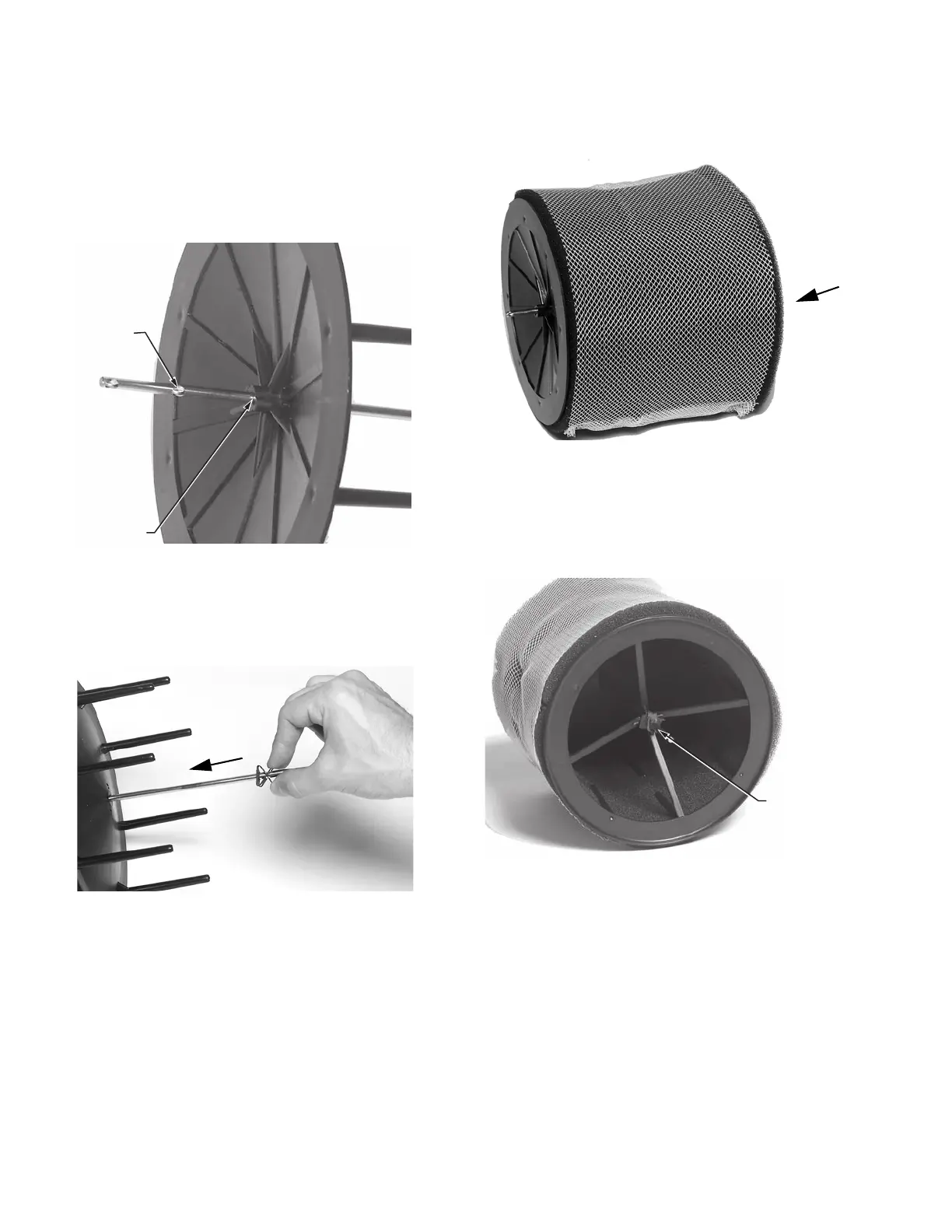

STEP 5: ASSEMBLE HUMIDIFIER
DRUM
1. Slide Closed Drum End over Drum Shaft with round
posts facing away from metal tabs. See Fig. 16. (Slots in
cone end should rest over metal tab.)
Fig. 16. Installing Closed Drum End.
2. Secure Closed Drum End to Drum Shaft using Spring
Retainer. See Fig. 17. (Squeeze spring ends slightly to
install.)
Fig. 17. Installing Spring Retainer.
3. Slide Humidifier Pad over closed drum end posts.
See Fig. 18.
Fig. 18. Installing Humidifier Pad.
4. Slide Open Drum End over Drum Shaft with round posts
inside Humidifier Pad. See Fig. 19.
5. Secure Open Drum End to shaft using Spring Retainer.
(Squeeze spring ends slightly to install.)
Fig. 19. Installing Open Drum End.
METAL
TAB
SLOT IN
CLOSED
DRUM END
M13622
SPRING
RETAINER
M13623
