Honeywell HE120 Installation Instructions

HE120 BY-PASS DRUM HUMIDIFIER
69-1860EF—01 2

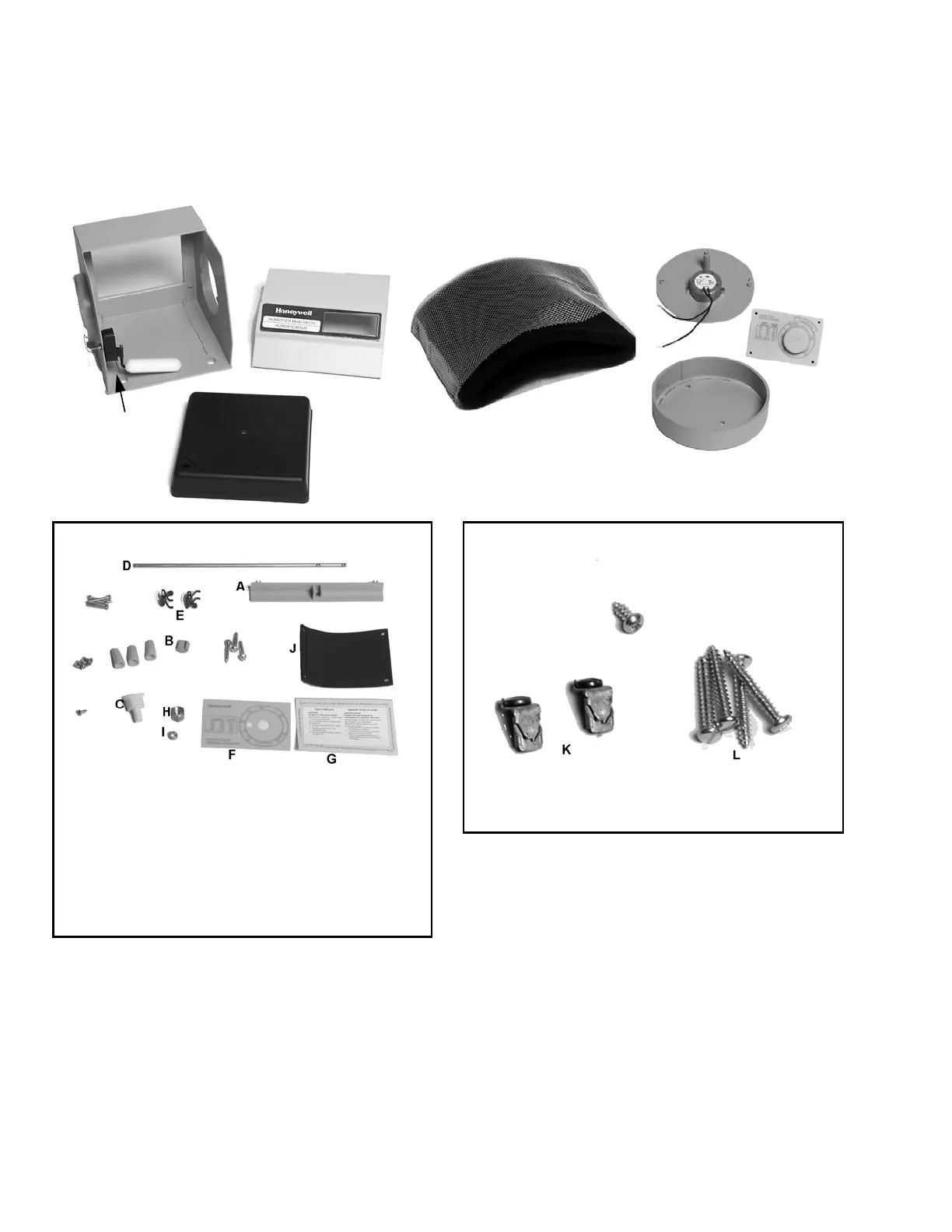

UNPACKING THE UNIT
This box contains all of the parts necessary to install your new Honeywell HE120 Humidifier in most installations. Before
continuing, please take the time to familiarize yourself with these components.
• Humidifier Housing
• Float Valve
(Installed on
Humidifier
Housing)
• Humidifier Cover
• Water Pan
• Humidifier Pad
• Motor Cover
• Motor Plate
• Humidistat
• Humidifier Accessory Bag (Plastic Bag)
A Bearing Bracket
B Valve Hole Plug
C Drain Fitting
D Drum Shaft
E Spring Retainer (x2)
F Humidistat Label
G Humidistat Template
H Brass Compression Nut
I Brass Compression Sleeve
J Humidistat Gasket
• Humidistat Installation Kit (Small Bag inside
Humidifier Accessory Bag)
K Screw Terminals (x2)
L #6 x 1 in. Sheet Metal Screw (x4)
