Honeywell HE120 Installation Instructions

HE120 BY-PASS DRUM HUMIDIFIER
69-1860EF—01 12

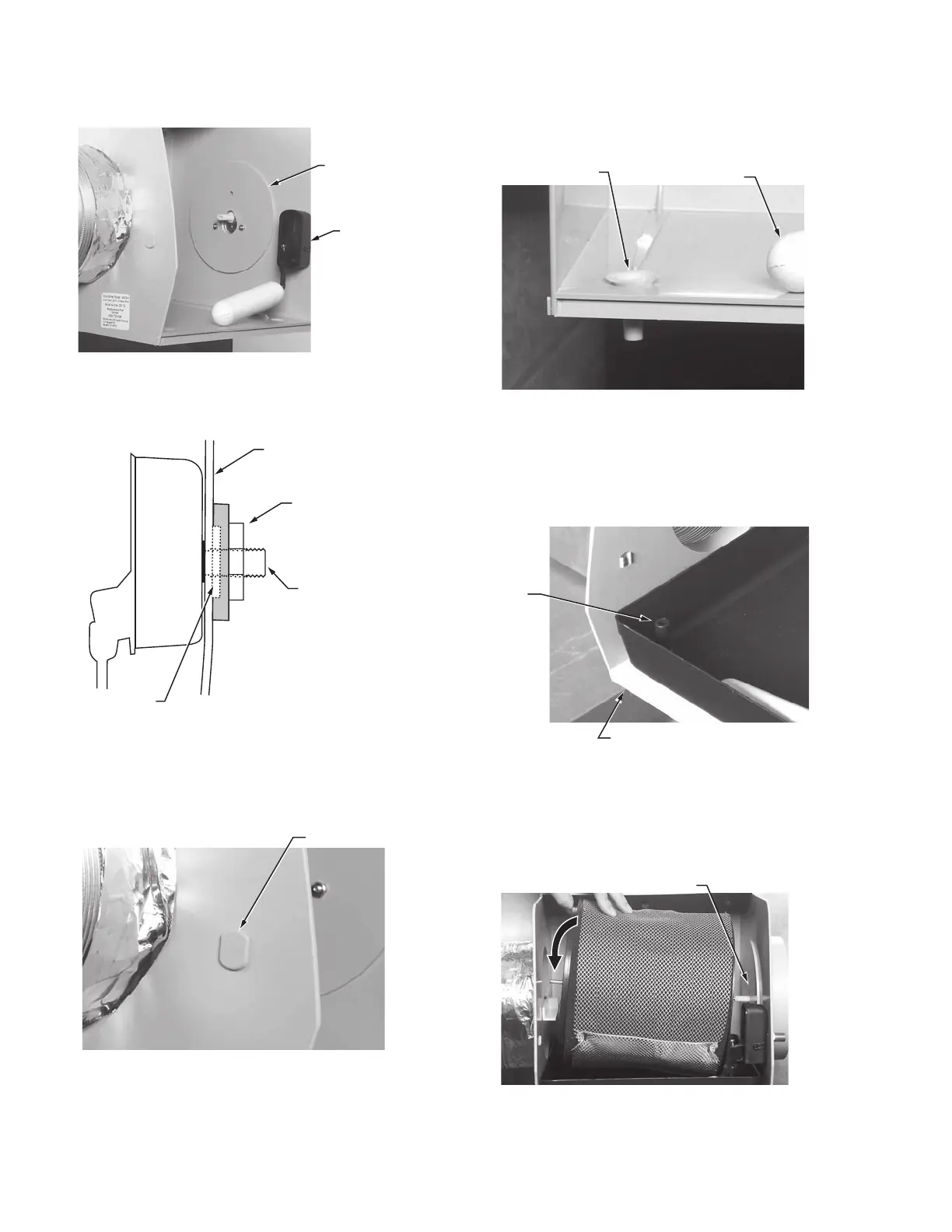

Fig. 24. Correct Float Valve position.
Fig. 25. Re-installing Float Valve.
7. Insert the Valve Hole Plug in the “D” hole on the oppo-
site side of the Float Valve. See Fig. 26.
Fig. 26. Installing Valve Hole Plug.
8. Insert the Drain Fitting into the bottom of the Humidifier
on the same side as the Bypass Duct. See Fig. 27.
Fig. 27. Installing Drain Fitting.
9. Place the Water Pan in the Humidifier Housing so Over-
flow Tube is above previously installed Drain Fitting.
See Fig. 28.
Fig. 28. Installing Water Pan.
10. Install Humidifier Drum by inserting motor coupling end
first, then snapping it into the bearing. See Fig. 29.
Fig. 29. Installing Humidifier Drum.
MOTOR
FLOAT VALVE
M13626
FLOAT VALVE
WASHER
(RECESSED SIDE)
FLOAT VALVE
RETAINING NUT
FLOAT VALVE STEM
HUMIDIFIER
HOUSING WALL
M13616
VALVE HOLE PLUG
M13627
DRAIN
FITTING
FLOAT
M13628
M13629
OVERFLOW
TUBE
DRAIN FITTING
(UNDERNEATH HUMIDIFIER HOUSING)
MOTOR
M13630
