HE105, HE205 WHOLE HOME BYPASS HUMIDIFIER
33-00229EF—01 2
Safety Definitions
These safety terms identify information you must read
prior to installing or operating the humidifier.
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not
avoided, could cause bodily injury or property
damage.
Safety Precautions
Make sure you read and understand the following safety
hazards before installing, using, or working with the
humidifier:
WARNING
Serious Personal Injury Hazard.
Can cause electrical shock and injury from moving
parts.
Disconnect power and shut off water supply before
removing cover.
WARNING
Hazardous Voltage
Can cause personal injury or equipment damage.
Do not cut or drill into any air conditioning or
electrical accessory.
CAUTION
Chemical Hazard.
Can cause personal injury or equipment damage.
Do not use any line connected to an air conditioner.
Do not use gas line.
CAUTION
Temperature and Static Pressure Hazard.
Can cause property or equipment damage.
Locate humidifier where ambient temperature is
between 41 and 113 °F (5 to 45 °C).
Do not install humidifier where freezing
temperatures could occur.
Be sure supply plenum static pressure is no greater
than 0.4 in. wc and water pressure is no greater
than 120 psi.
CAUTION
Sharp Edges Installation Hazard.
Can cause personal injury.
Wear gloves and safety glasses.
IMPORTANT
Read and save these instructions.
Determining Best Location for Humidifier
• Select a location for the humidifier on the supply (warm
air stream) duct. See Fig. 1 for examples. Return duct
mounting is acceptable if there are space restrictions
on the supply duct. If you are mounting the humidifier
on the return duct, simply swap “return duct” for
“supply duct” throughout these instructions.
• Select a location that cannot damage the air
conditioner A-coil during installation.
• Do not locate the humidifier on the furnace body.
• Mount the humidifier in a conditioned space to prevent
freezing.
• Mount the humidifier at least 3 in. (78 mm) above the
furnace body to allow adequate space for the solenoid
valve and drain line.

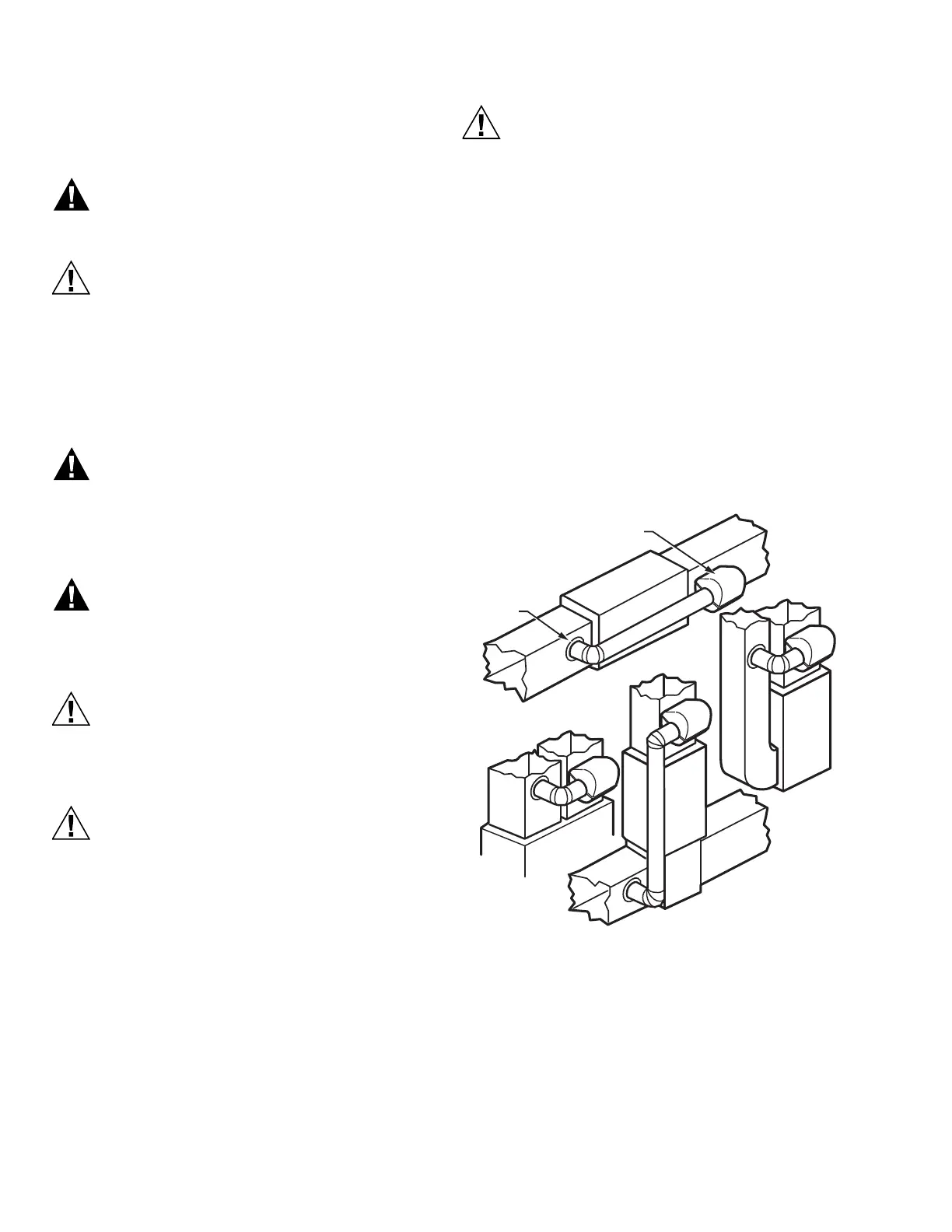

Fig. 1. Typical humidifier installation locations.
M12248D
HORIZONTAL
DOWN
FLO
LOWBOY
HIGHBOY
HUMIDIFIER
BYPASS
COLLAR
