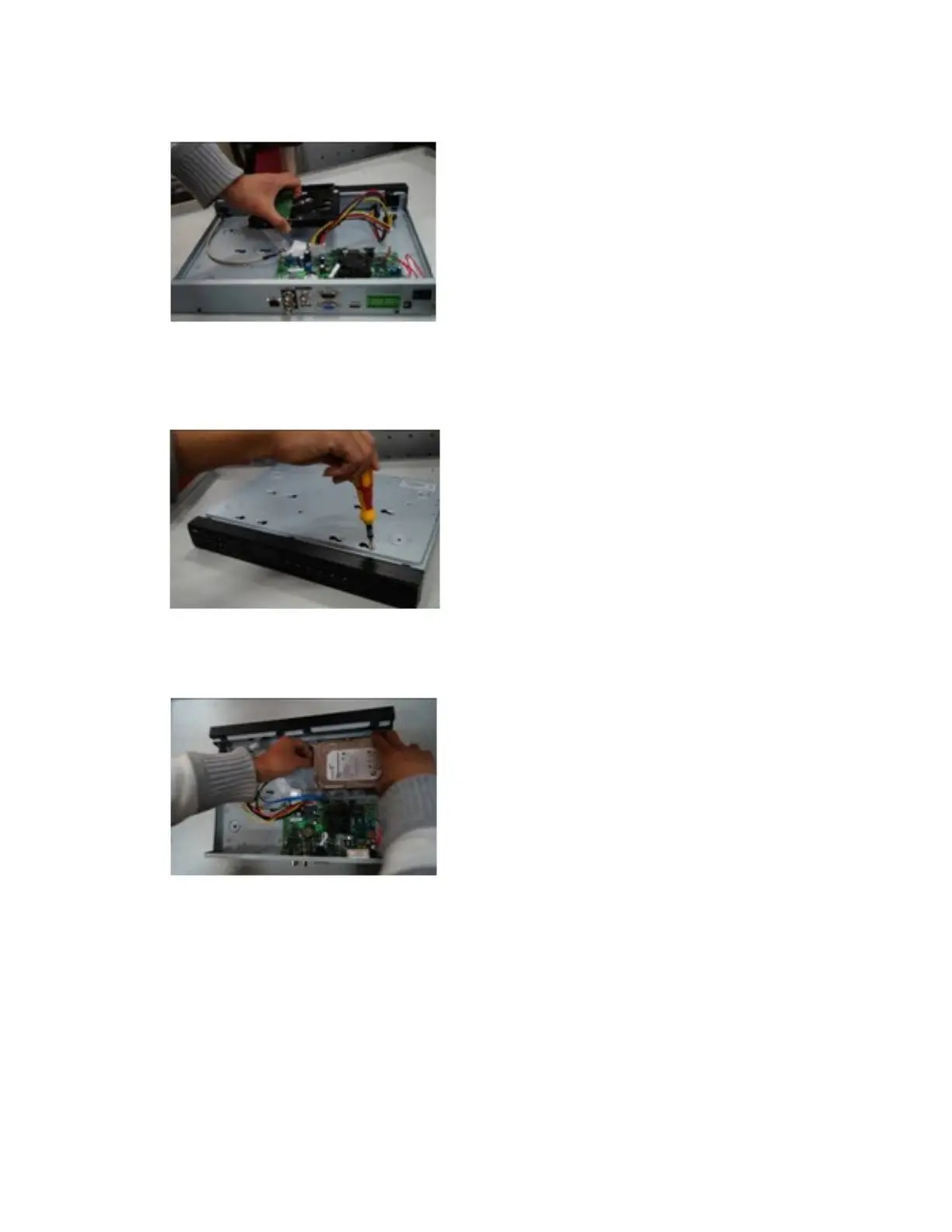

Figure 15-3 Placing the HDD
4. Turn the NVR upside down, and then turn the screws to firmly attach the HDD to the NVR
housing.
Figure 15-4 Securing the HDD to the NVR Housing
5. Connect the HDD cable and power cable.
Figure 15-5 Connecting the HDD and the Power Cable
6. Replace the NVR cover.
