Expanded PTZ Control Panel

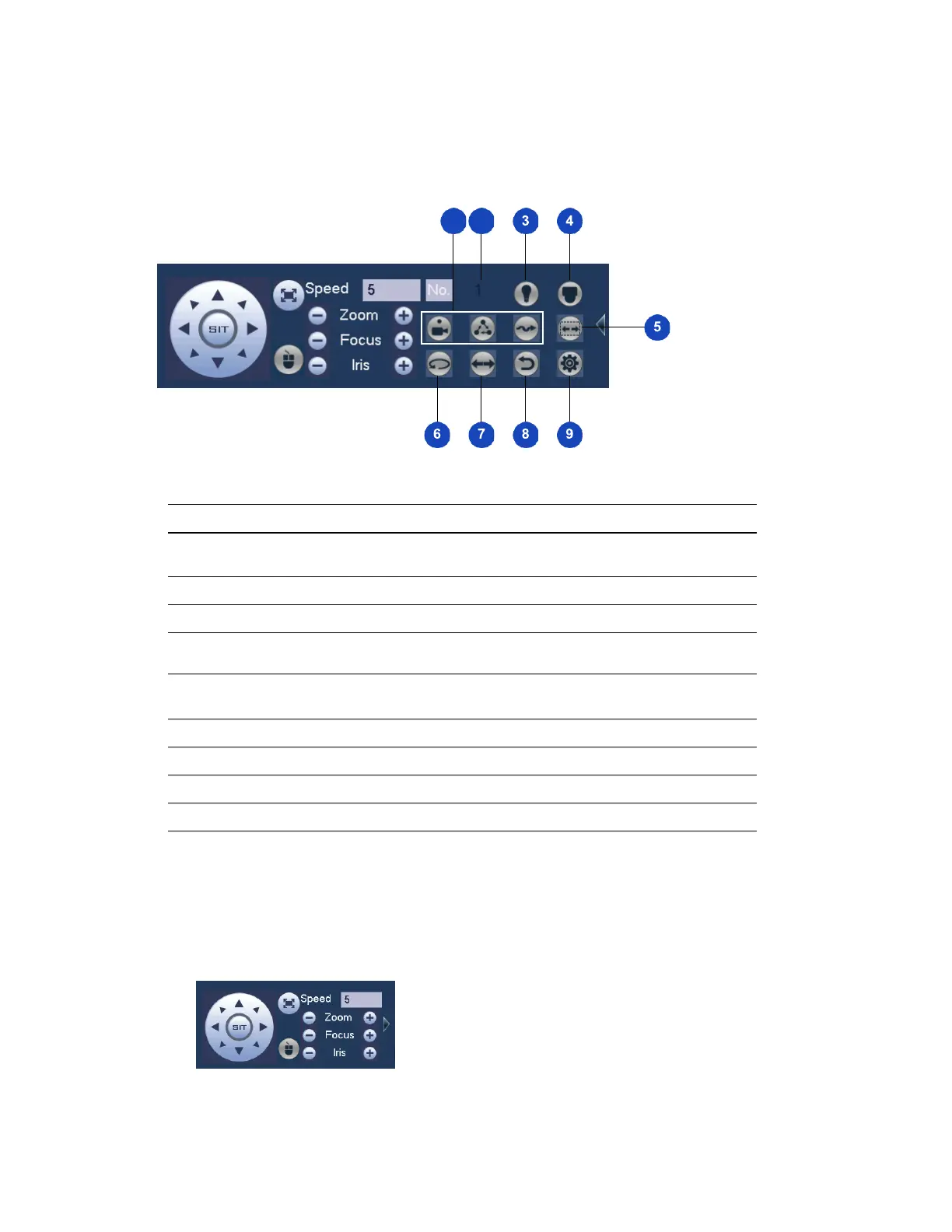

Figure 3-6 Expanded PTZ Control Panel
Table 3-4 Expanded PTZ Control Panel
#
Name Function
1
Preset, Tour,
Pattern
Configure/call PTZ functions.
2
No.
Enter number of PTZ function to call.
3
Aux
Call auxiliary functions.
4
Enter Menu
Enable up-the-coax OSD menu configuration for non-
PTZ camera.
5
AutoScan
Cause camera to continually pan between two points
that you have defined.
6
AutoPan
Cause camera to continually rotate 360 degrees.
7
Flip
Cause camera image to flip 180 degrees.
8
Reset
Restore default settings.
9
Aux Config
Configure auxiliary functions.
To display the PTZ control panel
1. Right-click anywhere on the screen to display the shortcut menu.
2. Click PTZ. The PTZ control panel opens.
Figure 3-7 PTZ Control Panel
3. To expand the PTZ control panel, click the arrow at the right side of the panel.
1 2
