Honeywell HPFF12 Instruction Manual

Installation Chassis-Mounting in FACP Cabinets
18 HPFF12 NAC Expander — P/N 53576:B3 10/1/2018
See power-limited wiring “HPFF12CM(E) Power-Limited Wiring, EQBB-D4 Backbox” on page 27.
h
p
f
f
1
2
c
m
m
n
t
-
e
q
d
s
i
z
e
.
w
m
f
Do not mount
HPFF12CM
in top row.
The HPFF12CM
chassis-mounting
direction must be
alternated for proper
heat dissipation.
Battery must be on left
side of bottom row.
Attach
HPFF12CM
module with four
#8-32 keps nuts.
Secure top of
battery well with
two #8-32 keps nuts.

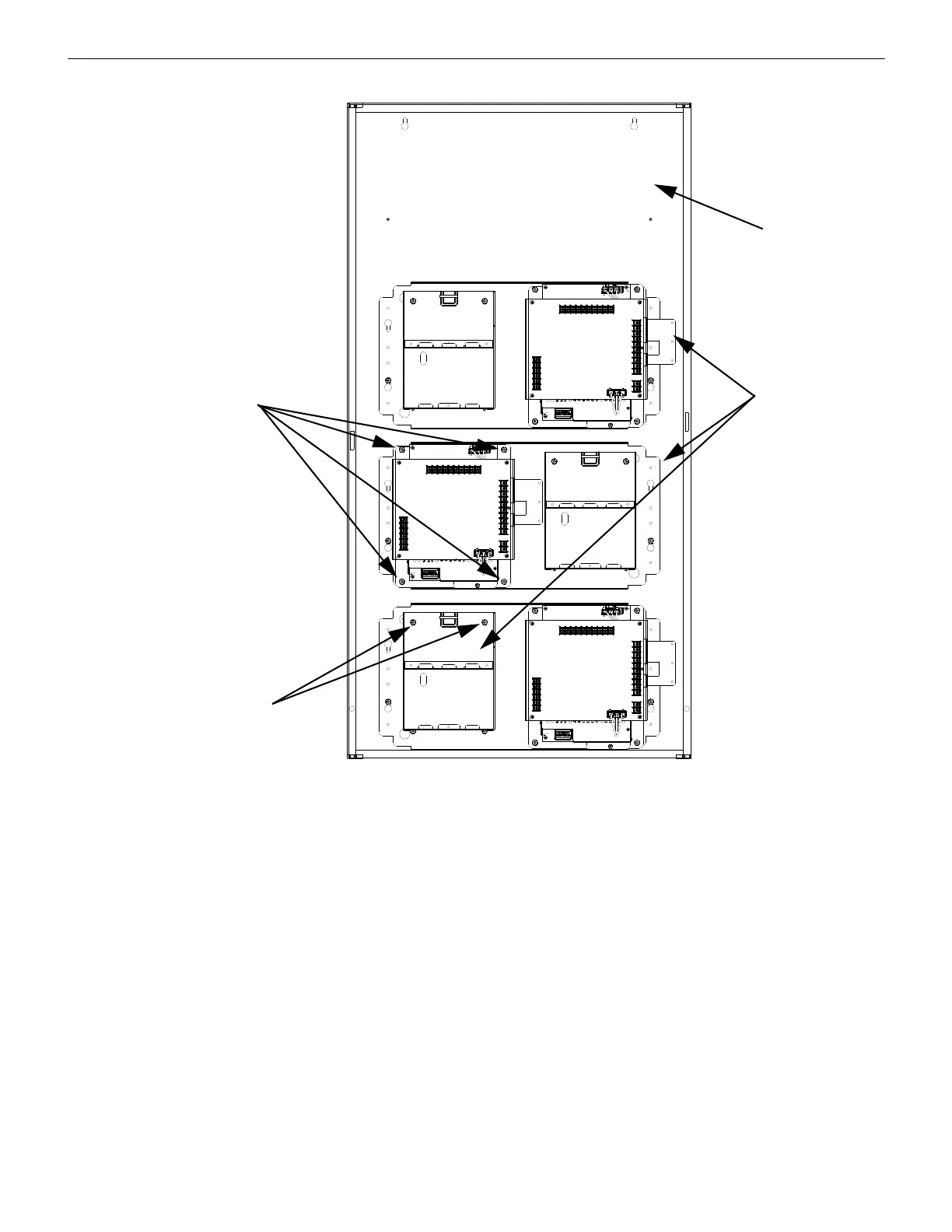

Figure 2.7 HPFF12CM: Chassis-Mounting in Backbox
(EQBB-D4 Shown)
