HPFF12 NAC Expander — P/N 53576:B 11/24/2010 23

Chassis-Mounting in FACP Cabinets Installation

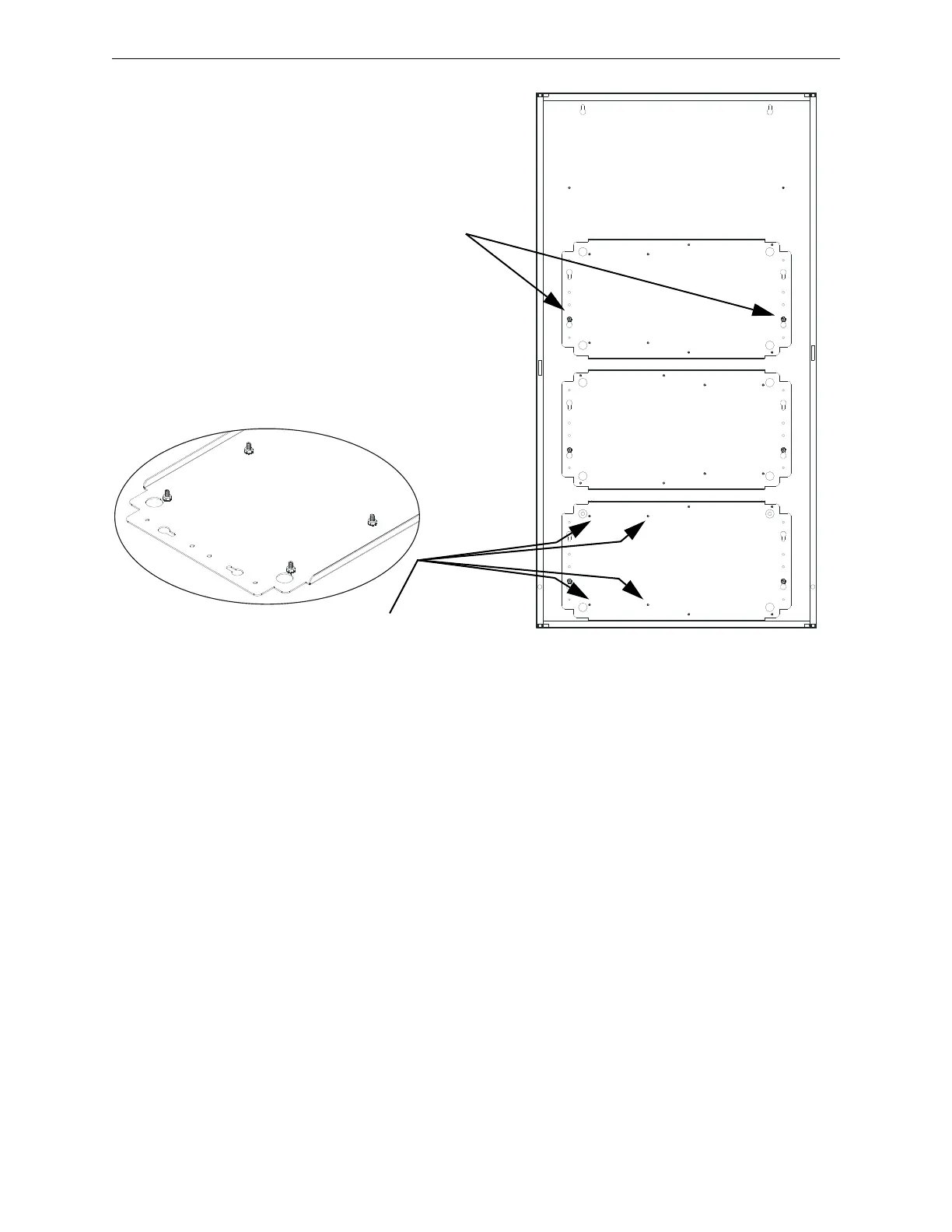

Figure 2.6 Installing Chassis-Mounting Plates onto Backbox (EQBB-D4 Shown)

hpff12cm-plate-mtg.wmf, hpff12cm-bottom-spacers.wmf

Attach each chassis-

mounting plate to

backbox with two

#8-32 kep nuts.

For the bottom chassis-mounting plate only:

Install four #8-32 kep nuts onto studs

where battery well is to be located.

NOTE: This can be done before or after

attaching chassis-mounting plate to backbox.

Note: Two-row and three-row mounting is equivalent.
