HPFF12 NAC Expander — P/N 53576:B 11/24/2010 25
Chassis-Mounting in FACP Cabinets Installation
See power-limited wiring “HPFF12CM(E) Power-Limited Wiring, EQBB-D4 Backbox” on
page 33.

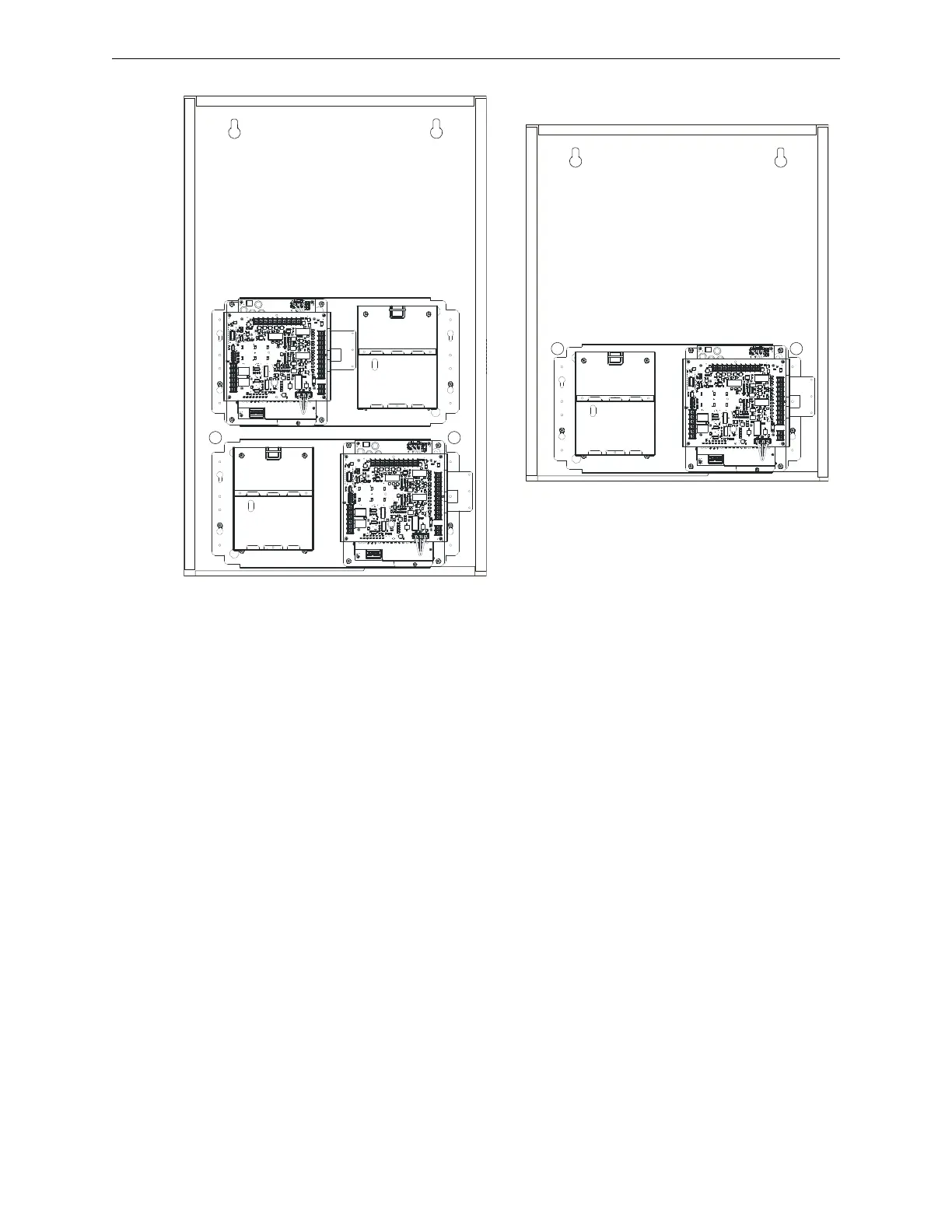

Figure 2.8 Two HPFF12CM Modules in
an EQBB-C4 Backbox
hpff12cmmnt-eqcsize.wmf
Figure 2.9 One HPFF12CM Module in
an EQBB-B4 Backbox
hpff12cmmnt-eqcsize.wmf
