Honeywell IFP-2100ECS - Page 3

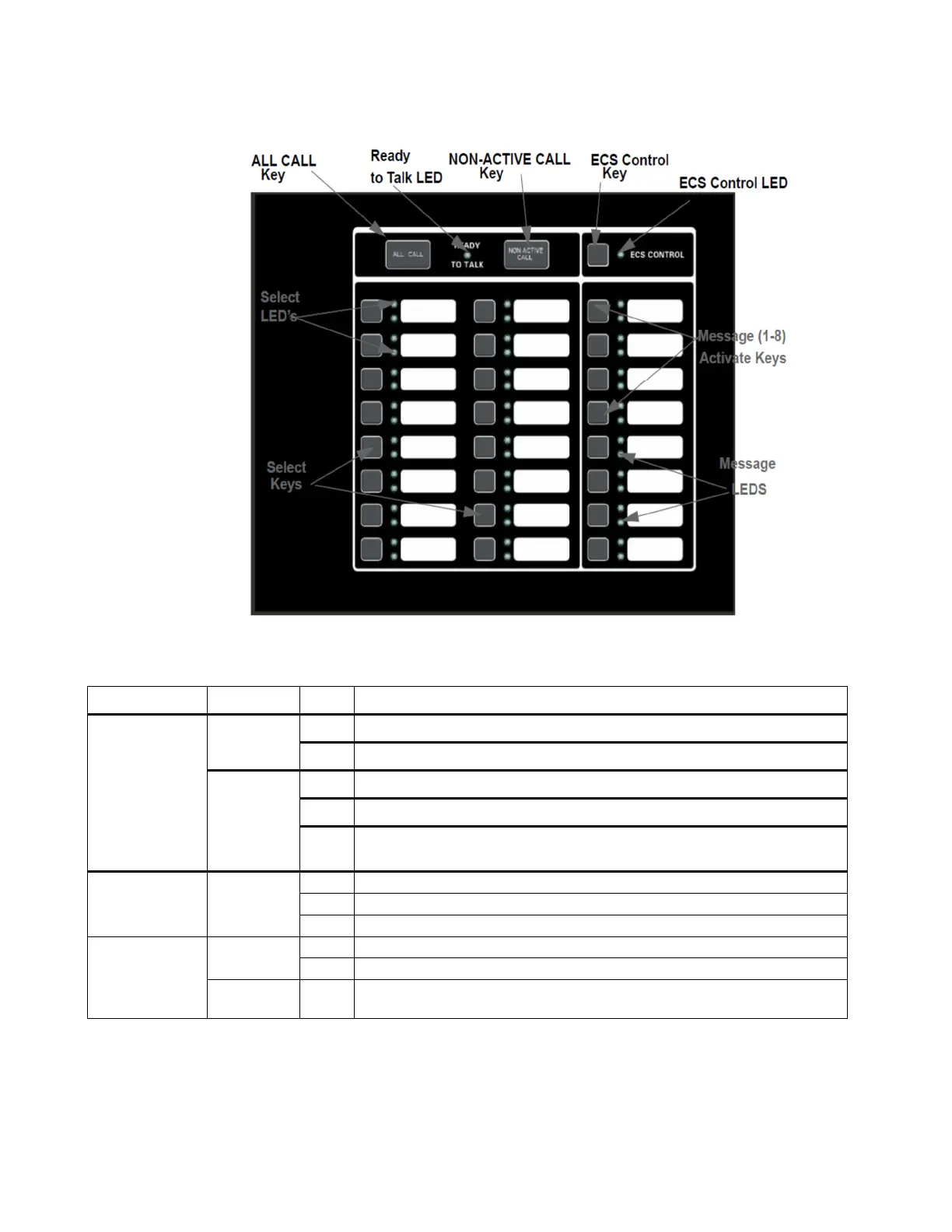

Figure 1-1: ECS Front view
Table 1-1: LED Conditions
LED Color States Meaning
Select Keys
Red
On The corresponding area is active for the currently playing ECS message.
Off The corresponding area is not active.
Green
On The corresponding area is active for the microphone.
Off The corresponding area is not active for the microphone.
Blink
One or more associated network page destination panels are unable to output
the page.
ECS Control LED Green
Blink
When
this
LED
is
blinking,
someone
has
requested
control
of
the
ECS
System.
On
LOC has ECS Control and the user is able to make changes to the ECS.
Off
LOC does not have ECS Control.
Off
The corresponding ECS event was not activated from this LOC.
Green
On
The corresponding ECS event is active and was generated from the LOC (or
was activated from another LOC, but this LOC now has ECS Control).
