NOTE: Although mounting the communicator on the control panel is preferred, it may
also be wall mounted. When wall mounting, please follow these guidelines:
• Use both mounting holes to fasten.
• Route the wiring through the communicator's rear or bottom wiring access hole.
• Ensure all wiring splices are located within the communicator’s enclosure.
• Secure all wiring with ties as necessary.
• Follow the recommended wire gauge sizes.
Minimum Wire Gauge Distance from Control Panel
#22 75 ft (23m)
#20 120 ft (37m)
#18 170 ft (52m)
#16 270 ft (82m)
2. Program and Register the Communicator
You can quickly program and register the communicator by using the
AlarmNet 360 website, using the 7720P Programming Tool, or by phone.
In addition, after you program the communicator, you can register it by
using the Test Message
/ Registration switch.
Using the AlarmNet 360 website to program and register:
1. Refer to the online help file to program the new device.
2. Register the communicator.
3. DONE.
Using the 7720P Programming Tool to program and register:
1. This procedure will program the communicator for basic control panel
communications. For advanced features and remote services refer to
the product’s Installation and Setup guide.
2. Ensure the system is powered up and connect the programming tool to
the communicator.
3. Accept all default settings except the following prompts which need to
be answered. Then exit the programming mode.
NOTE: Account information is provided by the central station. Enter this
information in prompts 12, 13 and 14.
11
Primary City ID
(??)_
[01-99] Enter the 2-digit primary city ID,
01-99 (decimal).
12
Primary CS ID
(??)_
[01-FE] Enter the 2-digit primary central station
ID number, 01-FE (HEX).
13
Primary Sub ID
(????)_
[0001-9999] Enter the 4-digit subscriber account
number, 0001-9999 (decimal).
18
Supervision
(24 Hours)_
• 24 Hour
• None
• 30 Day
Press the [space] key to scroll through
choices.
NOTE: Must be 24 hour for compliance
agency.
4. The interactive registration feature allows the installer to register the
communicator through a series of keyboard commands on the 7720P
Programming Tool. This method of registration lets the installer monitor
the registration process.
Registering
…
Once the programming is complete, press the
[Shift] plus the up arrow [
] key on the 7720P.
The registration message is sent and the unit
waits for the acknowledgment.
Registration
SUCCESS
If this is a new installation and the city, central
station, and customer numbers have been
correctly entered, the communicator is registered
and this message is displayed.
The communicator is now in full service and
available for alarm reporting to the central station.

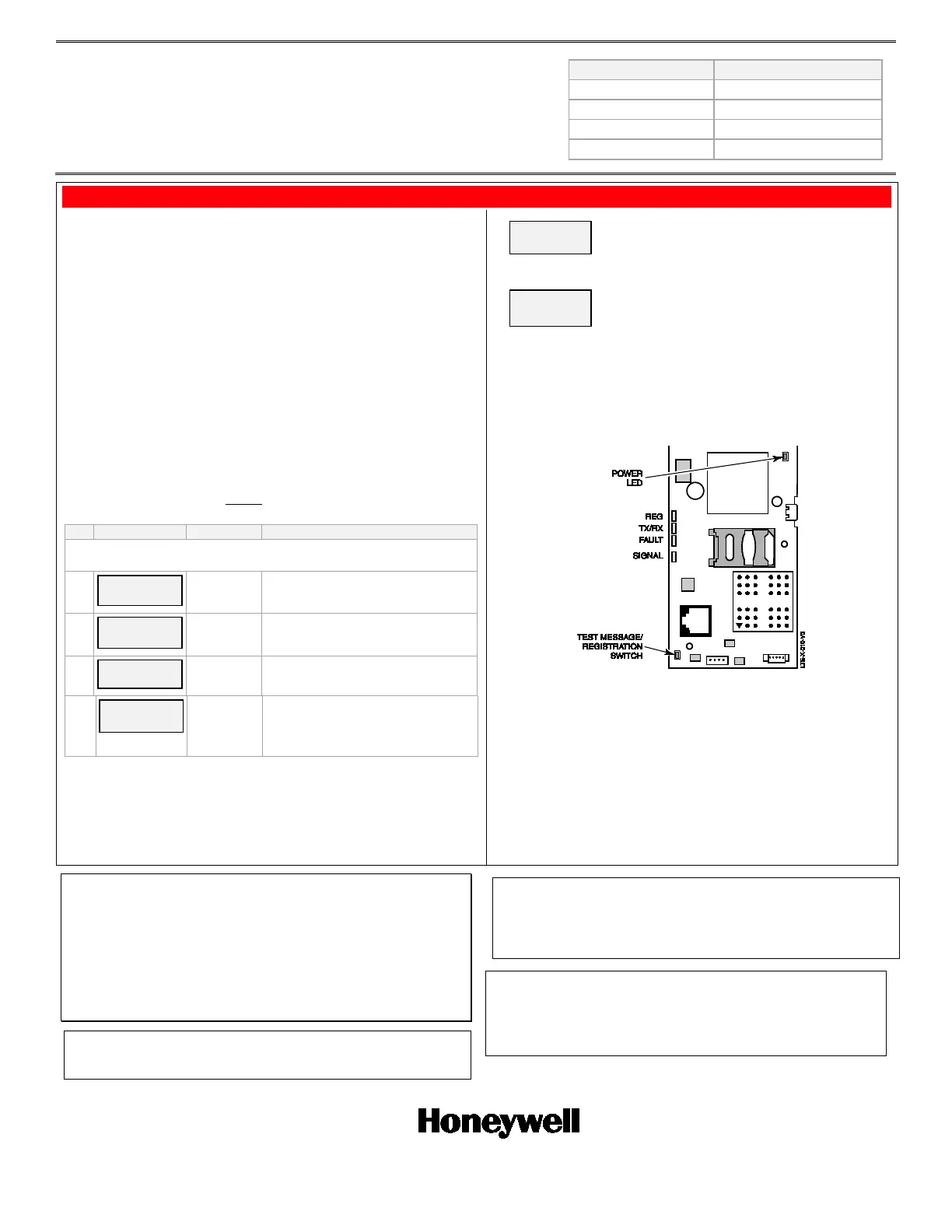

Using the Test Message / Registration switch to register:
After programming, initiate the registration sequence by clicking the
Test Message / Registration switch three times.
Power LED Lit: Power has been supplied to the microcontroller
Using the Phone to program and register:0
You can program and register the communicator by calling the
AlarmNet Support at 1-800-222-6525 (Option 1). (Monday–Friday 8:00
am to 9:00 pm, Saturday 9:00 am to 5:30 pm EST) You will need the
following information:
• MAC ID and CRC (located on the box and inside the communicator).
• Subscriber information (provided by the central station), including a
city code, CSID, and subscriber ID.
• When Instructed to do so, triple click the TEST MESSAGE
/
REGISTRATION switch.
RF Exposure
Warning – The internal or external antenna(s) used with this product
must be installed to provide a separation distance of at least 7.8 in. (20
cm) from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter except in accordance
with FCC multi-transmitter product procedures.
Mise en Garde
Exposition aux Frequences Radio: L'antenne (s) utilisée pour cet
émetteur doit être installée à une distance de séparation d'au moins
7,8 pouces (20 cm) de toutes les personnes.
Important Note About External Antennas
If an external cellular radio antenna is used, the antenna may be
installed or replaced ONLY by a professional installer.
To the Installer
LTE-XV: The external antenna gain shall not exceed 6.94 dBi for 700
MHz, 6.00 dBi for 1700 MHz, 9.01 dBi for 1900 MHz
LTE-XC: The external antenna gain shall not exceed 6.63 dBi for
700MHz & 850MHz, 6 dBi for 1700MHz and 8.51 dBi for 1900MHz.
WARRANTY Go to:
http://www.security.honeywell.com/hsc/resources/wa/
DOCUMENTATION AND ONLINE SUPPORT Go to:
http://www.security.honeywell.com/hsc/resources/MyWebTech/
FOR PATENT INFORMATION, see www.honeywell.com/patents
Ê800-23341vŠ
800-23341 10/17 Rev A
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright 2017 Honeywell International Inc.
www.honeywell.com/security
