Master Keypad Definitions
BYPASS
NO DELAY
RECORD
TEST
FUNCTION
STATUS
VOLUME
PLAY
CODE
LIGHTS ON
LIGHTS OFF
CHIME
ESCAPE
ADD
DELETE
SELECT
ARMED
READY
1
3
2
4
6
8
9
10
12
15
16
17
19
18
14
09015-003-V0
3
6
5
5
9
8
7
AUX
0
13
7
4
STAY
OFF
AWAY
1
20
21
2
11
IMPORTANT!
When you use the keypad to enter codes and commands, press the keys within 2 seconds of one another. If 2
seconds elapse without a key depression, the entry is aborted and must be repeated from its beginning.
NOTE: Different timeouts may occur when defining auxiliary functions and setting the real-time clock.
Note: The system functions described below are for reference only and require additional key entries to activate.

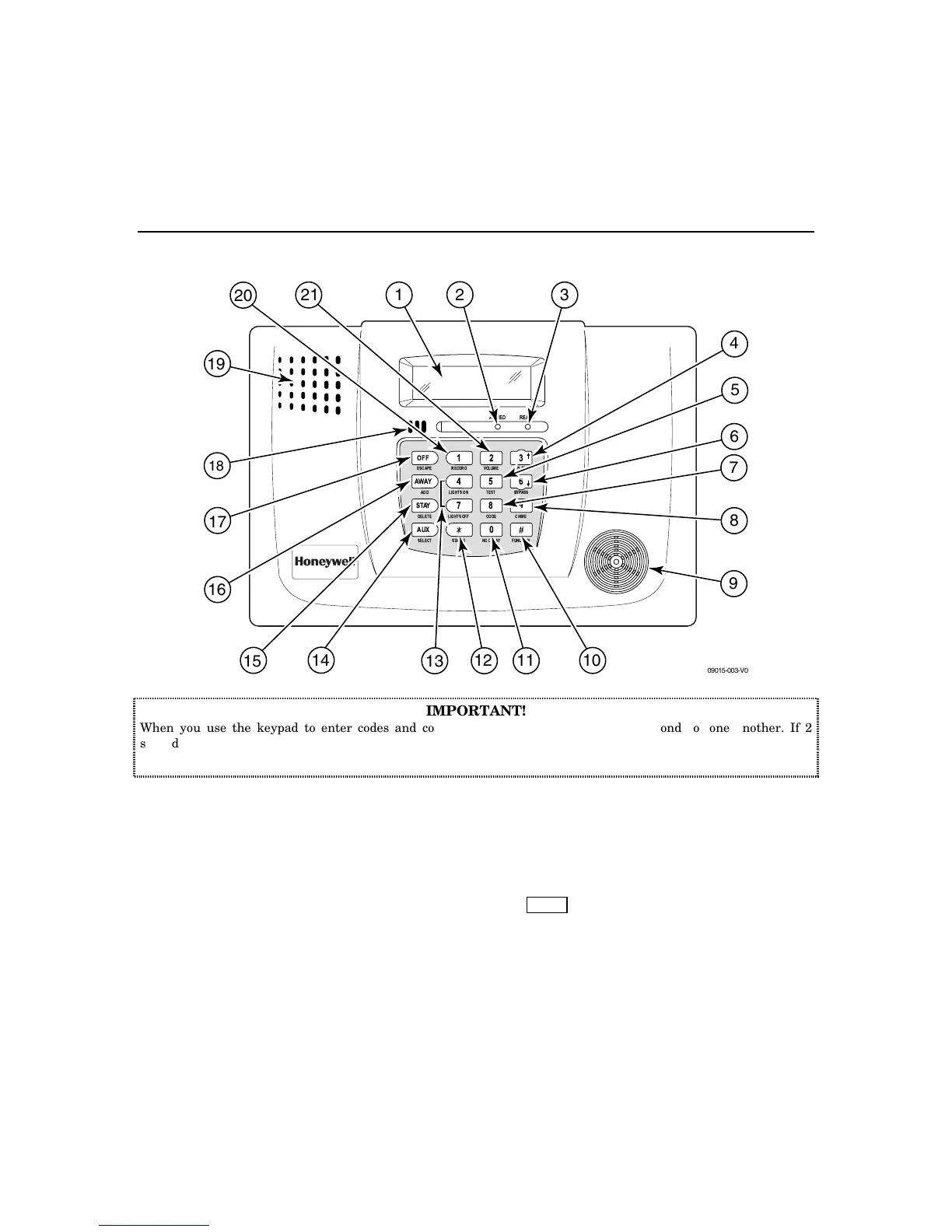

1. DISPLAY WINDOW: Liquid Crystal Display
(LCD). Displays protection point identification
and system status, messages, and user
instructions.
2. ARMED INDICATOR: (RED) Lit when the
system has been armed (STAY, AWAY, NO
DELAY). Blinks when armed and fault exists, or
once per second when AVM (VOX or Talk) or
speaker phone mode is active.
3. READY INDICATOR: When lit, indicates
system is ready to be armed; blinking indicates
system is not ready (a zone is open). Blinks once
per second when AVM (VOX or Talk) or speaker
phone mode is active.
4. PLAY
KEY: Announces a user’s message if
one was previously recorded. See RECORD
function. Used to adjust volume of voice
messages.

Honeywell LYNXR-2 Series Security System Specifications

General

Brand	Honeywell
Model	LYNXR-2 Series Security System
Category	Security System
Language	English
