INSTALLATION (CONTINUED)
IMPORTANT: Do not replace or lengthen the Exhaust Hose as this could cause the unit to
malfunction.
The supplied Exhaust Hose has a diameter of 5" (12.7 cm) and can be extended from
12" to 47" (30 cm to 120 cm).
Do not bend (to the extent shown below) the Exhaust Hose. A bent hose will block exhaust air and
cause the unit to malfunction or shut-off.
Make sure the back of the unit is at least 31.5" (80 cm) away from the wall and the minimum air
space from top / front / left / right is 20" (50cm). Do not place the unit in front of curtains or
drapes as this could obstruct the airflow.
•
•
•
WARNING: Any warranties included with this product will be voided if an extra extension hose is
added to the originally provided installation kit or if the installation is performed differently than the
manufacturer's instructions, without proper consultation. Please contact Customer Support for help
with installation procedures if needed.

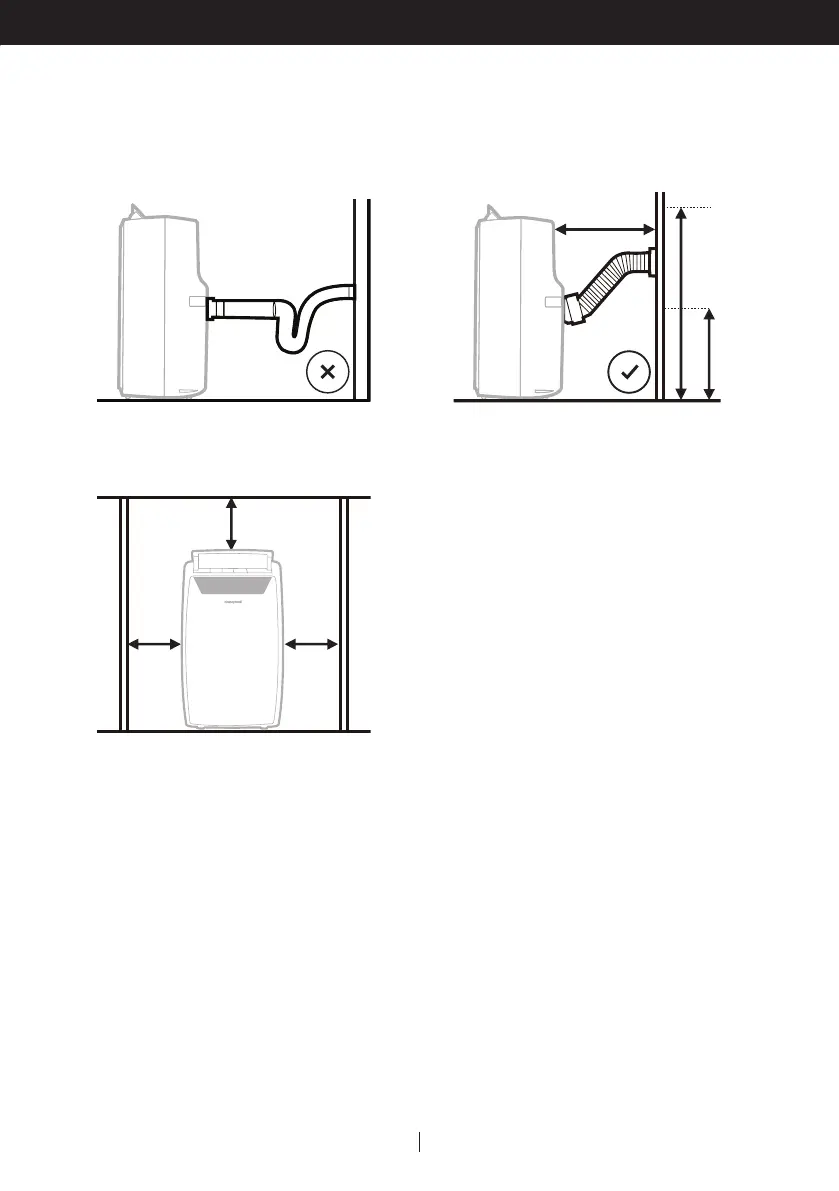

NOT RECOMMENDED
THE MINIMUM AIR SPACE
RECOMMENDED
31.5" (80 cm)
20" (50 cm)
20"
(50 cm)
20"
(50 cm)
MAX. 14" (36 cm)
EN
MAX. 40" (102 cm)
MIN 35.6 cm
