SERIES 61 AND SERIES 62 MODUTROL IV™ MOTORS
63-2629—2 8
Careless Installation Hazard.
Use of excessive force while adjusting cams
damages the motor.
To avoid damaging motor end switches, set cams by
moving only the screwdriver top.
Equipment Damage Hazard.
Can damage the motor beyond repair.
Never turn the motor shaft by hand or with a wrench.
Forcibly turning the motor shaft damages the gear train
and stroke limit contacts.

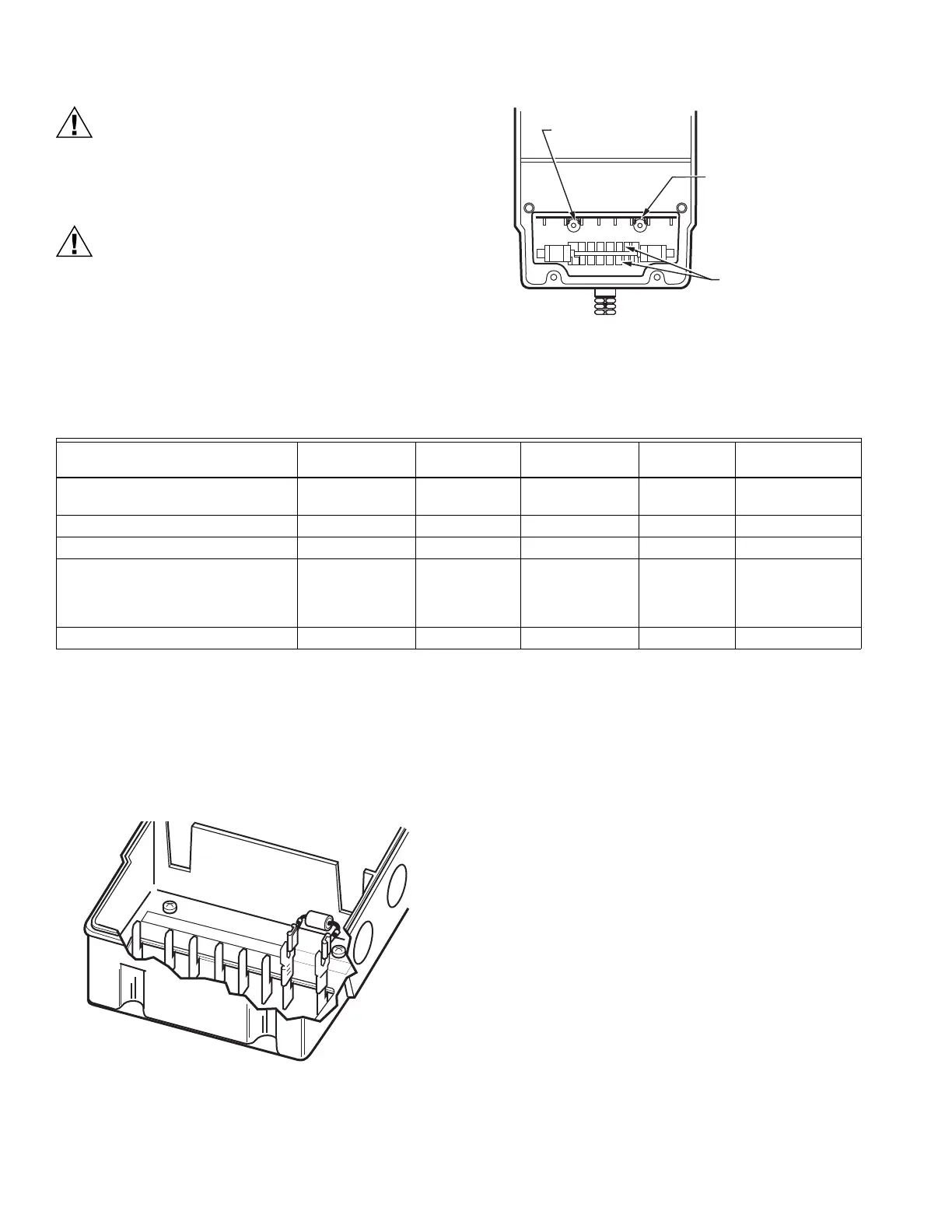

Fig. 10. Stroke adjustments setup.
Feedback Potentiometer Configuration (Series 62 TRADELINE
®
Motors Only)
Table 5. Series 62 Feedback Characteristics
Select and install a shunt resistors to obtain the appropriate
feedback characteristic for your application. See the
Specifications section for details on feedback resistance
without a shunt resistor.
• Linear feedback provides linear indication of shaft position
with no shunt resistor.
• Slaving a Series 90 Motor requires full-stroke feedback
resistance of 142 ohms. Select and attach the proper shunt
resistor across terminals Y and G (see Table 5 and Fig. 11).
Fig. 11. Attaching a shunt resistor to TRADELINE motors.
Auxiliary Switches
Adjustable cams actuate the auxiliary switches. These cams
can be set to actuate the switches at any angle within the
motor stroke. Select switch differential of 1° or 10°.
Motors with factory-added auxiliary switches are shipped in the
closed position (fully counterclockwise, as viewed from the
power end). Auxiliary cam default actuates the switches 30°
from fully open with a 1° differential. With the motor in the
closed (fully counterclockwise) position, the auxiliary switch
breaks contacts R-B. See Fig. 9 (or the auxiliary switch
Installation Instructions) for auxiliary switch wiring.
NOTE: Series 2 Motors are shipped with auxiliary switch
cams that permit acceptance of 220736A,B Internal
Auxiliary Switch Kits. Refer to Form no. 63-2228 for
220736A,B Installation Instructions.
M13601
POWER END
OF MOTOR
AUXILIARY
SWITCH CAMS
SENSITIVITY
POTENTIOMETER
(ON SOME SERIES 62
MODELS, SEE TABLE 5)
ADJUSTABLE
STROKE
POTENTIOMETER
OS Number
Feedback
Resistance
Sensitivity
Adjustment Internal Shunted
Linear
Feedback
Series 90 Slaving
Shunt Resistor
M6284D1000, D1026, D4004, F1070,
M6285A1005, A1054, A4009
600 Ohms No Yes No 187 Ohm
M6284F1070 10 K Ohms No No Yes Not Available
M6284A1071, A1089, C1028 196/346 Ohms Yes Yes No 274 Ohm
M6284A1030, A1055, A1097, B1004,
C1010, C1044, F1013, F1039,
M6285A1039, A1047, C1001,
M6294B1036, D1008
119/224 Ohms Yes Yes No Not Necessary
M6284F1062 1800 Ohms No Yes No Not Available
