SERIES 61 AND SERIES 62 MODUTROL IV™ MOTORS
63-2629EF—01 4

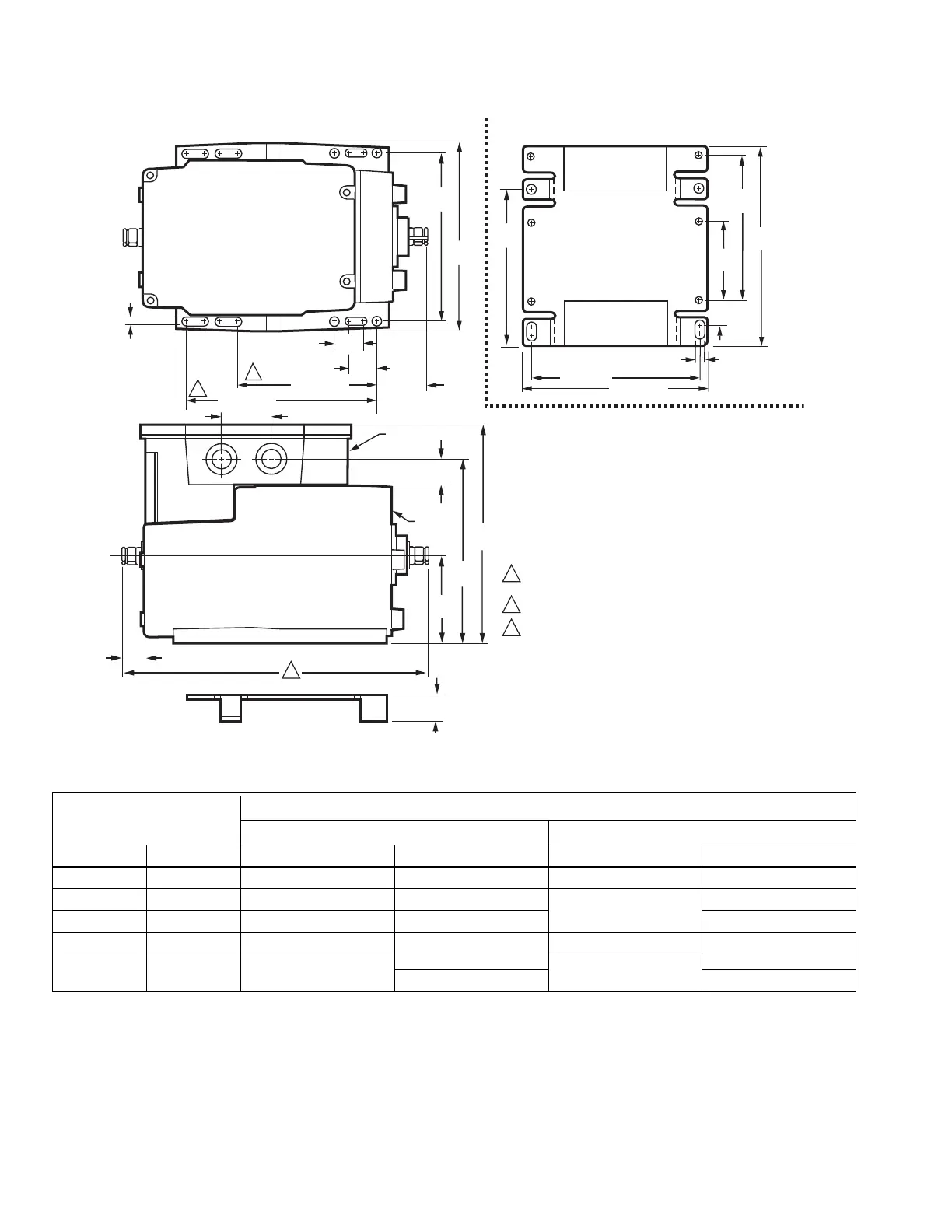

Fig. 2. Series 61 and 62 Modutrol IV Motor mounting dimensions in inches (mm).
Table 6. Series 61 and 62 Modutrol IV Motor Timing and Torque Ratings.
NOTE: Torque designation corresponds to torque rating
at standard timing (nominally 60 seconds for
160° and 30 seconds for 90° except for 300 lb-in.
motors that have timings of 2 or 4 minutes).
IMPORTANT
Never use motor continuously at the Breakaway
Torque rating.
Nominal Timing
a
in sec
Rated Torque in lb-in. (N•m)
b
Normal Running Torque Breakaway Torque
c
90° Stroke 160° Stroke Spring Return Non-Spring Return Spring Return Non-Spring Return
15 30 — 75 (8.5) — 150 (17.0)
30 60 60 (6.8) 35 (4.0) 120 (13.6) 70 (7.9)
150 (17.0) 300 (34.0)
60 120 300 (34.0) 600 (68.0)
120 240 —
—
150 (17.0) 300 (34.0)
a
Timings apply to all TRADELINE models. Some OEM models are available with non-standard timing/torque.
b
Torque ratings for dual-ended shaft motors are the sum of the shaft torques (power-end torque plus auxiliary-end torque).
c
Breakaway torque is the maximum torque available to overcome occasional large loads such as a seized damper or valve.
M18998B
4-7/8
(124)
5-1/2
(140)
13/16
(20)
4-1/16 (103)
1/4
(7)
1-1/2 (37)
4-1/16 (103)
JUNCTION
BOX
MOTOR
AUXILARY
END
POWER
END
ADAPTER
BRACKET
2-9/16
(66)
5-3/8
(137)
6-7/16
(164)
9/16 (15)
3/4
(19)
TOP VIEW OF BRACKET TOP VIEW
4-5/8
(116)
4-1/4
(107)
2-5/16
(58)
11/16
(17)
4-7/8 (124)
5-9/16 (141)
1/4 (7)
5-13/16
(148)
1
POWER END
2
3
1-1/2 (37)
3/4
(19)
SPRING RETURN MODEL SHOWN
FOR 60 LB-IN. SPRING RETURN MODELS 8-3/4 (222).
FOR NON-SPRING RETUIRN MODELS 7-5/16 (185).
FOR 60 LB-IN. SPRING RETURN MODELS (SHOWN).
FOR NON-SPRING RETURN MODELS.
1
2
3
13/16
(20)
