Chapter 5 — Printer Maintenance
30 MP Compact4 Mark III User Guide

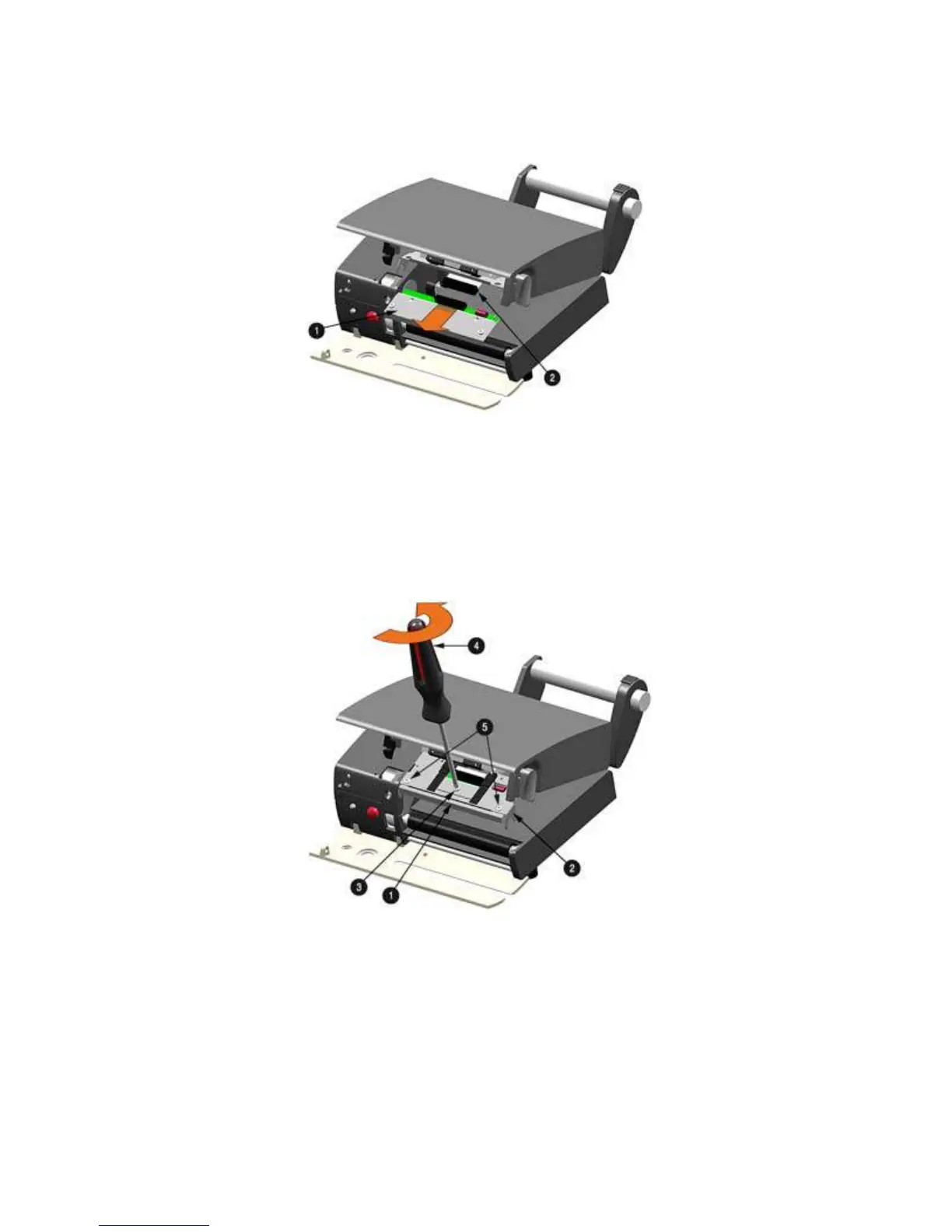

5 Disconnect the printhead cable (item 2) from the rear of the printhead (item
1).
To install
1 Connect the printhead cable to the rear of the printhead (item1).
2 Position the printhead into the printhead carrier (item 2). Be sure the two
screw heads on the printhead are located into the holes (item 5) of the
printhead carrier.
3 While pressing down on the printhead carrier, install and tighten the
printhead screw (item 3) using a Phillips screwdriver (item 4).
4 It is now recommended to clean the printhead to remove any oil or dirt from
handling. Perform the “Clean the Printhead” on page 27.
