Chapter 5 — Printer Maintenance
32 MP Compact4 Mark III User Guide

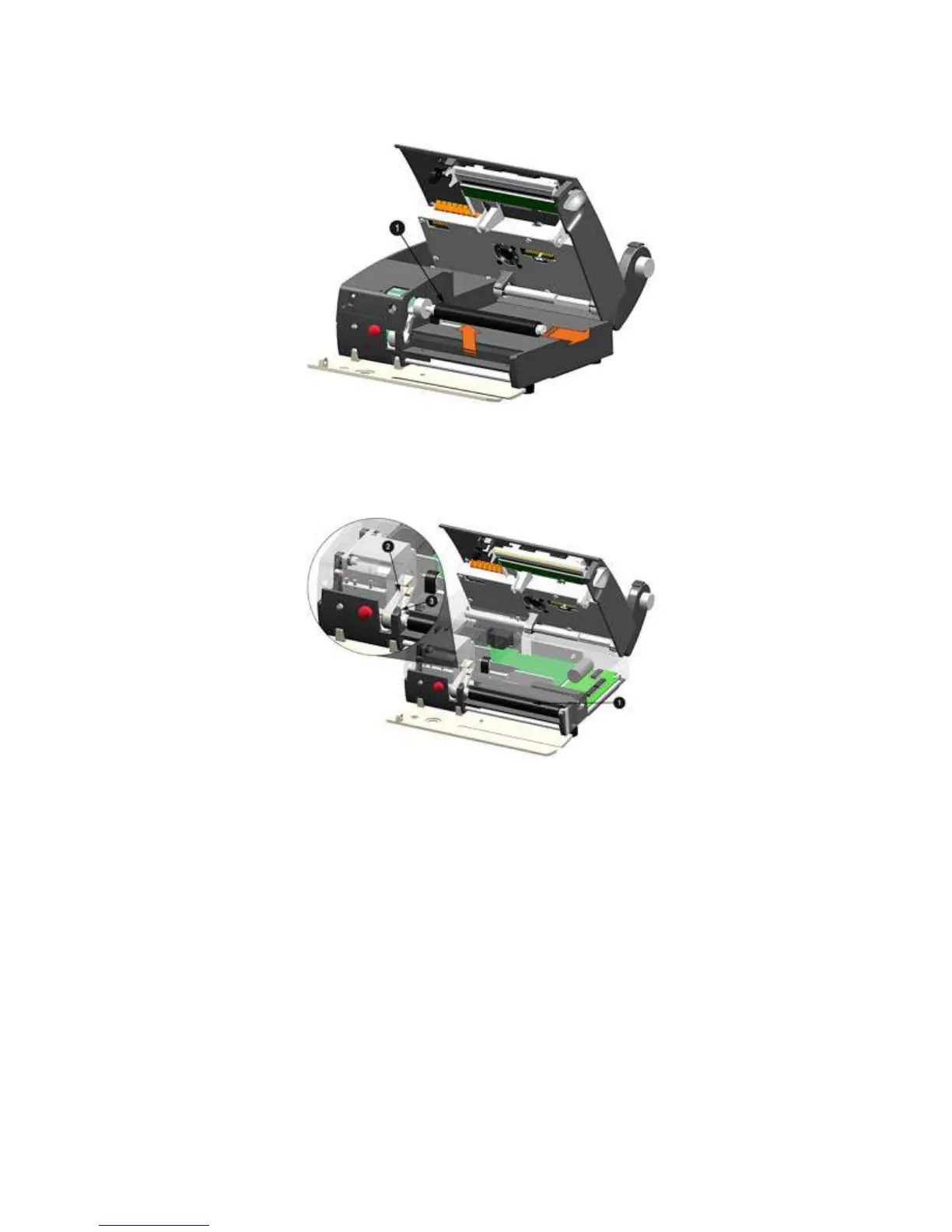

5 Lift the platen roller assembly (item 1) up and out of the printer.
To install
1 Insert the new platen roller assembly (item 1) into position. Be sure the belt
(item 2) is routed properly around the gear (item 3), this can be viewed
through the access hole.
2 Re-install the platen roller cover.
3 Close the top cover by pushing down until it latches closed. Raise the front
panel and replace the media. Return the printhead latch back to the locked
position.
4 Plug in and turn the printer on. Feed several labels to normalize tracking.
