MP909E UL LISTED DAMPER ACTUATOR
95-6076
3
1. BOLTS ARE TIGHTENED TO MORE THAN 90 LB-IN
BUT LESS THAN 200 LB-IN.
2. TIGHTEN BOTH BOLTS (WITH 7/16 BOX END
WRENCH IF AVAILABLE).
3. TIGHTEN EACH BOLT AGAIN TO THE REQUIRED
TORQUE.
C8211
CRANKARM BOLTS

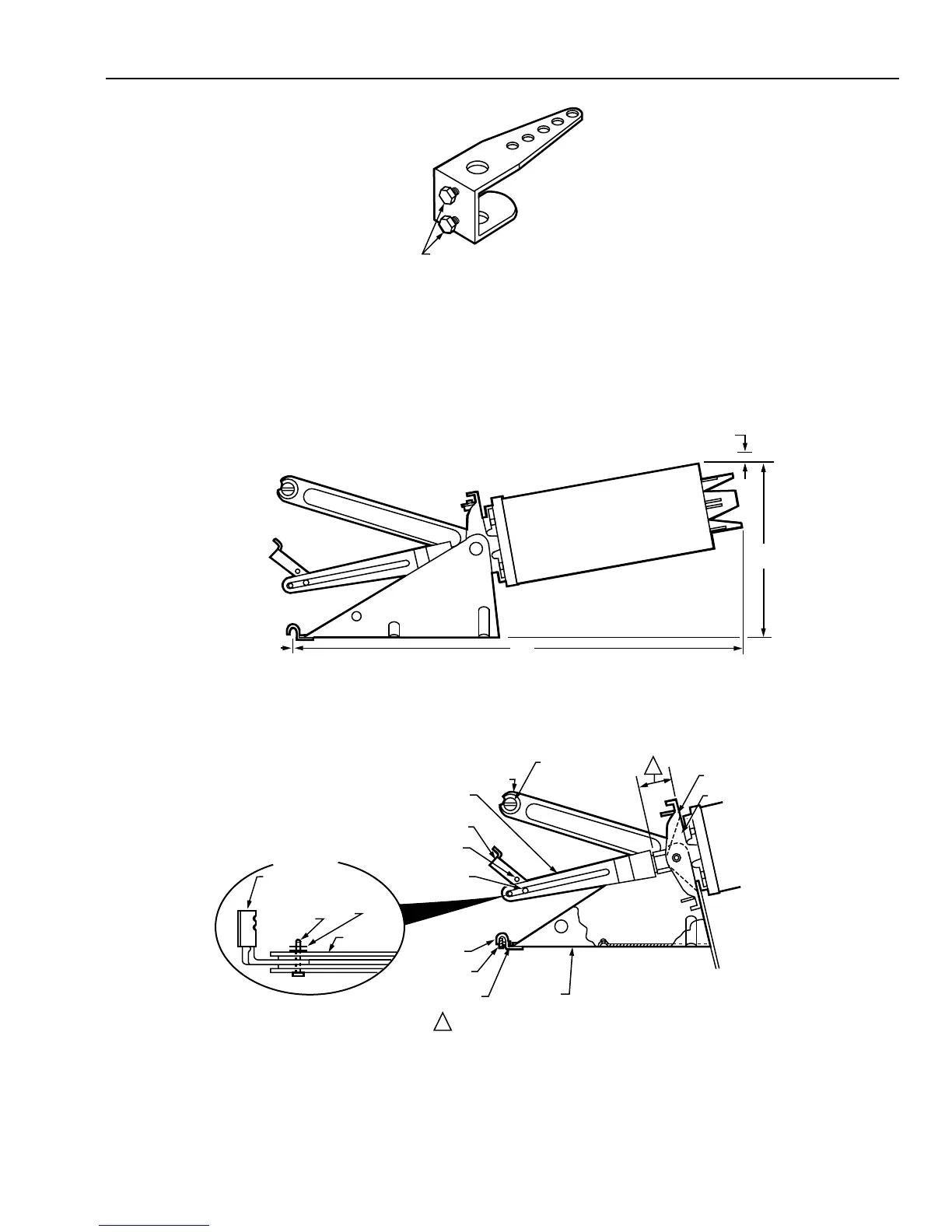

Fig. 4. Crankarm Bolt Tightening.
Fig. 5. Internally Mounted Normally Closed Mounting Dimensions in Inches (Millimeters).
3/8 (10) CLEARANCE
17
(430)
EDGE OF
DAMPER
6-3/8
(160)
C8210
FACEPLATE PARALLEL
TO BACK EDGE OF
MOUNTING BRACKET
C8212
TRUSS
LINK
TRUSS LINK
MOUNTING
SCREW
1
1
FACEPLATE
PIVOT PLATE
PUSHROD
1-13/32 INCH (36 MM) REF.
DAMPER
DRIVE EAR
E HOLE
CLEVIS PIN
(P HOLE)
DAMPER
MOUNTING
CLAMP
SHIPPING
STOP
SETSCREWS
MOUNTING
BRACKET
PUSHROD
DAMPER
DRIVE EAR
CLEVIS PIN
(P HOLE)
DETAIL A
TOP VIEW
CLIP
Fig. 6. Internal Mounting Normally Closed Damper.
