- 10 -

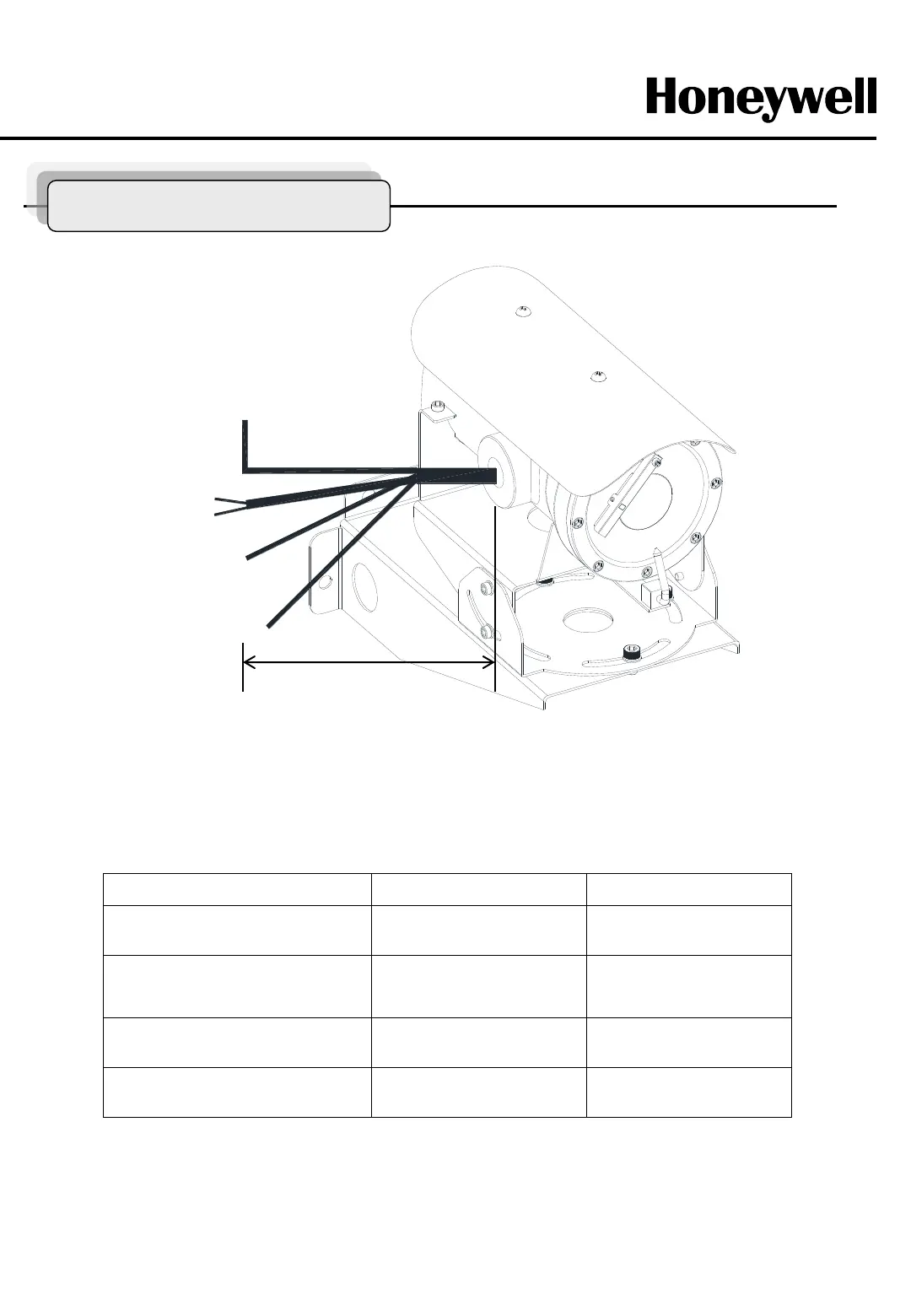

Configuration of Wire Harness
Figure8.
Cable configuration
Cable Configuration
Wire Color Function Description
Brown
Sky Blue
Power Input
(220V or 110V)
Hi
Low
Red
Green
Washer Pump+
Washer Pump-
Pump+
Pump-
Black Video BNC Cable
Black
White
Control Data
RS485 Data +
RS485 Data -
2m ± 0.3m
POWER
(AC 220V or 110V)
BNC
Pump
+/-
Control
Data+, -
