- 9 -
Figure7.

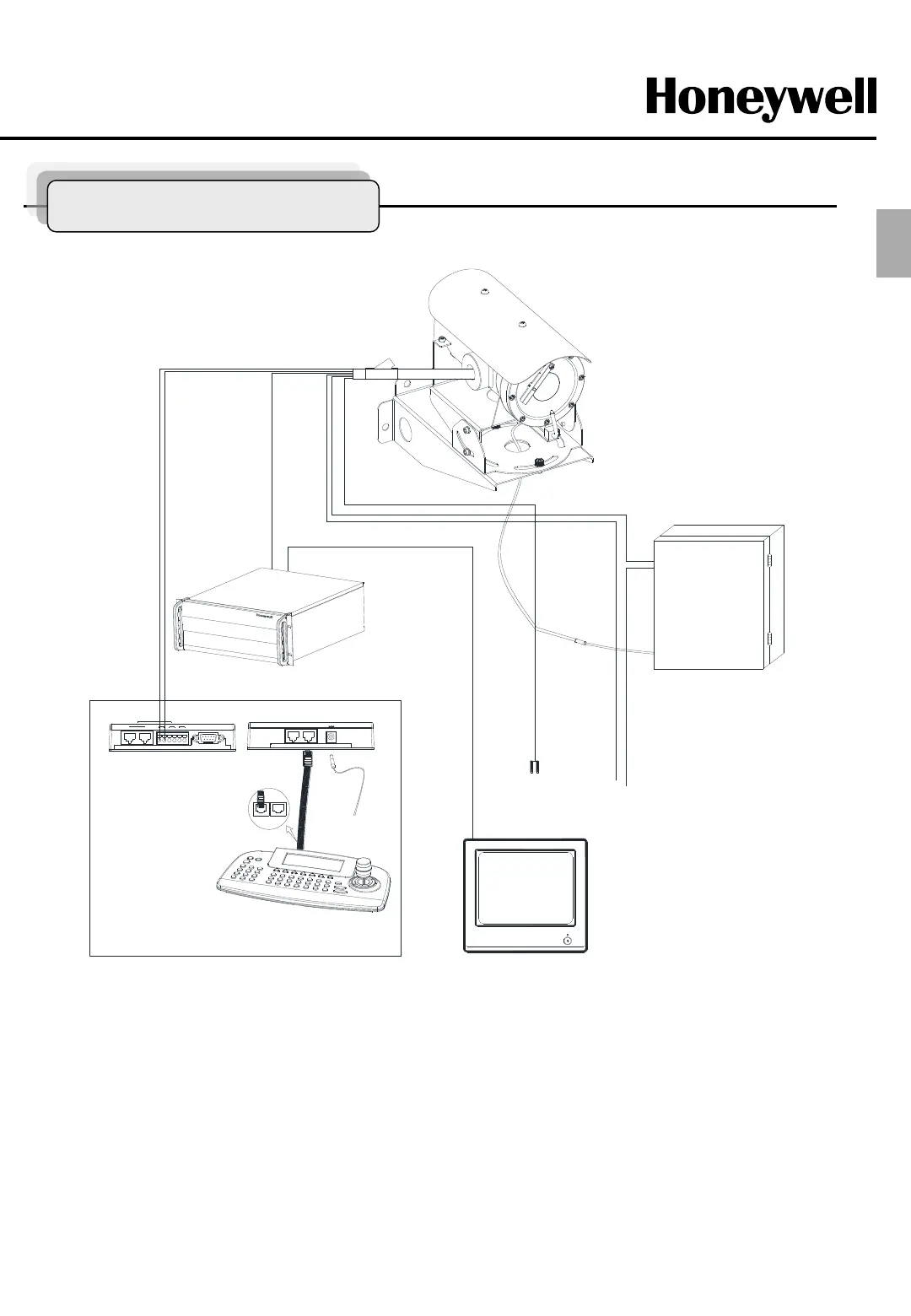

Base Schematic of Installation
1. Figure7 is recommended for the base Schematic of Installation.
2. If you wish to consist of another method or other components, you must proceed to do after
conferring with a manufacture.
3. Depend on a DVR, you can control the product with an Utility in the DVR without HTX-5000.
4. Washer Pump is the optional product.
Base Schematic
ENG
POWER
AC110 or 220V
BNC
MAIN MONITOR
DATA1 DATA2
+ - -+ + -
REAR
FRONT
KEYBOARD CONTROLLER
HTX-5000
REAR
DATA 2 DATA 1
DC 12V
RS 485
1 DOME 2
IN
OUT
DVR
RS 232C
ALARM/DVR
DC 12V
SLAVE
RS 485
+
-
Pump-
Pump+
RS 485
DVR
Check Valve
Pump
Motor
+
-
Input Power DC 12~24V
+
GND
