LCD6000 Installation manual PAGE - 3
LCD6000_manu-inst Doc. M-184.1-LCD6000T-ENG Rev A.2 NOTIFIER ITALIA
INSTALLATION

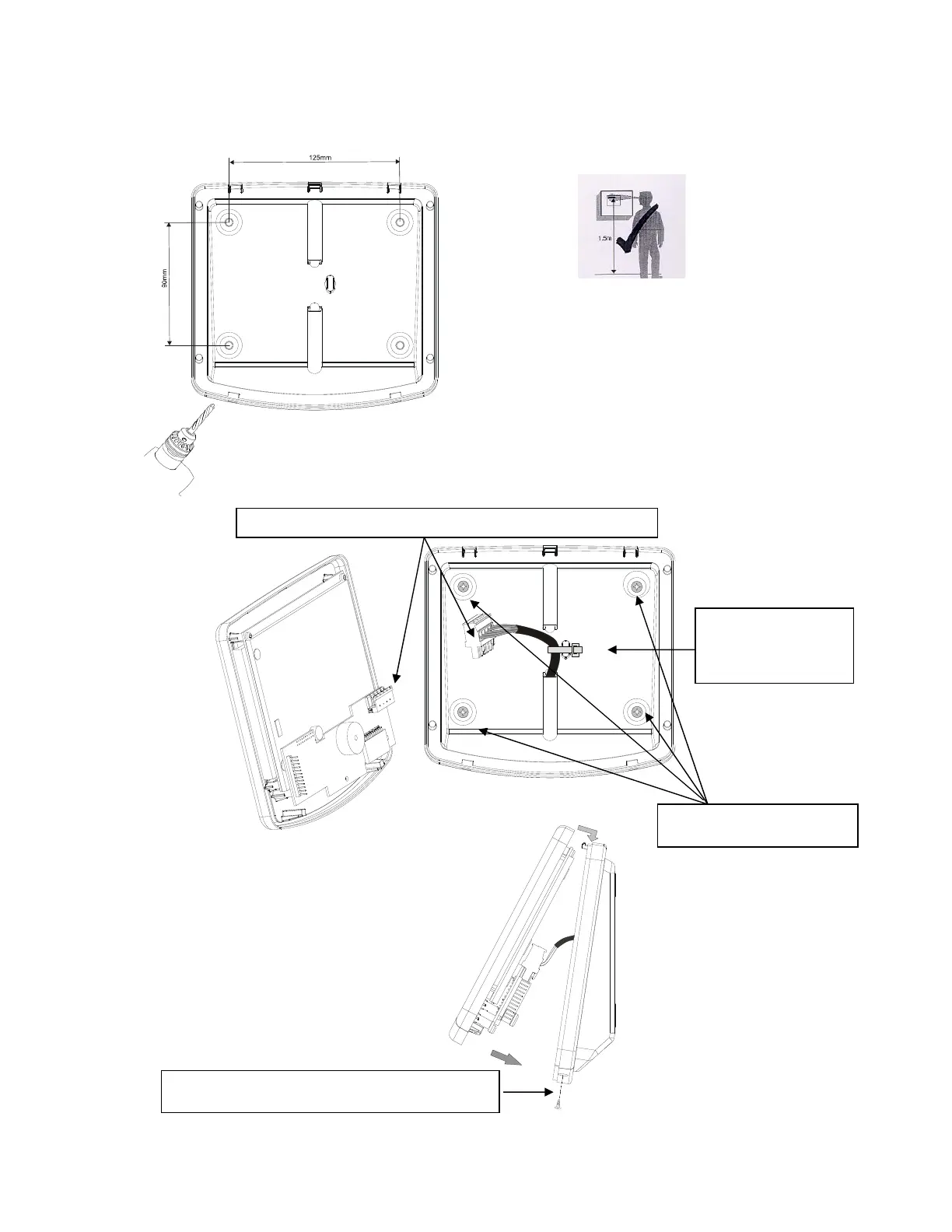

Sizes for wall assembly
.
The panel can be wall- installed through 4 self-
blocking cleats (masonry walls) or self-tapping
screws (prefabricated panels, etc.)
The screws used must have a maximum diameter of
5 mm. It is recommended not to install the panel
near heat sources (radiators, etc.)
Fastening screws max 5 mm
.
Fasten the incoming
cable with a cable-
fastening strip
Connect the incoming cable to CN1 extractable terminal block
Screws fastening the front panel to the base
