Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Housing
7
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

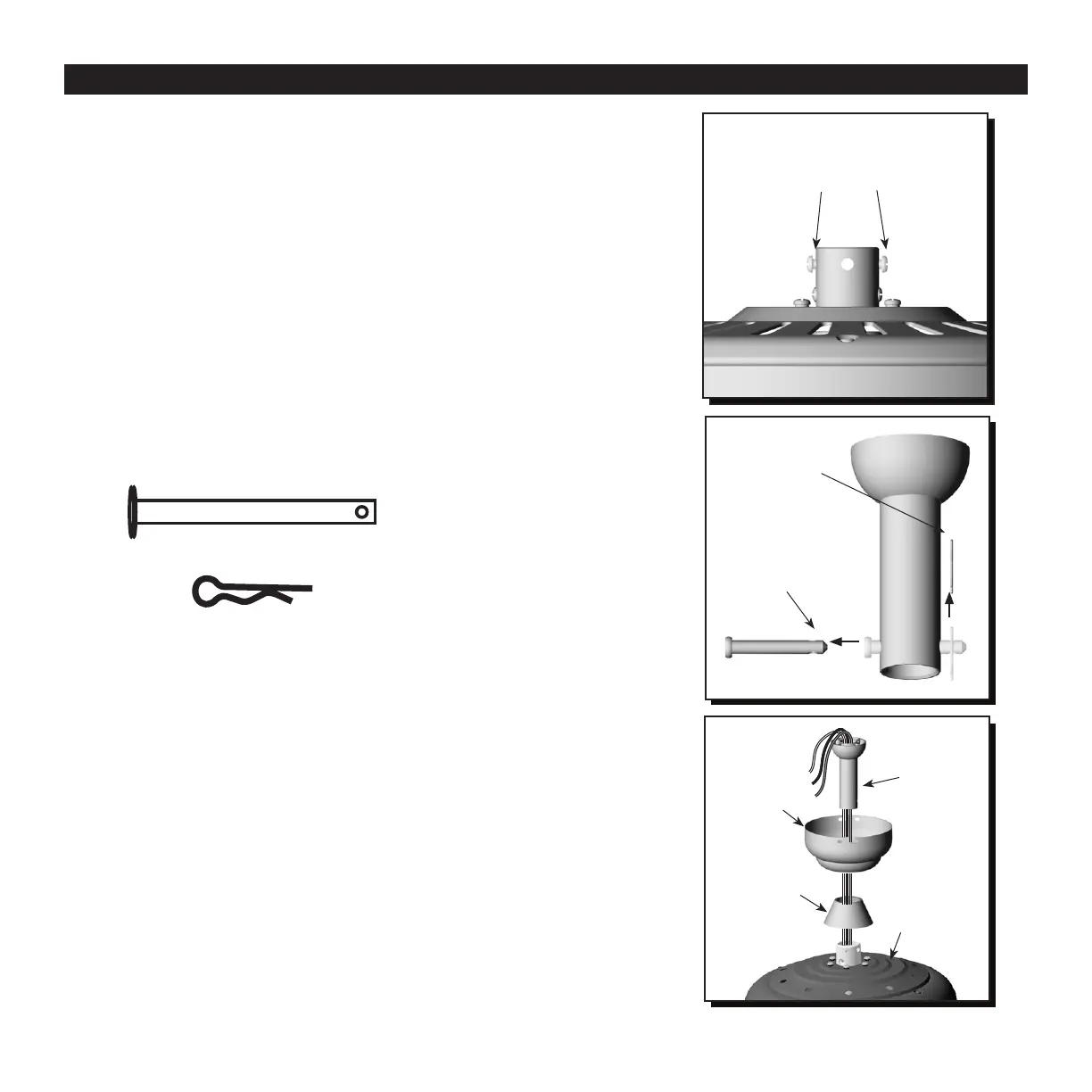

6. Partially loosen the two set screws in the yoke at
the top of the motor housing (Fig. 6).
7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7).
8. Thread the wires from the motor housing through
the yoke cover, canopy, and out the top of the
downrod (Fig. 8).
Downrod
Clip
Downrod
Pin
Fig. 7
Fig. 6
Set Screws
Downrod Pin
Downrod Clip
