Honeywell Q7055C Series User Manual

Q7055C BUILDING NETWORK ADAPTERS BNA-1C/2CS
95-7735 4

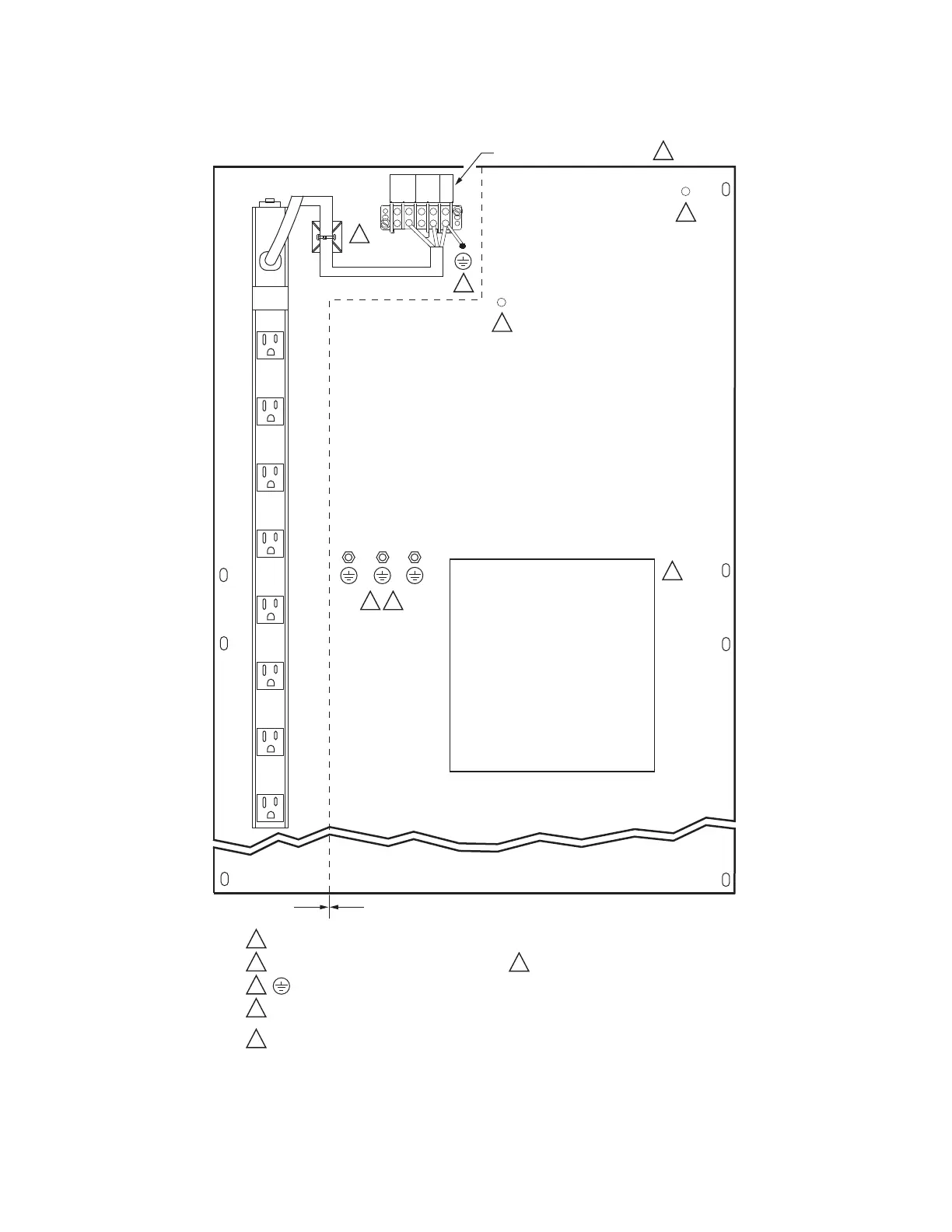

Fig. 5. Typical mounting of Q7055C BNA Assembly on 14006090-555151 series Communications Panel.
WIRE PER NEC FOR FIRE ALARM
M25288
POWER LIMITED AREA NON-POWER
LIMITED AREA
SYSTEM WIRING IS CLASSIFIED AS EITHER POWER LIMITED OR NON-POWER LIMITED
PER NEC ARTICLE 760. ALL POWER LIMITED WIRING MUST BE SEPARATED FROM ALL
NON-POWER LIMITED WIRING BY A MINIMUM DISTANCE OF 1/4 IN. (6 MM).
NOTE:
TYPICAL MOUNTING LOCATION FOR Q7055 BUILDING NETWORK ADAPTER (BNA).
1
G = GROUNDING CONDUCTOR
2
GROUND CONNECTION. 8-32 STUD WITH 8-32 KEPS NUT.
3
GROUND CONNECTION FOR 14507678 SERIES ETHERNET PROTECTOR AND OTHER
LOW VOLTAGE EQUIPMENT.
4
DRILLED MOUNTING HOLES FOR 14507719-001 8 PORT ETHERNET HUB (IF USED).
5
3 4
2
H
N
G
5
3
5
1
BNA
6
6
14503899-002 MOV FACTORY INSTALLED
ON TERMINAL STRIP.
