Honeywell RTH7600 Series Quick Installation Guide

RTH7600
23 69-2206EF—01
SETUP WIRING ASSISTANCE TROUBLESHOOTING

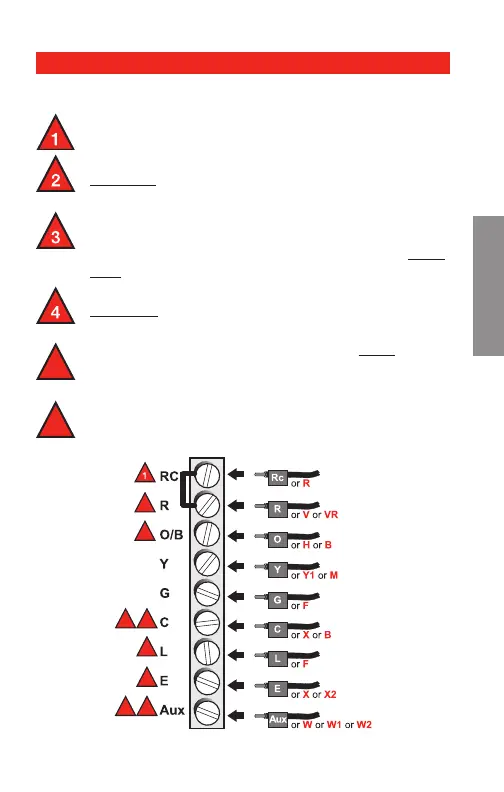

Alternate wiring (for heat pumps only)
Leave metal jumper in place, connecting R & Rc
terminals.
If your old thermostat had both V and VR wires,
stop now and contact a qualified contractor for
help.
If your old thermostat had separate O and B
wires, attach the B wire to the C terminal. If
another wire is attached to the C terminal, stop
now and contact a qualified contractor for help.
If your old thermostat had Y1, W1 and W2 wires,
stop now and contact a qualified contractor for
help.
If L terminal is used, C terminal wire must be
connected (contact a contractor if there is no C
wire).
If E and Aux terminals do not each have a wire
connected, use a small piece of wire to connect
them to each other.
2
3
3
4
5
5
6
6
M28077
5
6
Wiring—heat pump

Honeywell RTH7600 Series Specifications

General

Programmability	7-day programmable
Temperature Range	40°F to 90°F (4°C to 32°C)
Accuracy	+/- 1°F
Hold Function	Yes
Filter Change Alert	Yes
Power Source	Battery and/or Hardwired
Compatibility	Gas, oil, electric, heat pump systems
Temperature Control	Precise temperature control of +/-1°F
Stages	2 Heat/2 Cool
Display Type	Touchscreen
Weight	6.4 oz (181 g)
