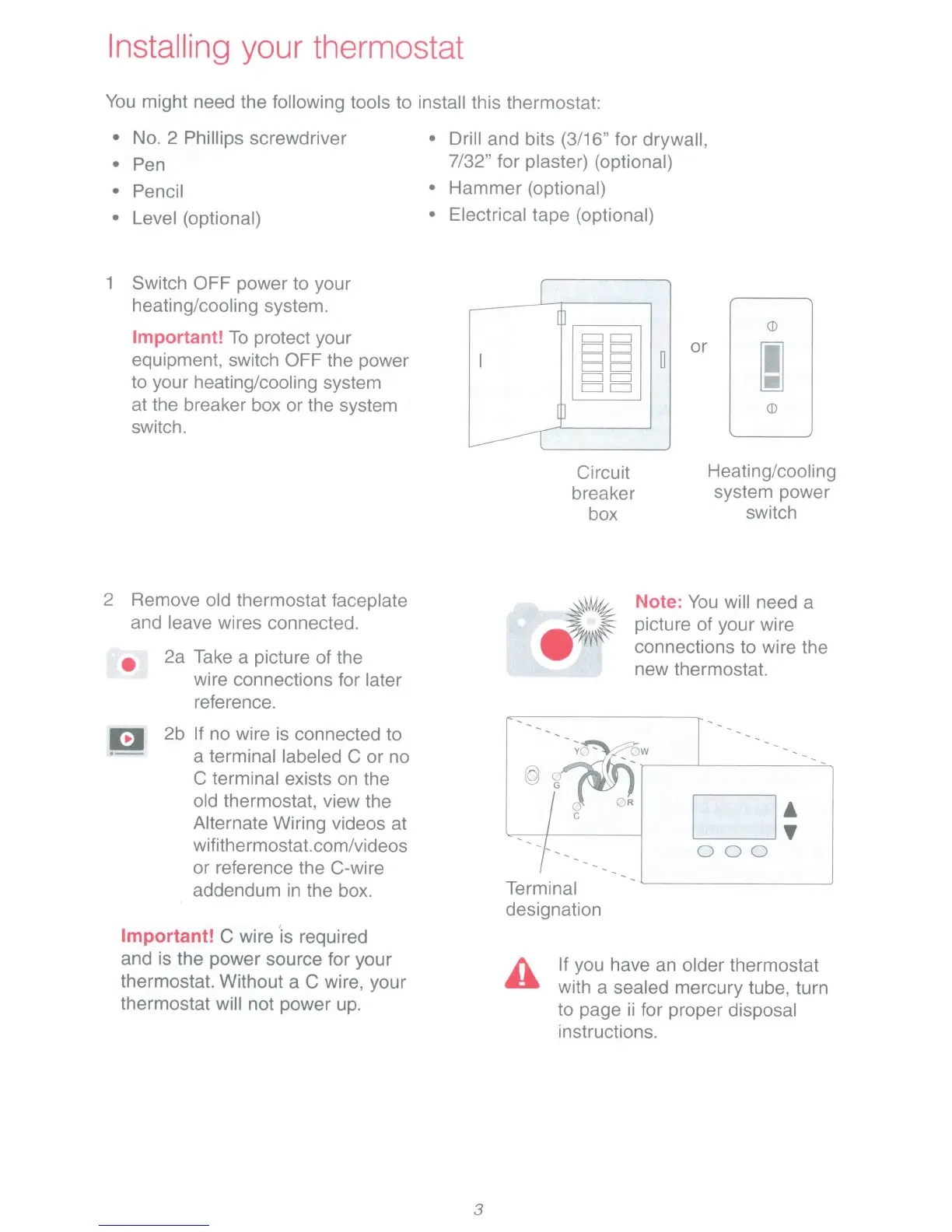

Installing
your thermostat
You
might need the following tools
to install
this thermostat:
No. 2 Phillips
screwdriver
Pen
Pencil
Level (optional)
1
Switch OFF
power to your
heating/cooling system.
Important!
To
protect your
equipment, switch
OFF
the power
to your heating/cooling system
at the breaker box or the system
switch.
2 Remove old
thermostat
faceplate
and
leave
wires connected.
2a
Take
a picture of the
wire connections for
later
reference.
B
2b
If
no wire
is
connected to
·-
a
terminal labeled C
or no
C terminal
exists
on
the
old
thermostat, view the
Alternate
Wiring videos at
wifithermostat.com/videos
or reference the C-wire
addendum
in
the box.
Important!
C
wire 'is
required
and
is
the power source for your
thermostat. Without a
C
wire, your
thermostat
will not power
up.
Drill
and bits
(3/16"
for
drywall,
7/32"
for
plaster) (optional)
Hammer (optional)
Electrical
tape
(optional)
I
<D
CJ
CJ
or
I
C=:J
C=:J
0
CJ
CJ
C=:J
C=:J
CJ
C=:J
C=:J
CJ
<D
~
3
-
Circuit
breaker
box
-
-
-
-
Heating/cooling
system power
switch
Note:
You
will
need a
picture of your wire
connections to wire the
new thermostat.
-
-
-
-
-
-
©
~
~w
-
-
-
-
-
-
-
D :
--
;-
--------
0 0
0
Term1nal
designation
-
If
you have
an
older thermostat
with a
sealed
mercury tube, turn
to page
ii
for proper
disposal
instructions.
