S89E,F DIRECT SPARK IGNITION CONTROL MODULE
3 68-0066—4
Approvals:
Underwriters Laboratories Inc. Component Recognized: File
No. MP268, Guide No. MCCZ2.
CSA International Certified: 158158-1047805.

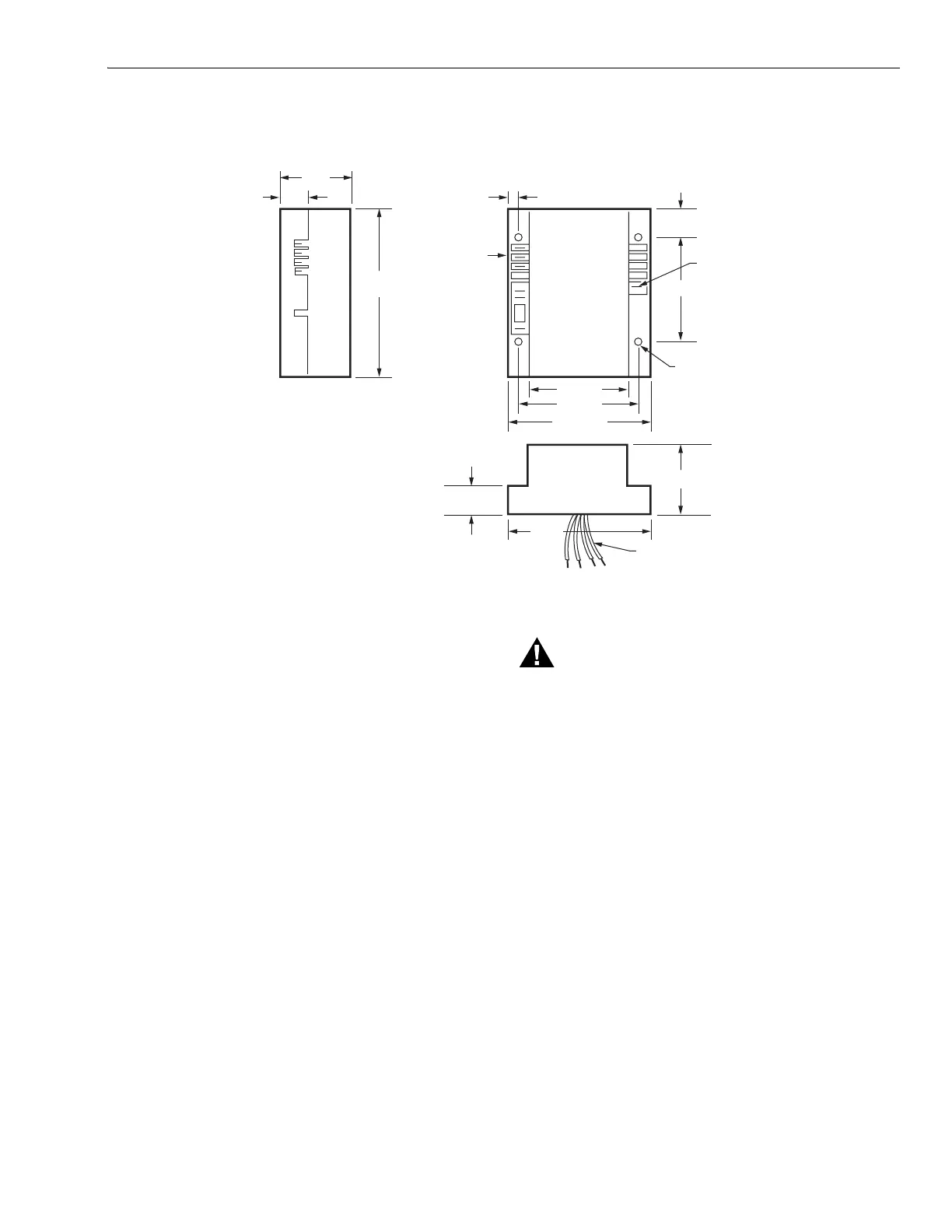

Fig. 1. S89 dimensions in in. (mm).
INSTALLATION
When Installing This Product…
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous
condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
WARNING
Fire or Explosion Hazard.
Can cause severe injury, death or property
damage.
1. Disconnect power supply before wiring to avoid
electrical shock, explosion, or equipment damage.
2. If a new gas control is being installed, turn off gas
supply before starting installation. Conduct Gas
Leak Test after gas control is installed.
3. In an LP gas installation, remember that LP gas is
heavier than air and will not vent upward naturally.
Do not operate electric switches, lights, or
appliances until you are sure that work area is free
of gas.
4. Never install an S89 where water can flood, drip, or
condense on the device. It can malfunction if it gets
wet.
5. Never try to use a device that has been damp or
wet—replace it.
6. If the control might be exposed to water or moisture,
install it in a suitable waterproof enclosure.
7. Any replacement S89 must have the same or
shorter lockout time and the same or longer delay
timing as the original control.
Replacement Application Requirements
If this is a replacement application, follow the appliance
manufacturer instructions, if available. The manufacturer
usually provides wiring diagrams, start-up and checkout
7/8 (22)
3-3/8 (86)
3-3/8 (86)
4-1/16 (103)
7/8 (22)
4-1/16
(103)
2 (51)
M2331
12 (305) LEADS
5-13/16
(132)
2 (51)
7/8
(22)
2-7/8 (73)
1/4 IN. Q.C.
3/8 (86)
HOLE (4)
1/4 IN. Q.C. (1)
3/16 IN. Q.C. (5)
3/8 (10)
