Honeywell ScanPal EDA50 User Manual

6. Terminal configurations
56 ScanPal EDA50 Enterprise Hybrid Device User Guide
Network communication
Users can connect the terminal to wireless and wired networks. Users can get
the terminal connected via the following ways:
• 802.11 radios
• Bluetooth
• USB
Connecting to Wi-Fi networks
When communicating through wireless networks, ScanPal EDA50 transfer data
through 802.11 radios. Before connecting to a Wi-Fi network, users need to
know the Security Protocol of the network and the certificates it required.
Usually, 802.11 radio is diabled by default.
1. Enter Settings, slide the WLAN switch to enable it.

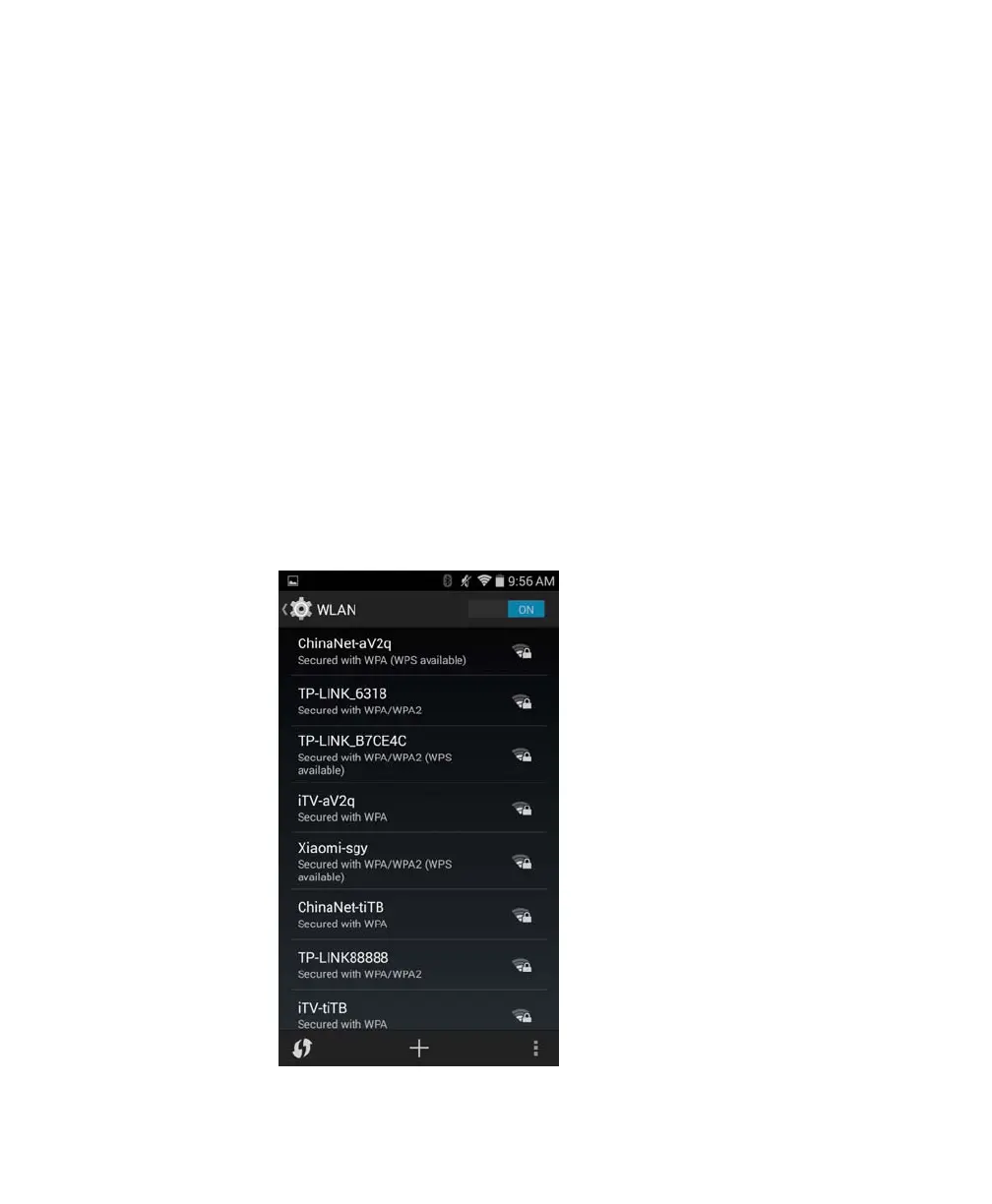

2. When the WLAN switch turns blue, tapping the WLAN bar will display the
detected network list.

Honeywell ScanPal EDA50 Specifications

General

Screen shape	Flat
Second display	No
Display diagonal	5 \
Display resolution	1280 x 720 pixels
Orientation sensor	-
Processor cores	4
Processor model	MSM 8916
Processor family	Qualcomm Snapdragon
Processor frequency	1.2 GHz
RAM capacity	2 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Internal storage capacity	8 GB
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
2G standards	EDGE, GSM
3G standards	WCDMA
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
SIM card capability	Single SIM
Mobile network generation	3G
Subscription type	No subscription
USB version	2.0
USB connector type	Micro-USB
HDMI ports quantity	0
Platform	Android
App distribution platform	Google Play
Operating system installed	Android 4.4.4
Form factor	Bar
Product color	Black
Talk time (3G)	- h
Battery capacity	4000 mAh
Battery recharge time	4 h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	18 mm
Width	153.5 mm
Height	78.9 mm
Weight	270 g
