STANDARD OR ANGLE MOUNTING INSTRUCTIONS

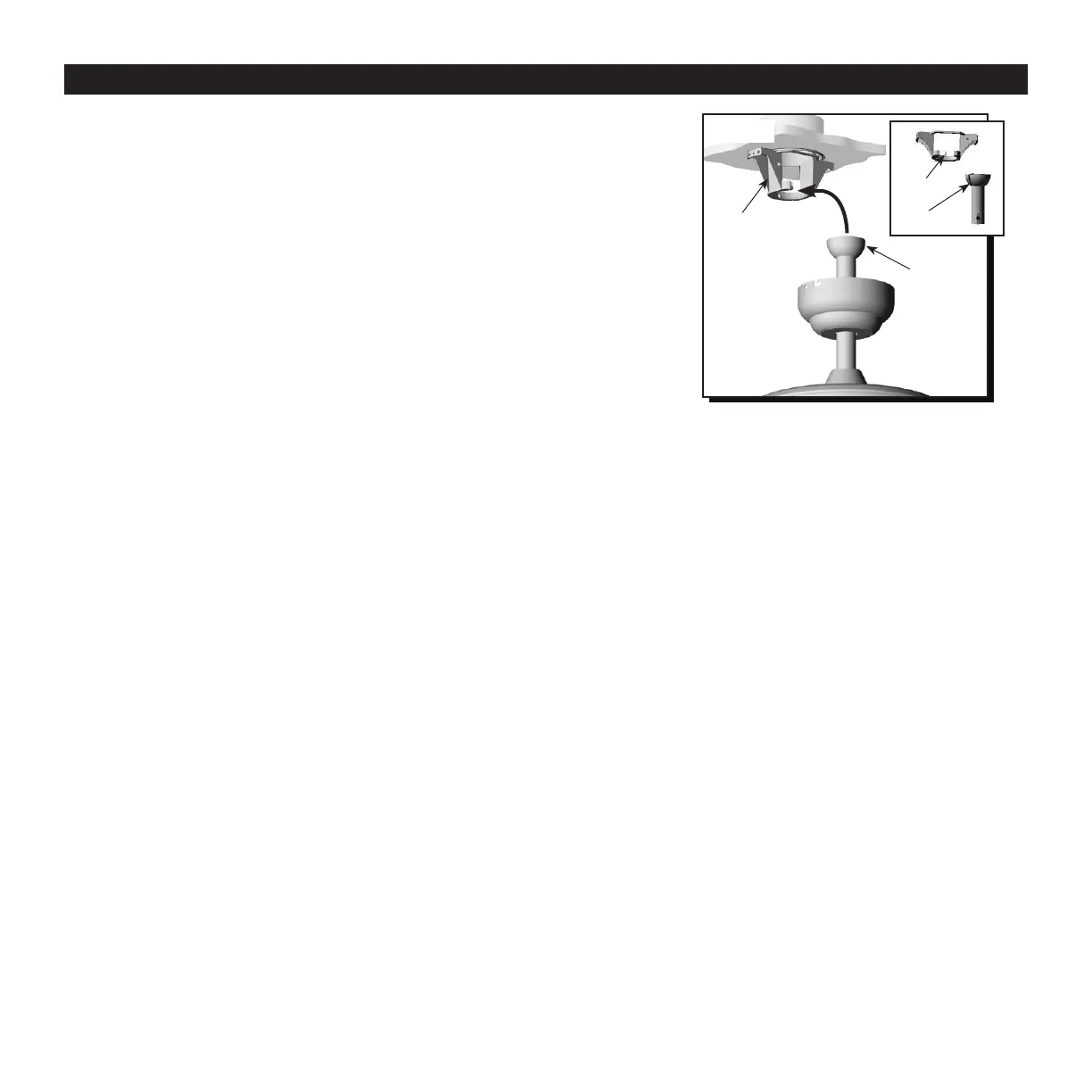

12. Install the ball end of the downrod into the
mounting bracket opening. Align the slot in the ball
with the tab in the mounting bracket. The downrod
should not rotate if installed correctly (Fig. 12).
Mounting
Bracket
Downrod
Ball
