CLOSEMOUNT INSTRUCTIONS

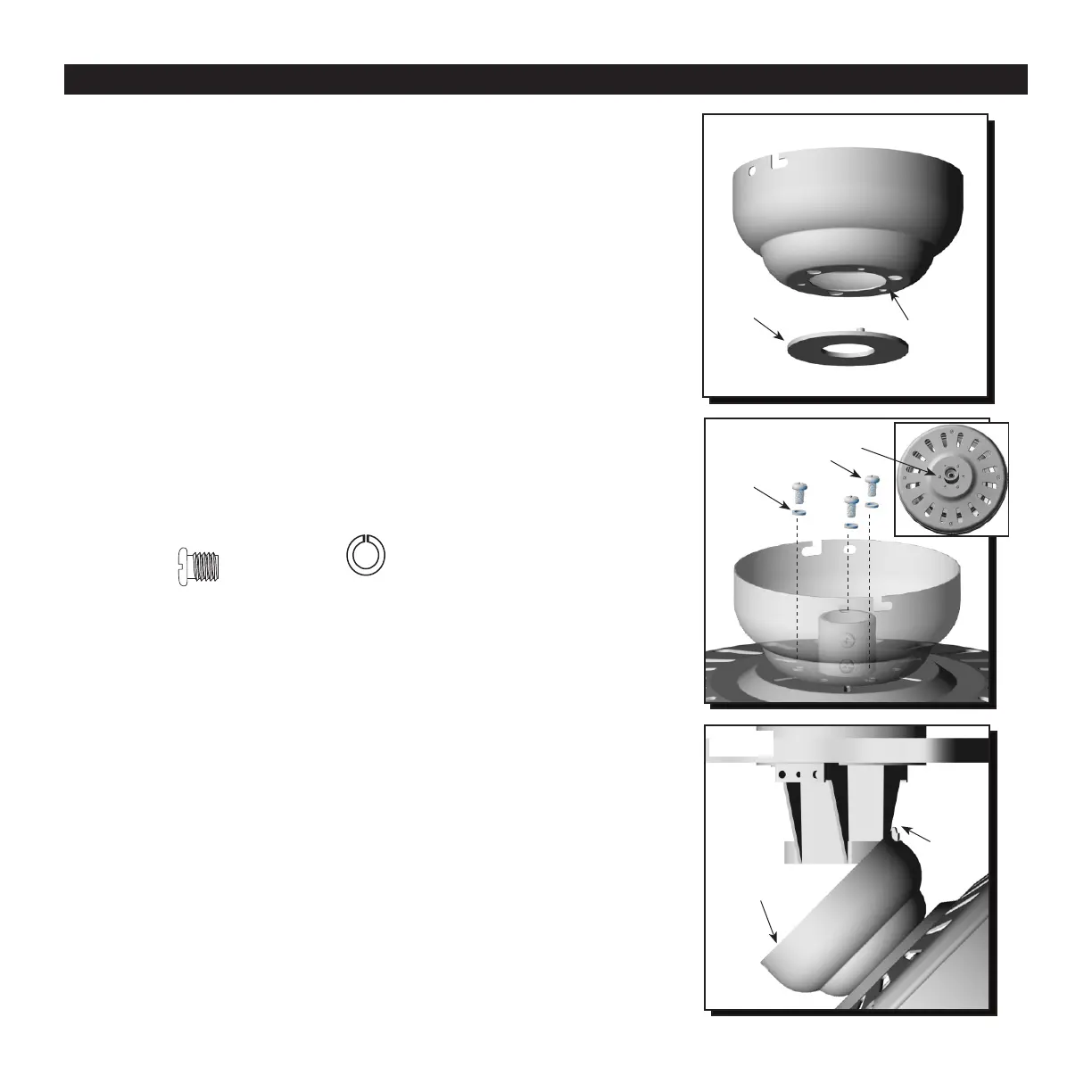

13. Remove the canopy cover from the bottom of the
canopy (Fig. 13)
Helpful Hint: The downrod and canopy cover are not
used in this type of installation.
15. Raise the fan and place the canopy on the
mounting bracket hook for wiring (Fig. 15).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 13
Fig. 15
Closemount Screw
14. Align the canopy with the closemount screw holes
in the top of the motor housing. Secure the canopy
to the top of the motor housing by reinstalling the
closemount screws and spring washers into the top
of the motor housing (Fig. 14).
Spring Washer
