T410A,B ELECTRIC HEAT THERMOSTATS
68-0145EF 2
ORDERING INFORMATION
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the
TRADELINE® Catalog or price sheets for complete ordering number.
If you have additional questions, need further information, or would like to comment on our products or services, please write:
1. Your local Home and Building Control Sales Office (check white pages of your phone directory).
2. Home and Building Control Customer Relations
Honeywell, 1885 Douglas Drive North
Minneapolis, Minnesota 55422-4386
In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.
International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,
Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
Differential:
3°F (2°C), nonadjustable.
Switching:
Micro Switch snap-acting switch.
Mounting:
Mounts directly on NEMA standard 2 x 4 in. vertical outlet box,
or 4 x 4 in. outlet box if used with ring adapter (ordered
separately), using 6-32 Robertson slotted screws.
Dimensions:
See Fig.1.
Approvals:
Underwriters Laboratories Inc. Listed: File No. E47434,
Guide No. XAPX.
Canadian Standards Association Certified: File No. LR1322.
Accessory:
272804A Range Stop and Locking Cover Assembly: Includes
locking cover screws, Tinnerman clips, wrench and range
stops—two plastic pins to insert inside cover for field-selec-
tion of minimum and maximum temperature settings.

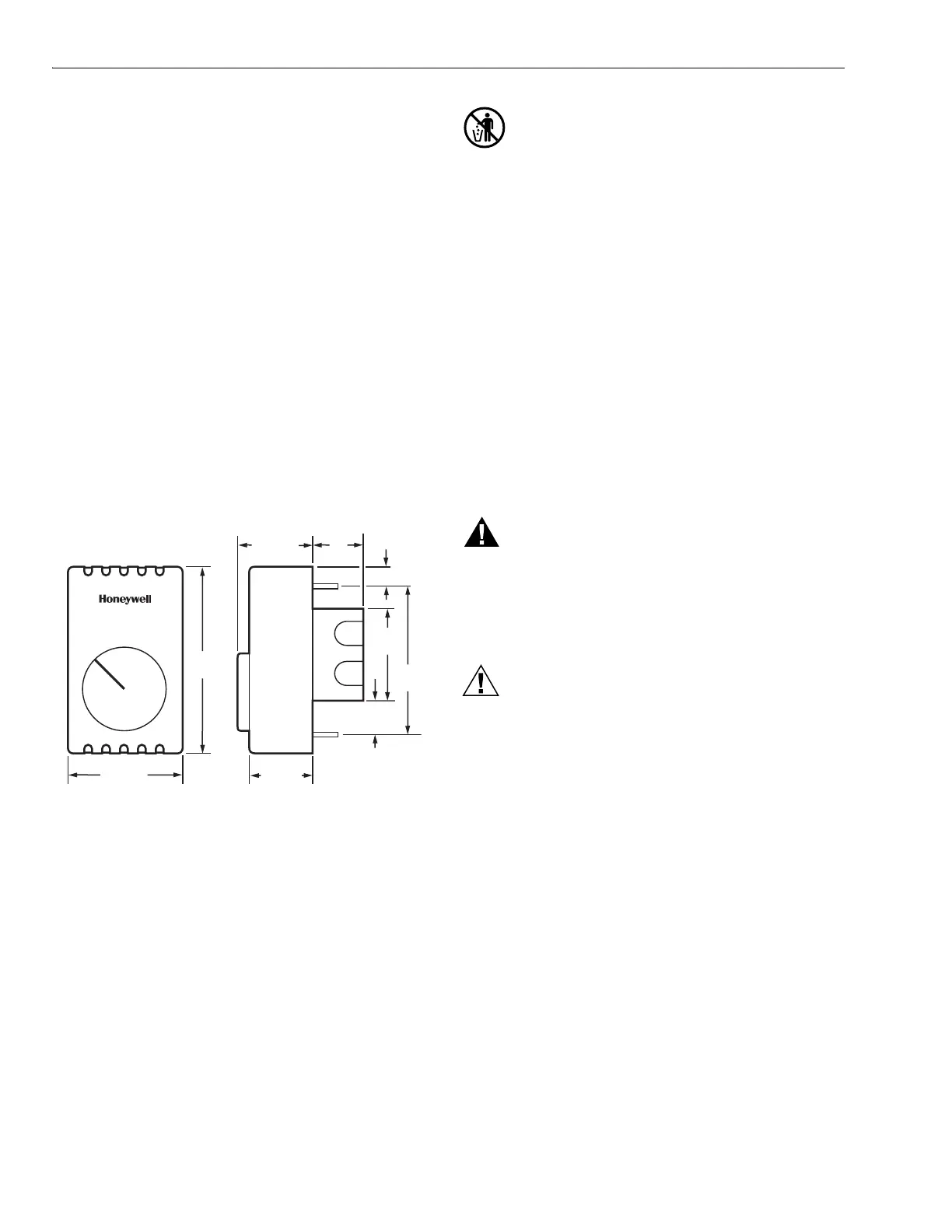

Fig. 1. T410 approximate dimensions in in. (mm).
MERCURY NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do not place your old control
in the trash. Dispose of properly.
Contact your local waste management authority for
instructions regarding recycling and the proper
disposal of an old control.
INSTALLATION
When Installing this Product…
1. Read these instructions carefully. Failure to follow these
instructions could damage the product or cause a
hazardous condition.
2. Check the ratings on the product to make sure the
product is suitable for your application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
WARNING
HIGH VOLTAGE CONTROL.
ELECTRICAL SHOCK HAZARD.
Follow local codes and ordinances when installing this
thermostat. Improper handling can cause serious
injury or death.
CAUTION
1. Disconnect power supply to prevent electrical shock
or equipment damage.
2. When connecting with aluminum conductors, use
CO/ALR solderless wire connectors to avoid fire
hazard.
3. To avoid damaging the sensing element, do not
remove thermostat cover until wiring is complete.
M5802A
FRONT VIEW SIDE VIEW
•
4
0
•
5
0
•
6
0
•
7
0
•
8
0
•
°F
1-1/2 (38)
3/4
(19)
5/8 (14)
2-1/8
(54)
3-5/16
(83)
1-3/8
(35)
1-1/8 (29)
2-3/4 (70)
4-1/2
(115)
