T775R SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLER
62-0249—13 16

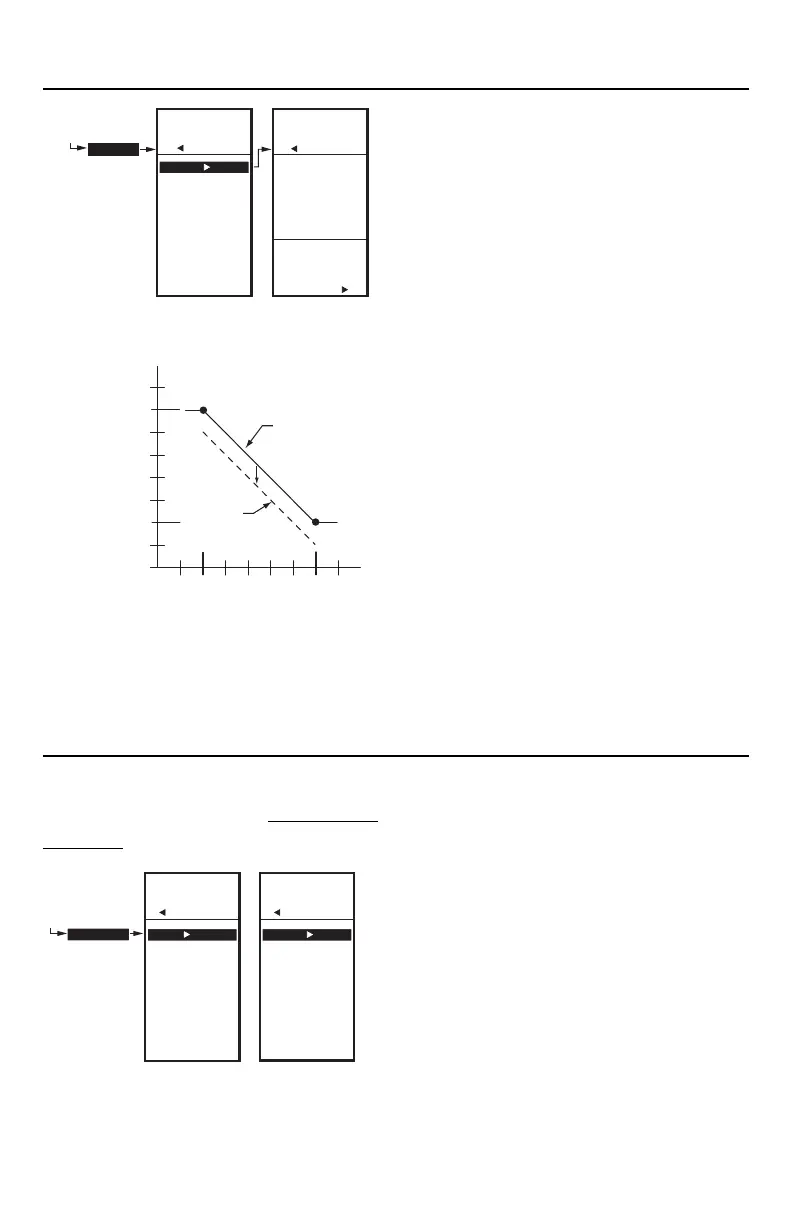

Fig. 35. Program - Setpoint Offset
(Subsequent Outputs only).
Fig. 36. Reset Curve with Offset for Subsequent
Outputs.
1.2.9. Subsequent Outputs
For the subsequent outputs (MOD 2, Relay 2, Relay 3,
etc. (if they are configured for Reset), the Offset
parameter displays on the Program menu as shown in
Fig. 35.
1.2.9.1 SETPOINT OFFSET (subsequent
outputs only)
This value is the number of degrees plus (+) or minus (-)
that you want the temperature to be offset from the first
output’s setpoint. For example (as shown in Fig. 36), If
you want the MOD 2 setpoint to be 10° F (-12° C) less
than the MOD 1 setpoint, enter -10° F (-12° C).
1. From the menu, use the  and  buttons to high-
light OFFSET.
2. Press the  button to display the value.
3. Use the  and  buttons to increase/decrease the
desired temperature.
OFFSET Default: 0°F (-18° C)
OFFSET Range: -150° to 150° F (-101° to 66° C)
4. Press the  button to accept the value and display
the next option.
1.2.9.2 Subsequent Outputs
Programming
To complete the programming an output, perform the
procedures in “1.2.6. DIFFERENTIAL or THROTTLING
RANGE” through “1.2.8. SETBACK OFFSET (if
configured)” beginning on page 15.
1.3. Exit Programming with Reset
When you finish programming all the outputs, press the
HOME button to leave programming mode and return to
the home screen.
This completes the programming procedure for controllers
that use Reset.
2. PROGRAMMING OUTPUTS
(RELAY AND MOD) WITH NO
RESET
Fig. 37. Program Menu.
The T775R can be programmed for Reset or No Reset.
From the factory, the T775R is programmed for No Reset.
This section describes the steps necessary to program
the controller for No Reset.
2.1. Entering Program Mode
Press the MENU button, then select PROGRAM and
press the  button to view the Program menu.
NOTE: Modulating outputs are not available on
controller models T775R2001 and
T775R2035.
PROGRAM
RELAY 2
MENU
PROGRAM
RELAY 2
OFFSET
-10
F
o
ENTER
SETPOINT
OFFSET
FOR
RELAY 2
M24321
MENU
PROGRAM
RELAY 2
OFFSET
DIFFRNTL
HEAT/COOL
SETBACK
EXIT
SENSOR B
SP MAX A1
(BOILER MAX)
SP MIN A2
(BOILER MIN)
200
140
10
RELAY 2
SETPOINT
OFFSET
-10°F
190
20
30 40 50 60
70
°F80
150
160
170
210
220
180
°F
RESET B1
(OUTSD MIN)
RESET B2
(OUTSD MAX)
S
E
N
S
O
R
A
M24328
RELAY 1
SETPOINT
OR
MENU
PROGRAM
MENU
PROGRAM
RELAY 1
RELAY 2
RELAY 3
RELAY 4
EXIT
MENU
PROGRAM
MOD 1
MOD 2
RELAY 1
RELAY 2
RELAY 3
RELAY 4
EXIT
M24302
