Honeywell THE DIGITAL ROUND T8775A - Page 2

69-1679ES—1 2

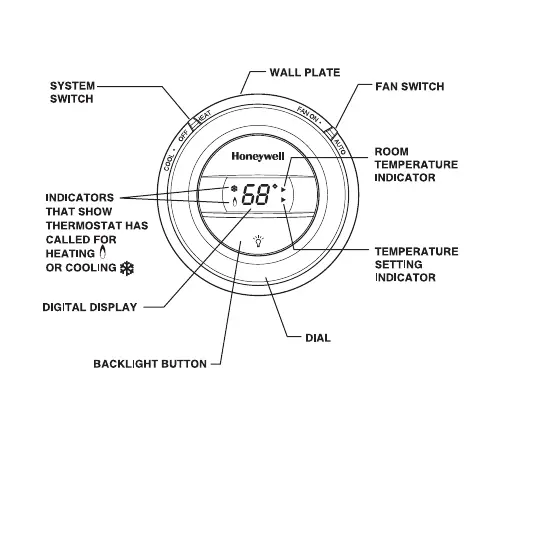

Fig. 1. T8775 Thermostat (features and operation).
ROOM
SET
DISPLAYS ROOM
OR SET TEMPERATURE
(T8775C ONLY)
SELECTS
ON/AUTO
(T8775C ONLY)
SELECTS
COOL/OFF/HEAT
SHOWS THAT THE
CURRENT ROOM
TEMPERATURE
IS DISPLAYED.
SHOWS THAT THE
CURRENT
TEMPERATURE
SETTING IS DISPLAYED.
M19470
DISPLAYS AND ADJUSTS
TEMPERATURE SETTING/TURNS
BACKLIGHT ON
