5
Mount the wire saver to a surface near the terminal block for the heating/cooling system.
a. Locate the terminal block in your heating/cooling
system to which the thermostat wires are attached.
You may need to open or remove the front
panel/door. If you are unsure how to do this,
refer to your heating/cooling system
documentation.
b. Peel paper from one side of the included two-
sided mounting tape.
c. Attach the sticky side to a suitable surface
(such as the furnace wall or floor) that is close
enough to the terminal block for the shortest
wire to reach the wire saver.

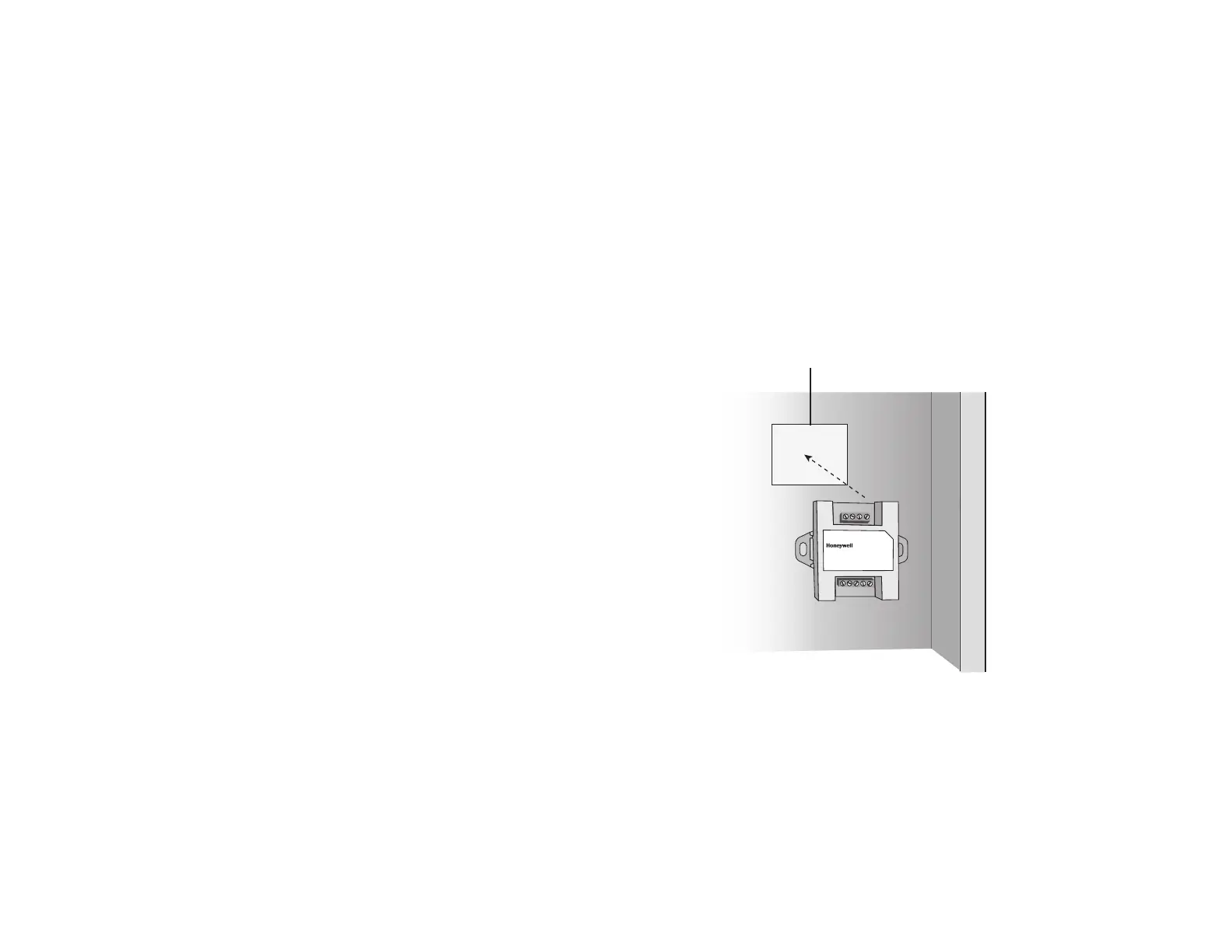

d. Peel the paper from the outer surface of the
mounting tape and attach the wire saver with
the terminal block labeled THERMOSTAT at the top.
Step 3 Mount the wire saver
M35224
Rc K C W-O/B
Rc Y G C W-O/B
THP9045A 1023
1326
http://yourhome.honeywell.com
1-800-546-1502
EQUIPMENT
THERMOSTAT
Two-sided mounting tape
To Next Page
