V4043, V4044 VALVES; V8043, V8044 ZONE VALVES
95-6983—11 2

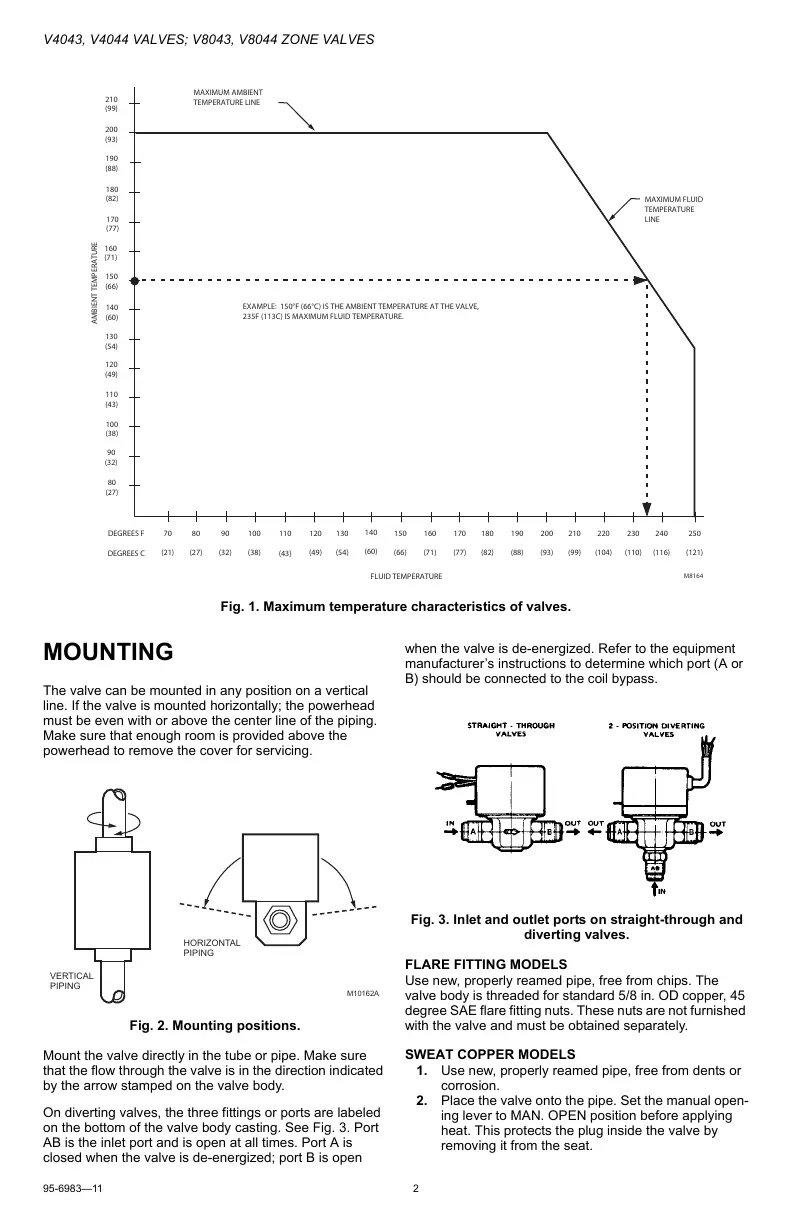

Fig. 1. Maximum temperature characteristics of valves.
MOUNTING
The valve can be mounted in any position on a vertical
line. If the valve is mounted horizontally; the powerhead
must be even with or above the center line of the piping.
Make sure that enough room is provided above the
powerhead to remove the cover for servicing.
Fig. 2. Mounting positions.
Mount the valve directly in the tube or pipe. Make sure
that the flow through the valve is in the direction indicated
by the arrow stamped on the valve body.
On diverting valves, the three fittings or ports are labeled
on the bottom of the valve body casting. See Fig. 3. Port
AB is the inlet port and is open at all times. Port A is
closed when the valve is de-energized; port B is open
when the valve is de-energized. Refer to the equipment
manufacturer’s instructions to determine which port (A or
B) should be connected to the coil bypass.
Fig. 3. Inlet and outlet ports on straight-through and
diverting valves.
FLARE FITTING MODELS
Use new, properly reamed pipe, free from chips. The
valve body is threaded for standard 5/8 in. OD copper, 45
degree SAE flare fitting nuts. These nuts are not furnished
with the valve and must be obtained separately.
SWEAT COPPER MODELS
1. Use new, properly reamed pipe, free from dents or
corrosion.
2. Place the valve onto the pipe. Set the manual open-
ing lever to MAN. OPEN position before applying
heat. This protects the plug inside the valve by
removing it from the seat.
EXAMPLE: 150°F (66°C) IS THE AMBIENT TEMPERATURE AT THE VALVE,
235F (113C) IS MAXIMUM FLUID TEMPERATURE.
MAXIMUM AMBIENT
TEMPERATURE LINE
MAXIMUM FLUID
TEMPERATURE
LINE
AMBIENT TEMPERATURE
FLUID TEMPERATURE
M8164
210
(99)
200
(93)
190
(88)
180
(82)
170
(77)
160
(71)
150
(66)
140
(60)
130
(54)
120
(49)
110
(43)
100
(38)
90
(32)
80
(27)
DEGREES F
DEGREES C
70
(21)
80
(27)
90
(32)
100
(38)
110
(43)
120
(49)
130
(54)
140
(60)
150
(66)
160
(71)
170
(77)
180
(82)
190
(88)
200
(93)
210
(99)
220
(104)
230
(110)
240
(116)
250
(121)
M10162
A
VERTICAL
PIPING
HORIZONTAL
PIPING

Honeywell V4043 Specifications

General

Body Material	Brass
Maximum Pressure	125 psi
Frequency	60 Hz
Operating Pressure	125 psi
Maximum Operating Pressure	125 psi
Actuator Material	Plastic
End Connection Type	NPT
Voltage	24 VAC
Size	3/4 in., 1 in., 1-1/4 in.
Connection Size	3/4", 1", 1-1/4"
