Calibration Handbook
76 Searchline Excel

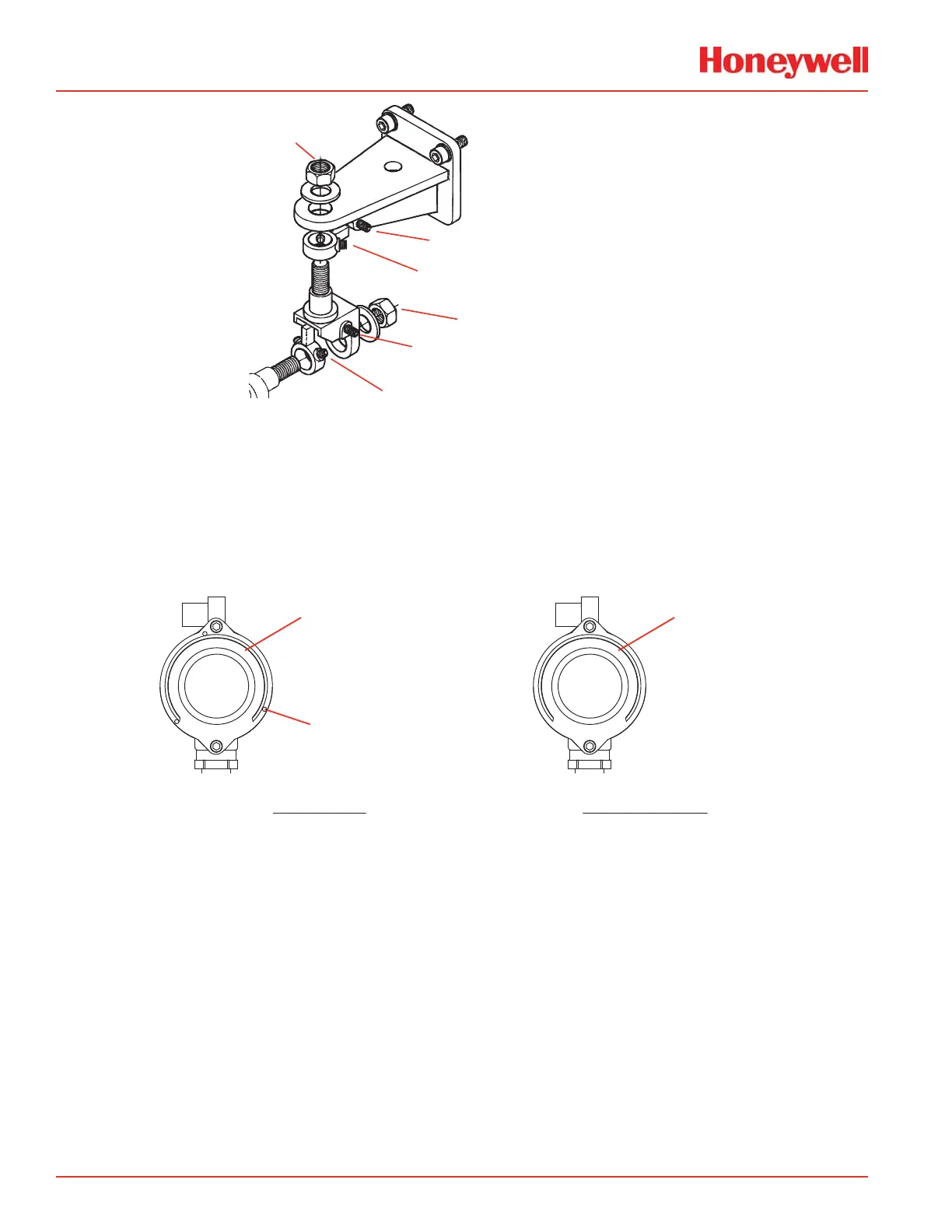

Clamp Nut
Mounting Bracket Adjusting Screw (2x)
Adjustment Clamp Lock Screw (2x)
Clamp Nut
Pivot Block Adjusting Screw (2x)
Adjustment Clamp Lock Screw (2x)
4. Clamp nuts and screws should not need further tightening
5. Additional tightening will affect fine adjustment and should be avoided
6. Unit can still be moved by adjustment screws
7. Before adjustment check front face of units to determine telescope type. Trident-type Excel units have
three small pads, non-Trident types do not.
Pads provide contact points for alignment telescope assembly datum insures accurate telescope
attachment so alignment is precise.
Trident-type
Alignment
Telescope Assembly
Mounting Pad (3x)
Excel Unit
Excel Unit
Non-trident-type
To Next Page
