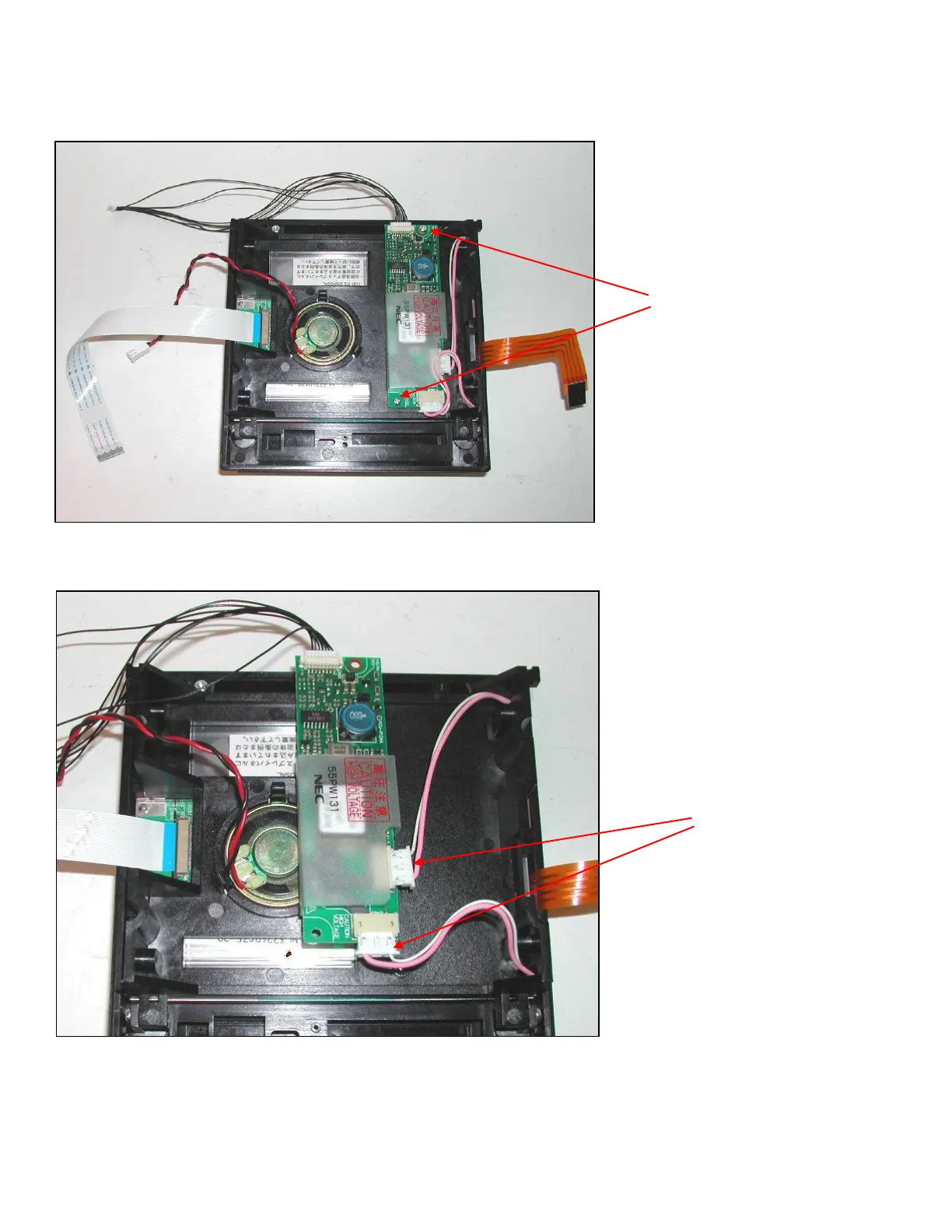

Remove the 2 self tapping screws that secure the inverter to the front surround assembly See Fig 4.
Lift the inverter and disconnect the two high voltage connectors. See Fig 5
The inverter and cable can now be removed from the assembly.
Fig 4
Remove the
2 inverter
fixing screws
Fig 5
Unplug the 2
HV leads
