FINAL INSTALLATION
Figure 5.2Figure 5.1 Figure 5.3
Mounting
Bracket Screw
Canopy
J-shaped
Slot
Round
Hole
1. Use wire connnectors to connect household supply and fan wires according to the diagram (Figure 5.1) and the following
steps:
• Connect the green wires from the downrod and mounting bracket to the bare/green (ground) supply wire.
• Connect the white wire from the fan to the white (neutral) supply wire.
• Connect the black wire from the fan to the black (hot) supply wire.
Important: After the connections have been made, the connected wires should be turned upward and pushed carefully up
into the outlet box. Place the Black and White wire connections on opposite sides of the outlet box.
2. Align the canopy over the loosened mounting bracket screws. Place the J-shaped slot of the canopy onto the mount bracket
screws and rotate clockwise (Figure 5.2).
3. Secure the canopy with the two previously removed mounting bracket screws. Tighten all the mounting bracket screws
securely (Figure 5.3).
Wire Connector
Figure 4.2Figure 4.1 Figure 4.3
Braided Cable
Brace
Open Loop Secondary Support Screw
Support
Washer
Spring
Washer
Secondary
Support Screw

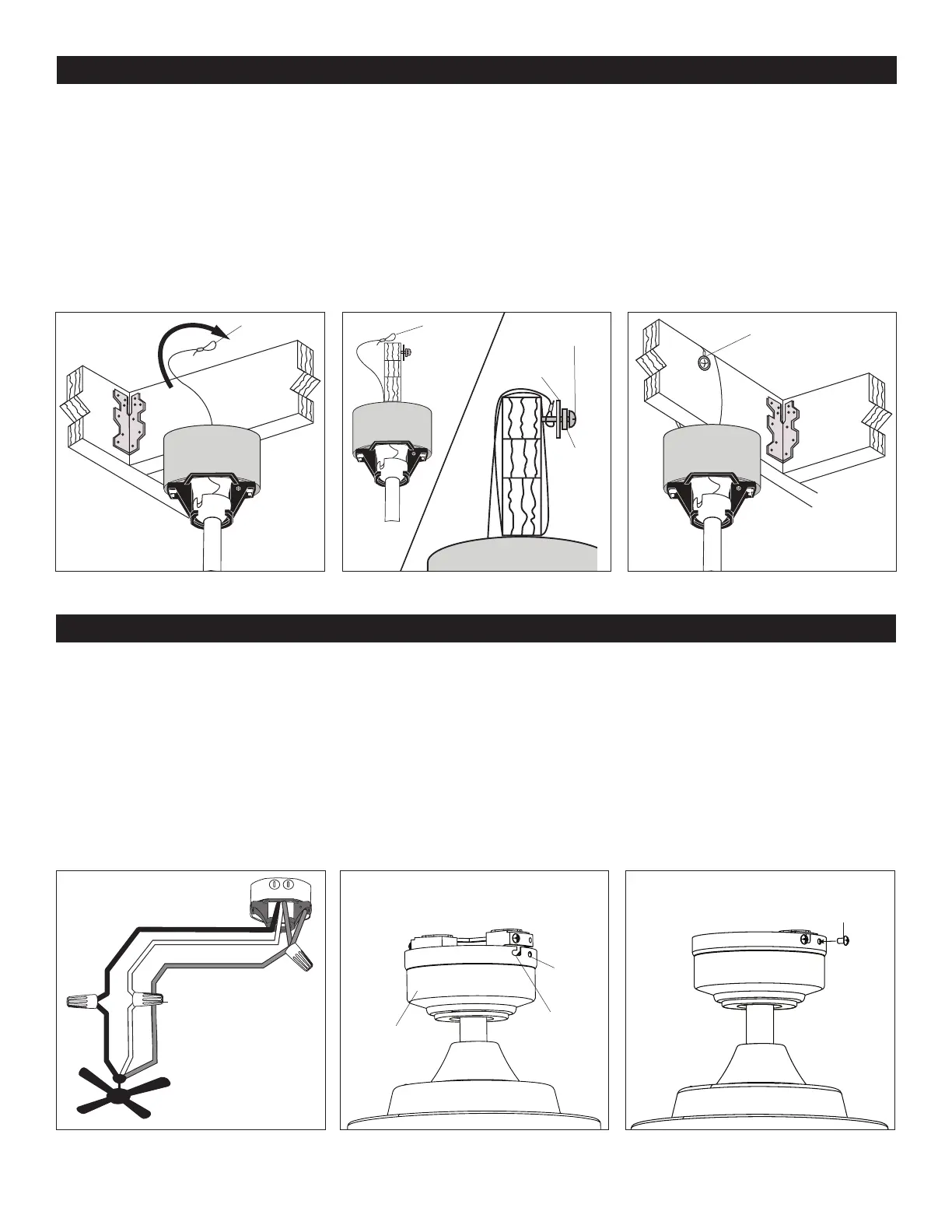

SECONDARY HANGING SYSTEM INSTRUCTIONS
1. WARNING: Secondary support is required for this product. Failure to follow the steps below could result in property damage
and/or personal injury. Feed the loop of the braided cable, preassembled to the motor assembly, up through the outlet box
mounted in the ceiling (Figure 4.1).
2. Install secondary support screw, spring washer and support washer partly into the side of the brace installed in the ceiling.
Then loop the braided cable up and over the ceiling brace and place the open loop of the braided cable around the secondary
support screw. Note: The ceiling support brace may not be accessible from below. If not, it must be accessed from above.
Important: The braided cable must make a complete circle around the support brace to secure the fan (Figure 4.2).
3. Tighten the secondary support screw, securing the braided cable (Figure 4.3).
For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System. If
desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION.
For installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
