MOTOR
PULLEY

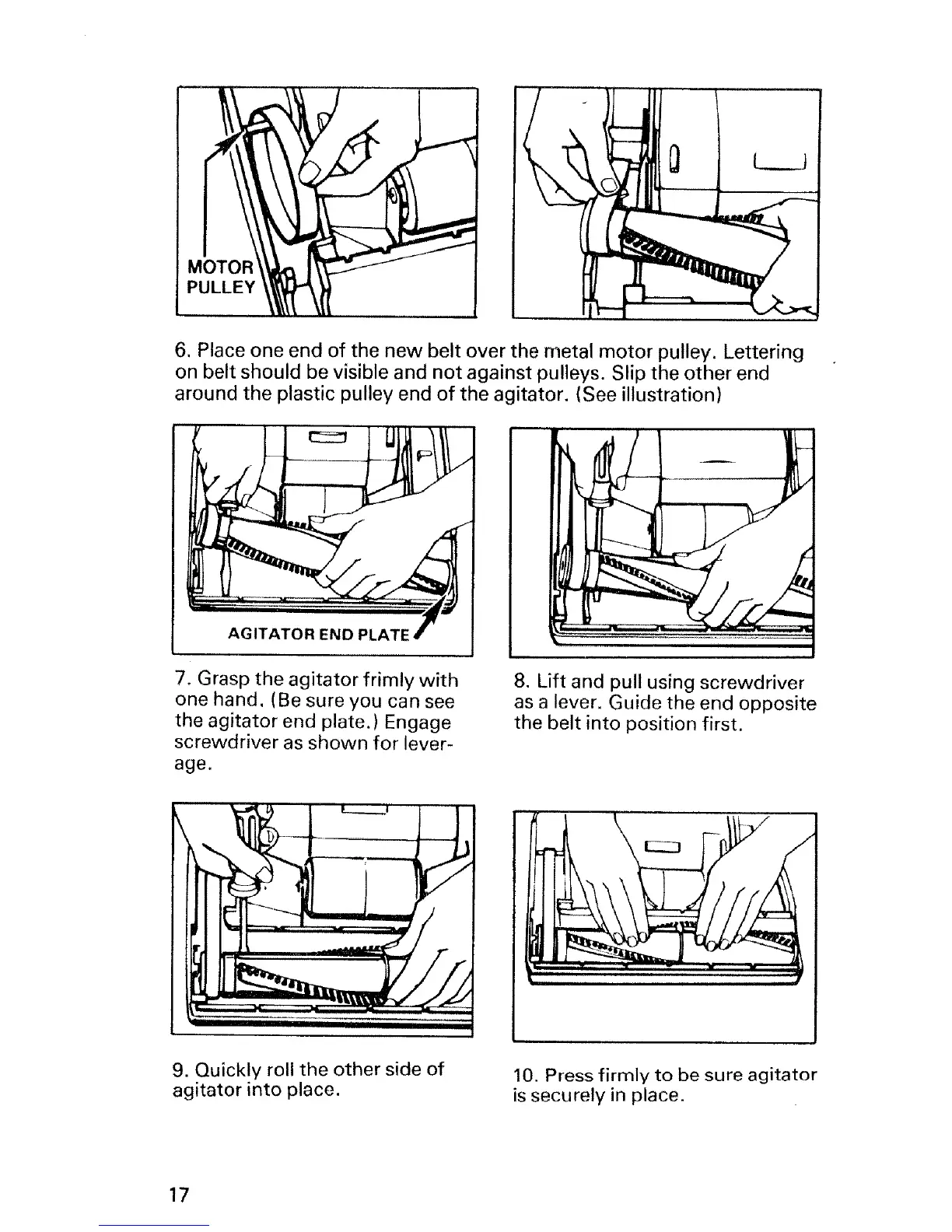

6. Place one end of the new belt over the metal motor pulley. Lettering
on belt should be visible and not against pulleys. Slip the other end
around the plastic pulley end of the agitator. (See illustration)
AGITATOR END PLATE
7, Grasp the agitator frimly with
one hand. (Be sure you can see
the agitator end plate,) Engage
screwdriver as shown for lever-
age,
8. Lift and pull using screwdriver
as a lever. Guide the end opposite
the belt into position first,
9. Quickly roll the other side of
agitator into place.
10, Press firmly to be sure agitator
is securely in place.
17
