2. How to use

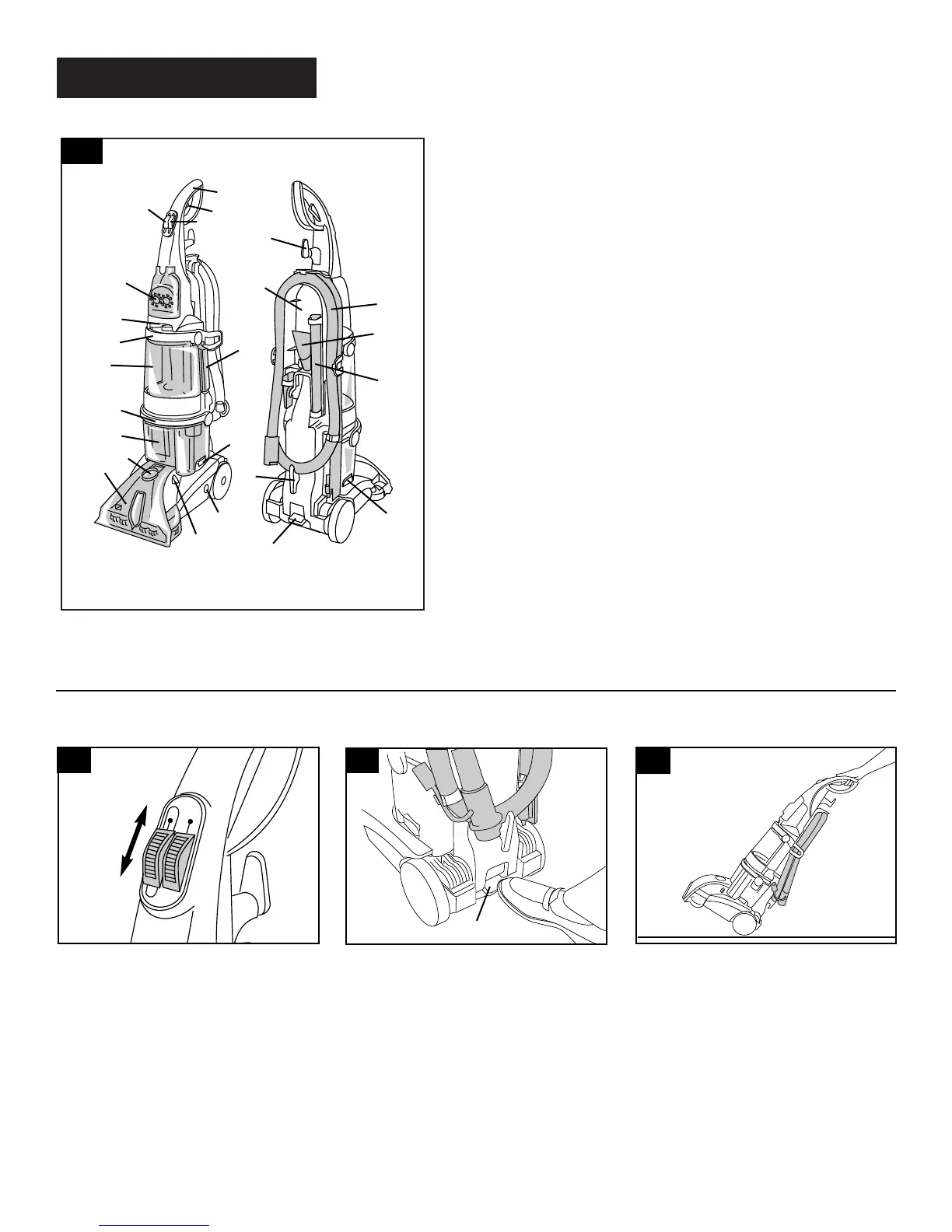

The assembled deep cleaner will look like the drawing.
Model with SpinScrub™ hand tool is shown.
2-1
2-2
1. Hand grip
2. Solution trigger: press to release cleaning
solution
3. ON/OFF switch
4. Rinse Setting switch
5. SpinScrub™ hand tool (not included with all
models)
6. Carrying handle
7. Clean water tank handle
8. Clean water tank
9. Detergent container
10. Recovery tank handle
11. Recovery tank: holds dirty solution
12. Recovery tank latches
13. Brush setting selector
14. Solution tube connection port
15. Nozzle
16. Hose connection port
17. Cord hook: rotates for quick cord release
18. Hose
19. Hose/tool caddy
20. Stair/upholstery nozzle
21. Bare floor tool (available at additional cost if
not included with your cleaner)
22. Cord/hose hook
23. Handle release pedal
This deep cleaner is intended for household
use.
Operate deep cleaner only at voltage specified
on data plate on back of cleaner. Plug deep
cleaner into a properly grounded outlet.
ON/OFF switch
To turn cleaner ON, push switch down.
To turn cleaner OFF, push switch up.
A
Handle release pedal
Step on pedal (A) to lower handle to
operating position. Handle does not lock
into a single position but “floats” to allow
convenient operation.
To transport
To move your deep cleaner from room to
room, put handle in upright and locked
position, tilt deep cleaner back on
wheels and push forward.
2-3
2-4
1
2
4
5
8
6
3
7
9
10
11
12
12
13
14
15
18
16
17
22
19
21
23
20
Deep Cleaner Description
Continued
➜
To Next Page
