1.12 This cleaner is equipped with a Quick-Change power cord (A).
To connect the extension cord to the Quick-Change power cord,
plug the socket end of extension cord into the 3-prong end of the
Quick-Change cord.
When completed, plug extension cord into properly grounded outlet
to operate. If extension cord is damaged during use, simply replace
with new extension cord (see Extension Cord Guideline on page 5).
1.11 Make sure the crevice tool (A) and
upholstery tool (B) are in their designated
places on the back of the machine.
attaCh hose
position tools
attaCh handle

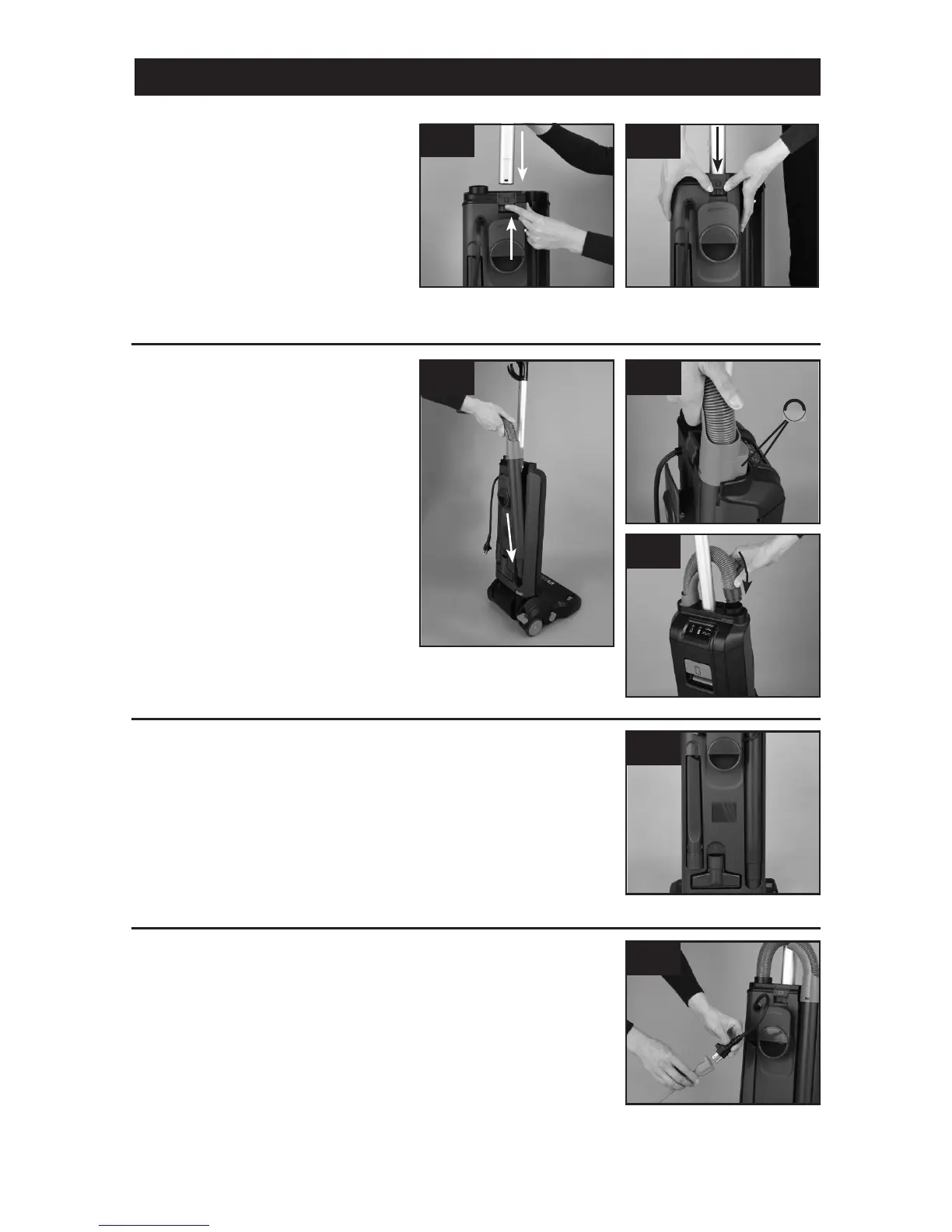

1.6 Lift the handle lock button up and
place the handle assembly down into the
opening on top of the bag housing as far
as it will go.
1.7 When the handle assembly has been
pushed down as far as it can go, press the
handle lock back down. As a precaution,
pull up on handle to confirm it has been
locked properly.
1.8 Hold wand with handle grip and hose at
a slight angle as you slide bottom end of
wand into channel on back of bag housing.
1.9 As you are lowering the wand down into
the channel, align the indicator graphic on
the handle grip with the indicator graphic
on the channel in the bag housing.
1.10 Push the opposite end of the hose (A)
into the opening in the top of the cleaner
body (B) until it clicks into place.
1. Cleaner asseMBlY (Cont’d)
power Cord asseMBlY
1.6
1.7
1.11
A
B
1.8 1.9
1.10
A
B
A
A
1.12
