Hoover LS User Manual

Attach hose holder
Position hose holder (B) onto handle by
matching tabs on rack with openings on
back of handle. Make sure holes for
bolts are aligned.
4

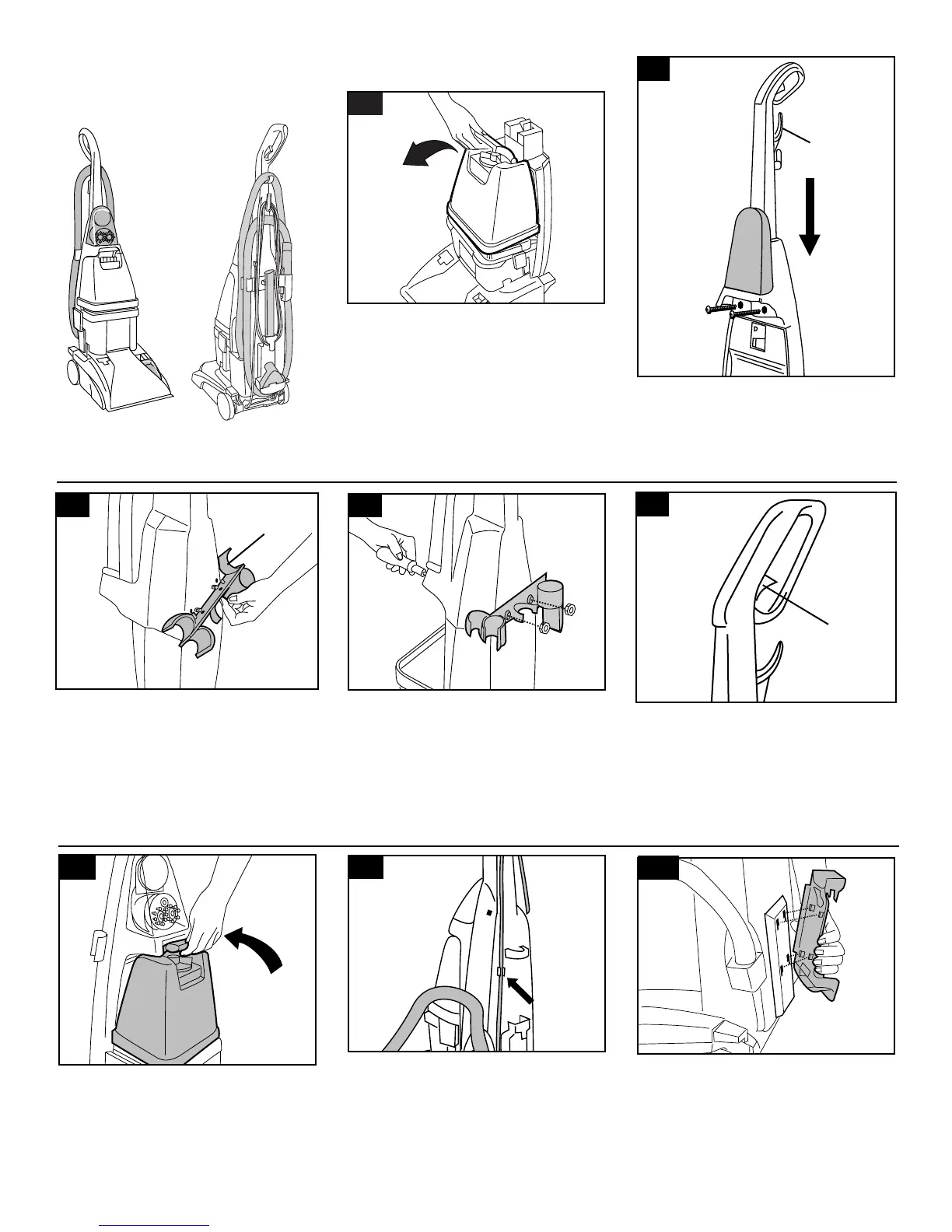

The assembled cleaner will look like
this drawing.
1-2
Attach upper handle
Remove clean solution tank (upper tank)
from deep cleaner.
With cord hook (A) to back of deep cleaner,
push upper handle down onto lower han-
dle. Push bolts into holes on front of han-
dle. If bolts will not go through hole easi-
ly handle is not pushed completely
down.
1-3
1-6
1-7
1-8
1-4
1-5
1-9
When handle sections are completely
together, squeeze trigger (C) on upper
handle to snap trigger rod In place.
A
C
B
Replace clean solution tank (upper
tank) by positioning bottom first. Press
on tank handle to snap top of tank into
place.
Press cord into cord clip on back of
handle. Pull cord tight.
Place nuts in recessed areas on back
of hose holder. Hold each nut in place
while tightening each bolt securely
(from the front of the handle) with a
Phillips screwdriver.
Only two nuts are needed on this
model. The extra nut is not required but
has been provided for your conve-
nience.
Attach tool holder
Remove tool and taped screw from
holder.
Insert projections on rack into slots on
back of cleaner.
Assemble handle

Hoover LS Specifications

General

Brand	Hoover
Model	LS
Category	Vacuum Cleaner
Language	English
