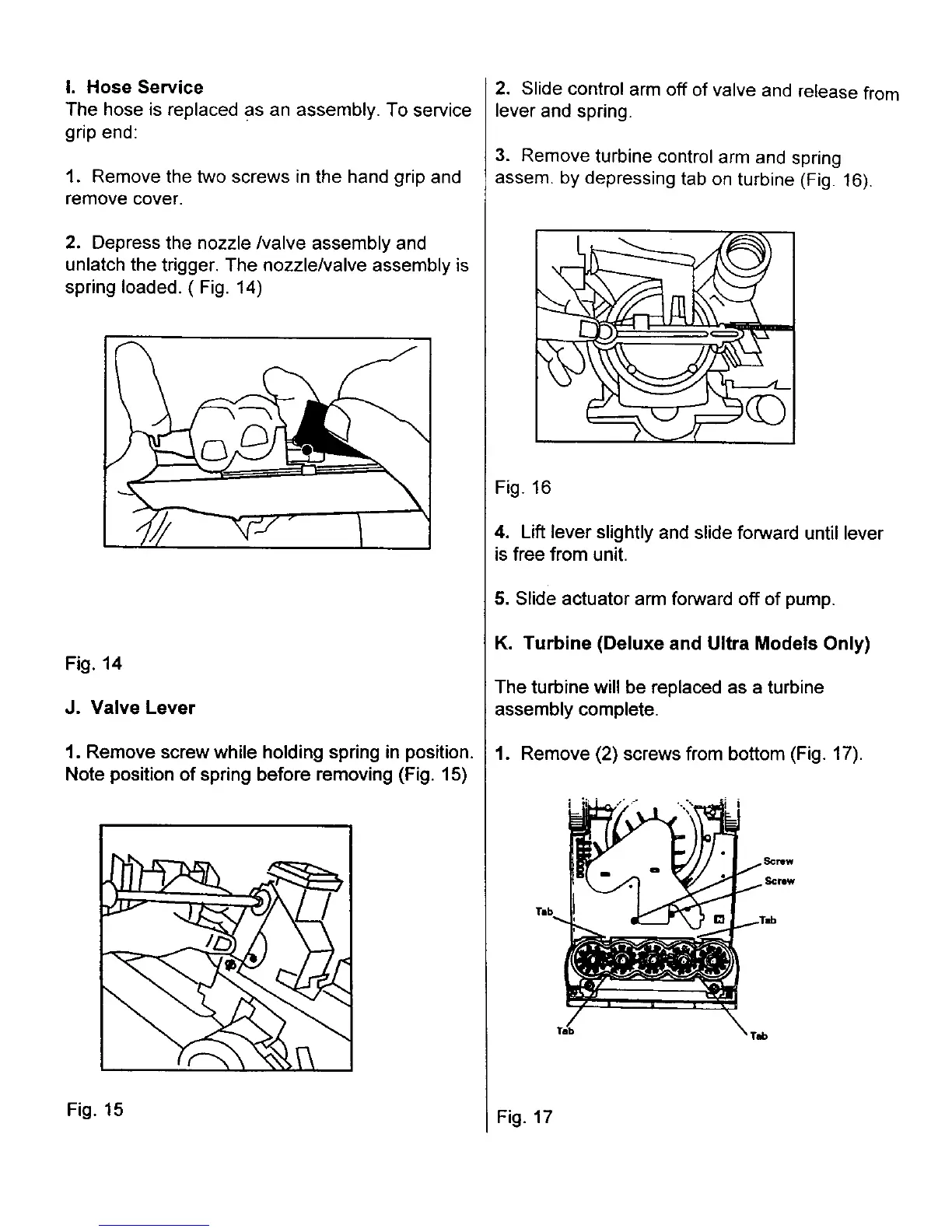

I. Hose Service
The hose is replaced as an assembly. To service
grip end:
1. Remove the two screws in the hand grip and
remove cover.
2. Depress the nozzle/valve assembly and
unlatch the trigger. The nozzle/valve assembly is
spring loaded. ( Fig. 14)
Fig. 14
J. Valve Lever
1. Remove screw while holding spring in position.
Note position of spring before removing (Fig. 15)
2. Slide control arm off of valve and release from
lever and spring.
3. Remove turbine control arm and spring
assem by depressing tab on turbine (Fig. 16).
Fig. 16
4. Lift lever slightly and slide forward until lever
is free from unit.
5. Slide actuator arm forward off of pump.
K. Turbine (Deluxe and Ultra Models Only)
The turbine will be replaced as a turbine
assembly complete.
1. Remove (2) screws from bottom (Fig. 17).
I Screw
,_* Screw
Fig. 15 Fig. 17
