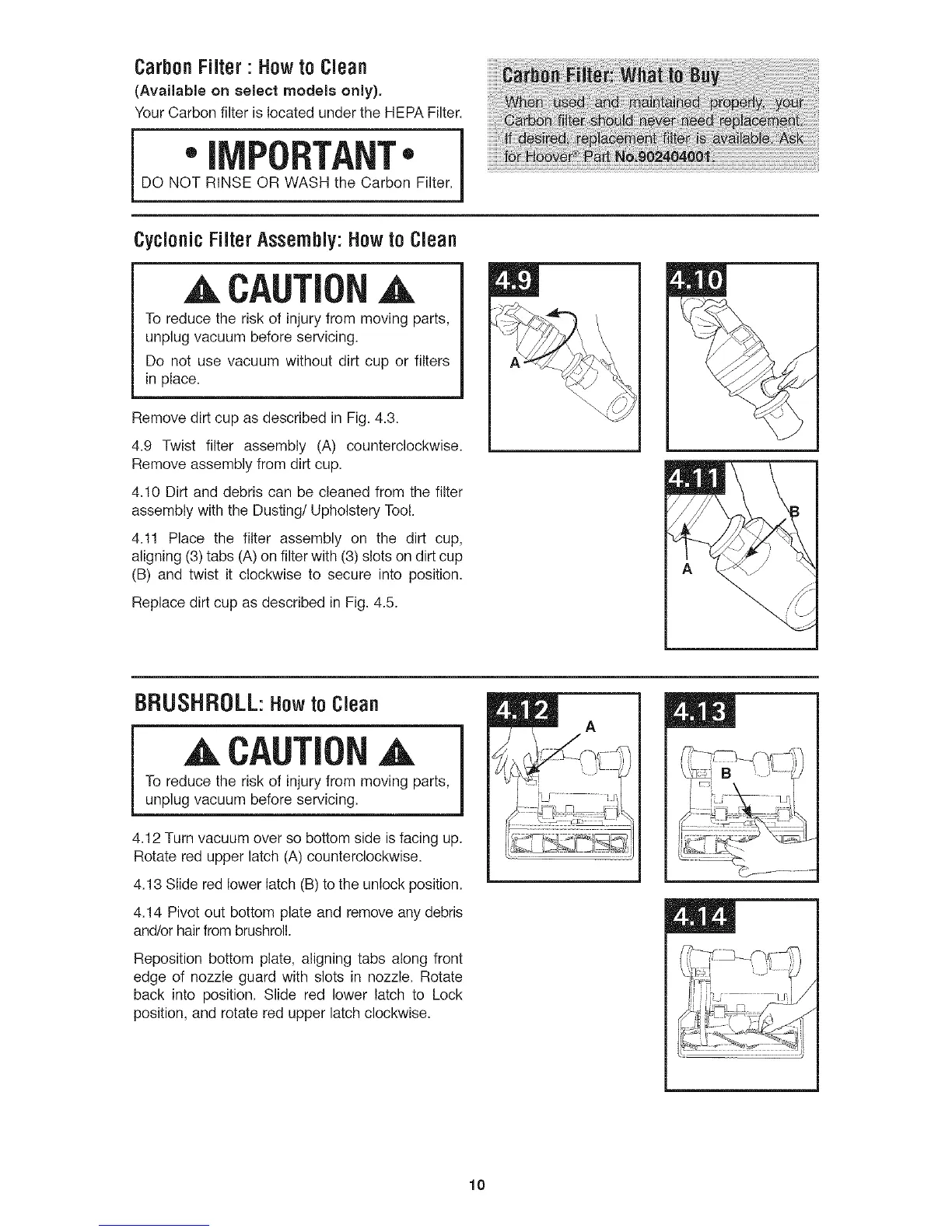

CarbonFilter" Howto Clean
(Available on select models only).
Your Carbon filter is located under tile HEPA Filter.
• IMPORTANT" 1
DO NOT RINSE OR WASH the Carbon Filter.
Cyclonic FilterAssembly:Howto Clean
A CAUTIONA
To reduce the risk of injuryfrom moving parts,
unplug vacuum before servicing.
Do not use vacuum without dirt cup or filters
in place.
Remove dirt cup as described in Fig. 4.3.
4.9 Twist filter assembly (A) counterclockwise.
Remove assembly from dirt cup.
4.10 Dirt and debris can be cleaned from the filter
assembly with the Dusting/Upholstery Tool.
4.11 Place the filter assembly on the dirt cup,
aligning (3) tabs (A) on filter with (3) slots on dirt cup
(B) and twist it clockwise to secure into position.
Replace dirt cup as described in Fig. 4.5.
BRUSHROLL:HowtoClean
A CAUTIONA
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
4.12 Turn vacuum over so bottom side is facing up.
Rotate red upper latch (A) counterclockwise.
4.13 Slide red lower latch (B) to the unlock position.
4.14 Pivot out bottom plate and remove any debris
and/orhair from brushroll.
Reposition bottom plate, aligning tabs along front
edge of nozzle guard with slots in nozzle. Rotate
back into position. Slide red lower latch to Lock
position, and rotate red upper latch clockwise.
